MELLIZO ECOWATT

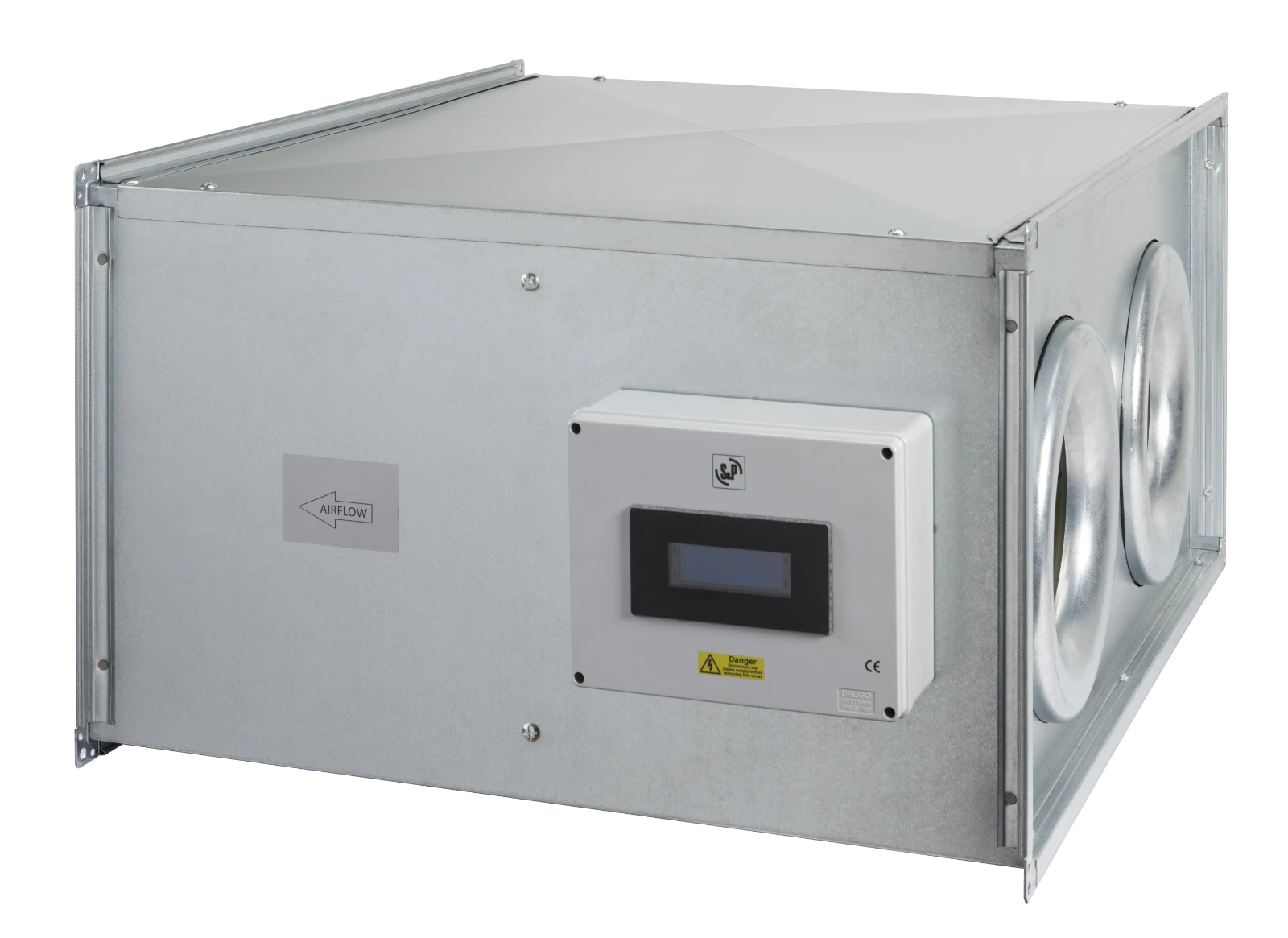

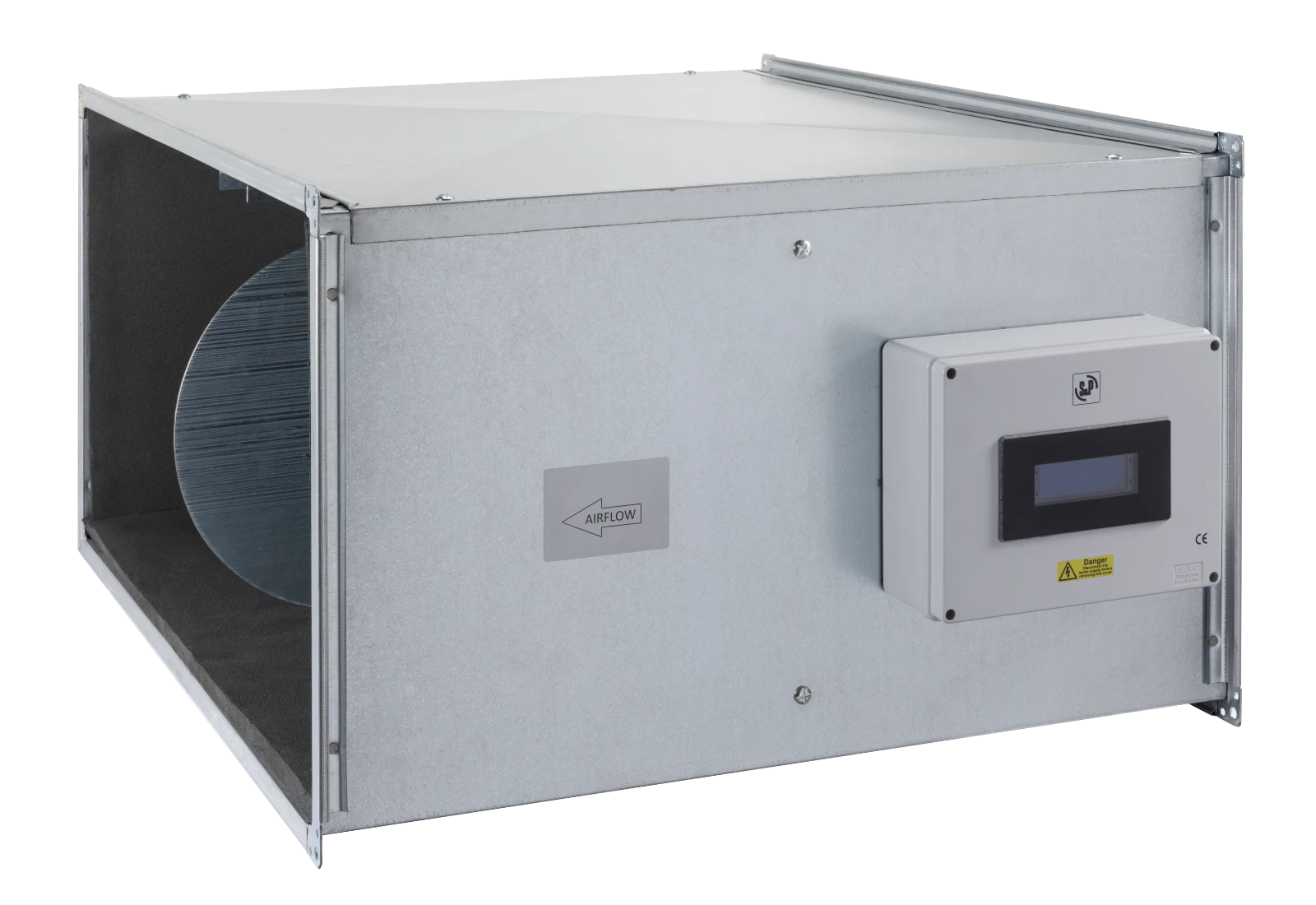

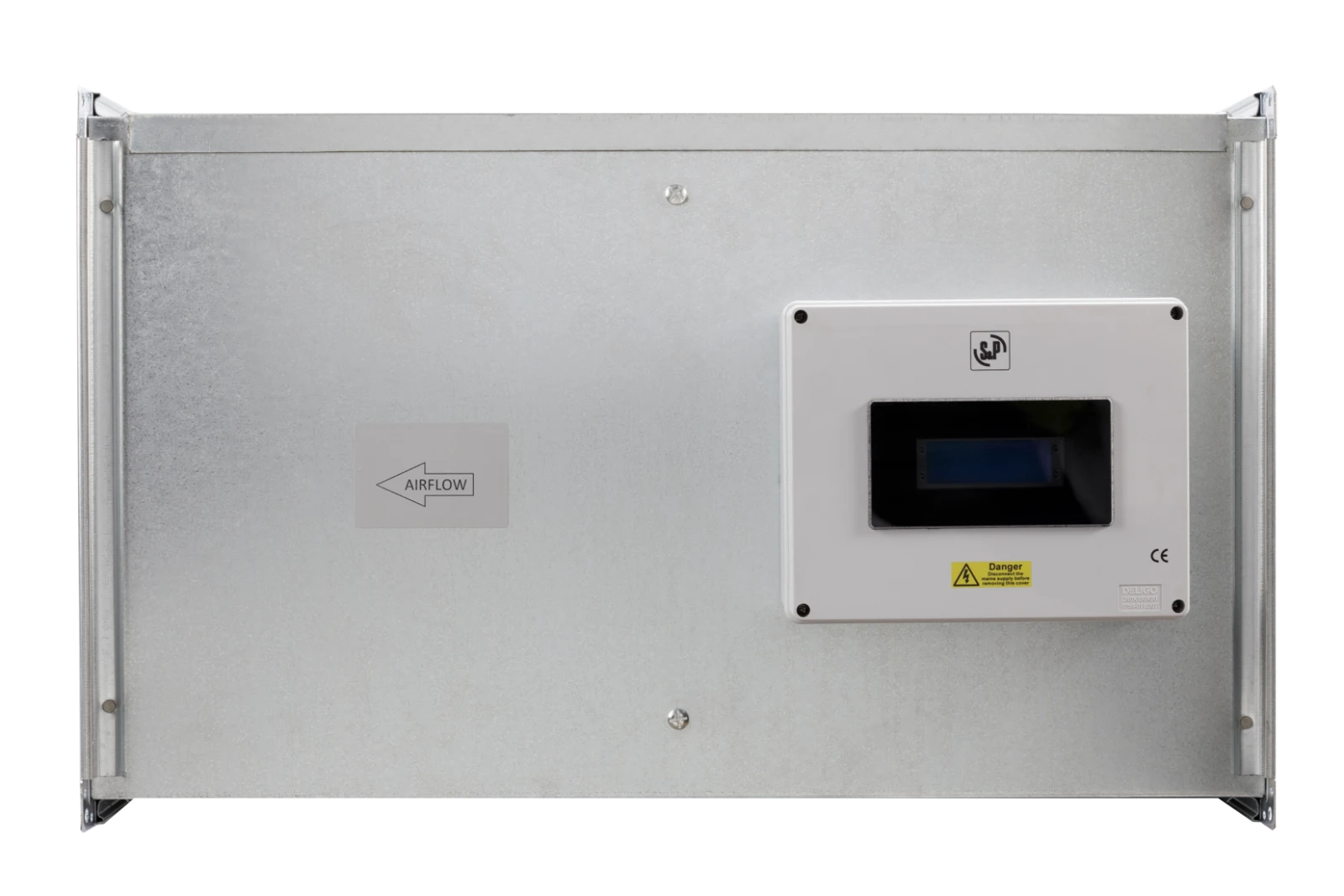

The MELLIZO ECOWATT twin cabinet fans are manufactured from galvanised sheet steel and internally lined with 25mm thickness fireproof acoustic insulation (M0). The fans include a pitched lid and are suitable to be mounted externally. The fans are fitted with two backward curved EC motors that are single phase. The fans have a variety of control options including an integral control unit for duty sharing, BMS and automated running.

Key Features

Twin Fans

Variable Duty Sharing

Continuous or On-Demand Speed Control

Low Noise Level

Fireproof Acoustic Insulation

0-10V Input

Connect Sensors and Controllers

Multiple Installation Options

External, Horizontal, Vertical, Suspended from Ceiling

Speed Controllers Available

Working Temperature Between -20°C to +40°C

Accessory Packs Available

Product Overview

Max Airflow (l/s)

110 - 430

Warranty

2

IP Rating

IP44

Request a Quote Find a Stockist
Request a Design Service
CONFIG ON EasyVent

Key Features

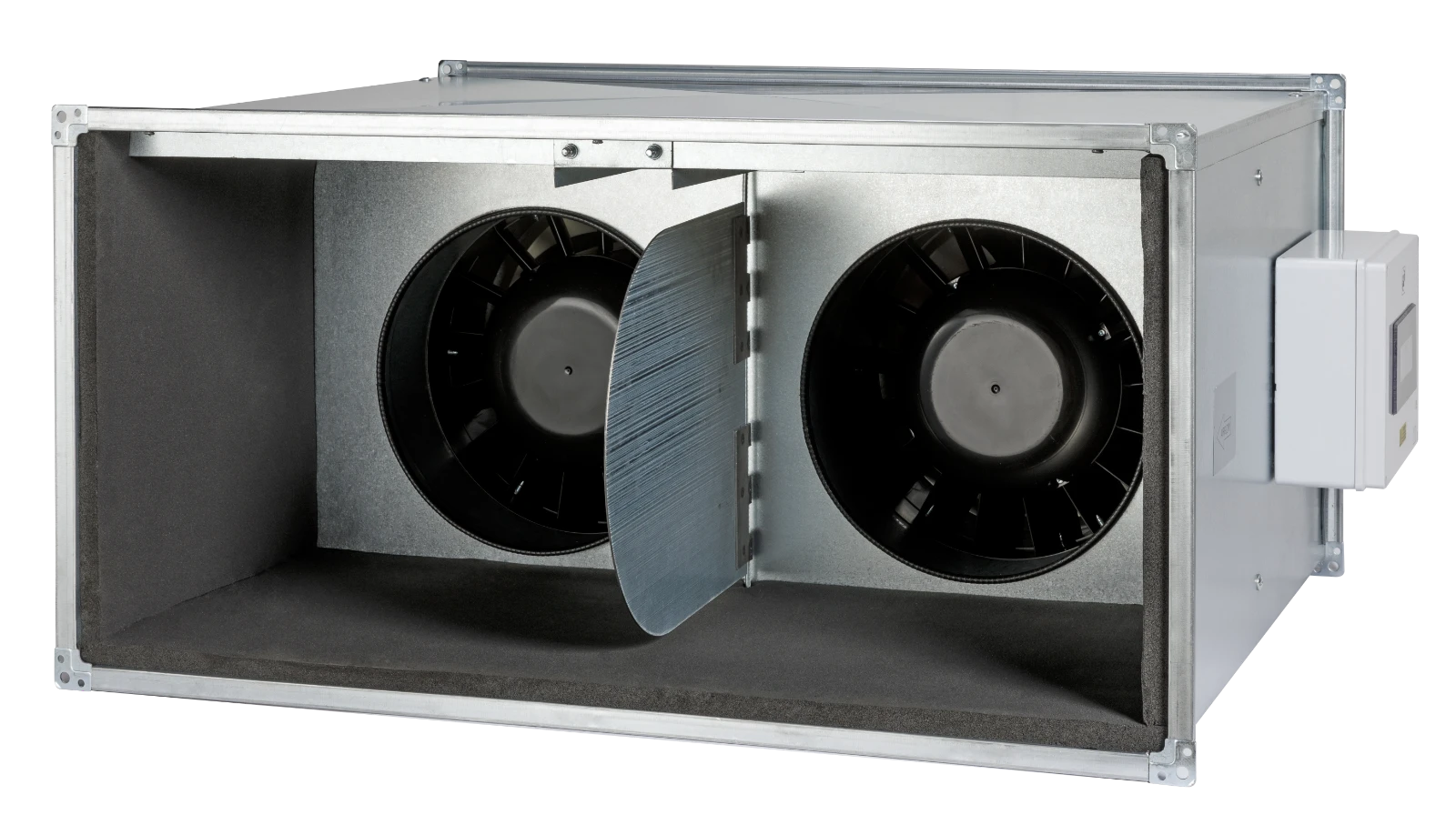

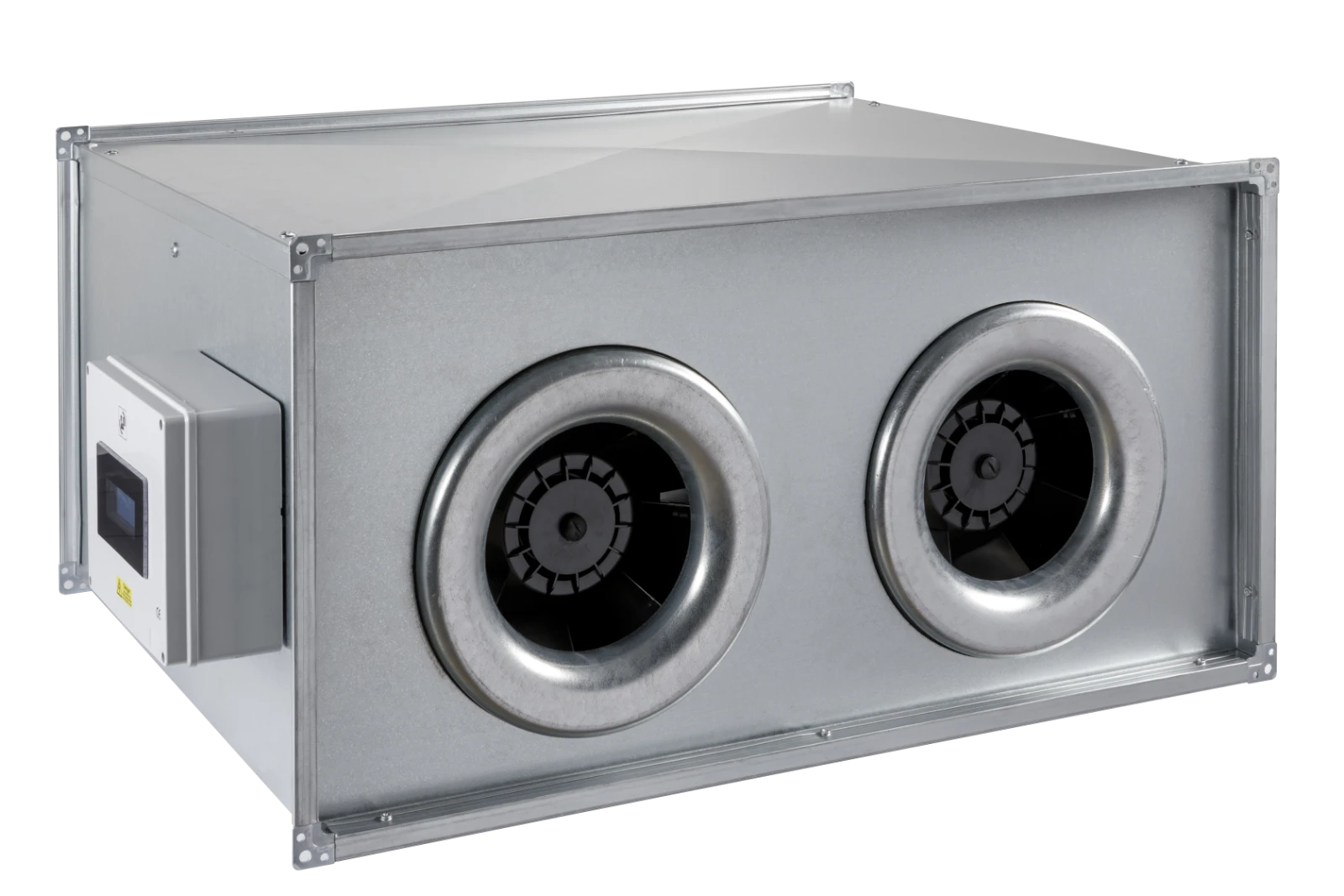

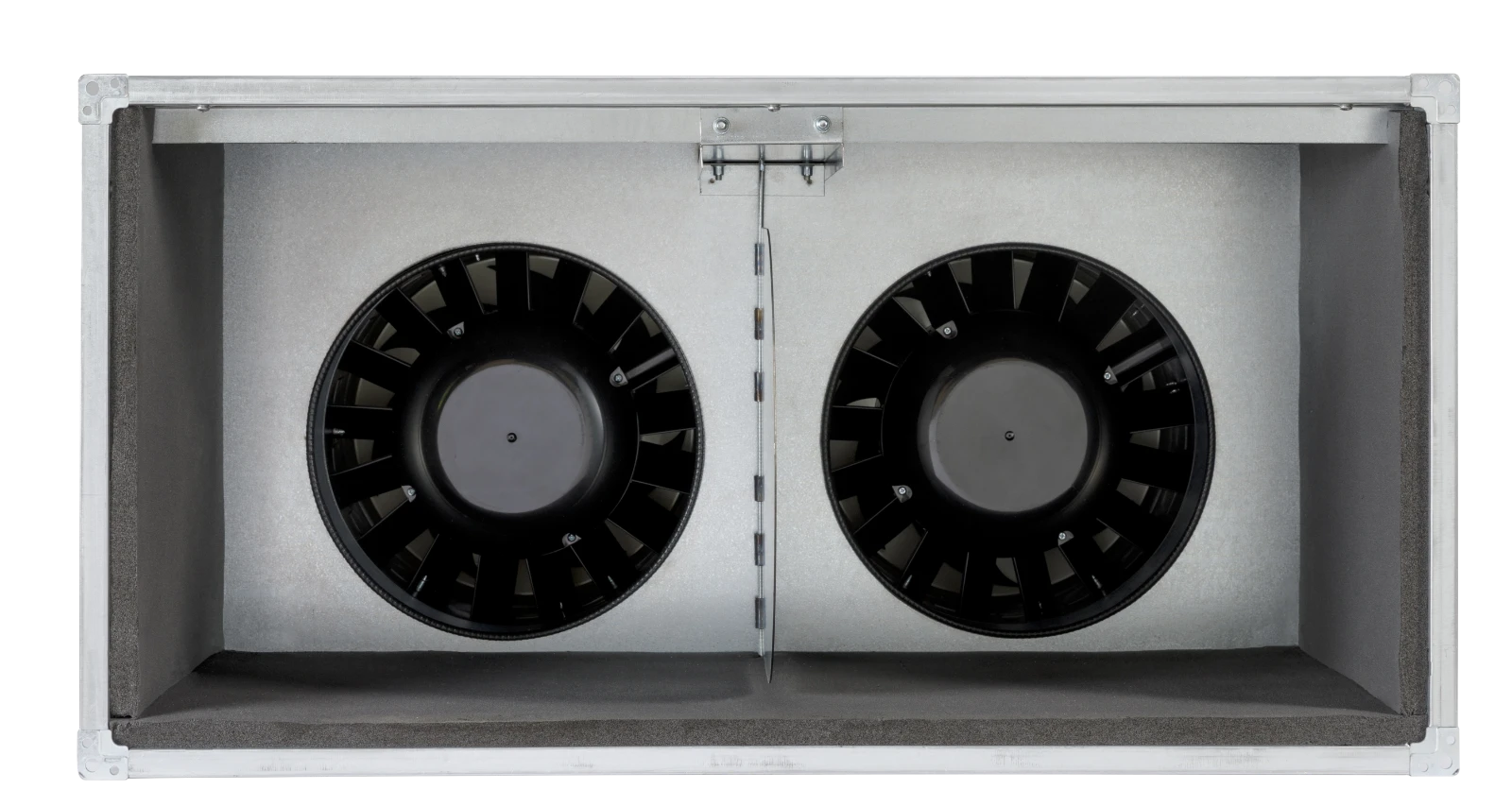

  • Twin Fans

    All units incorporate 2 centrifugal fans that work independently. They have the ability to duty share between 3 and 24 hours including BMS and remote fault indication.

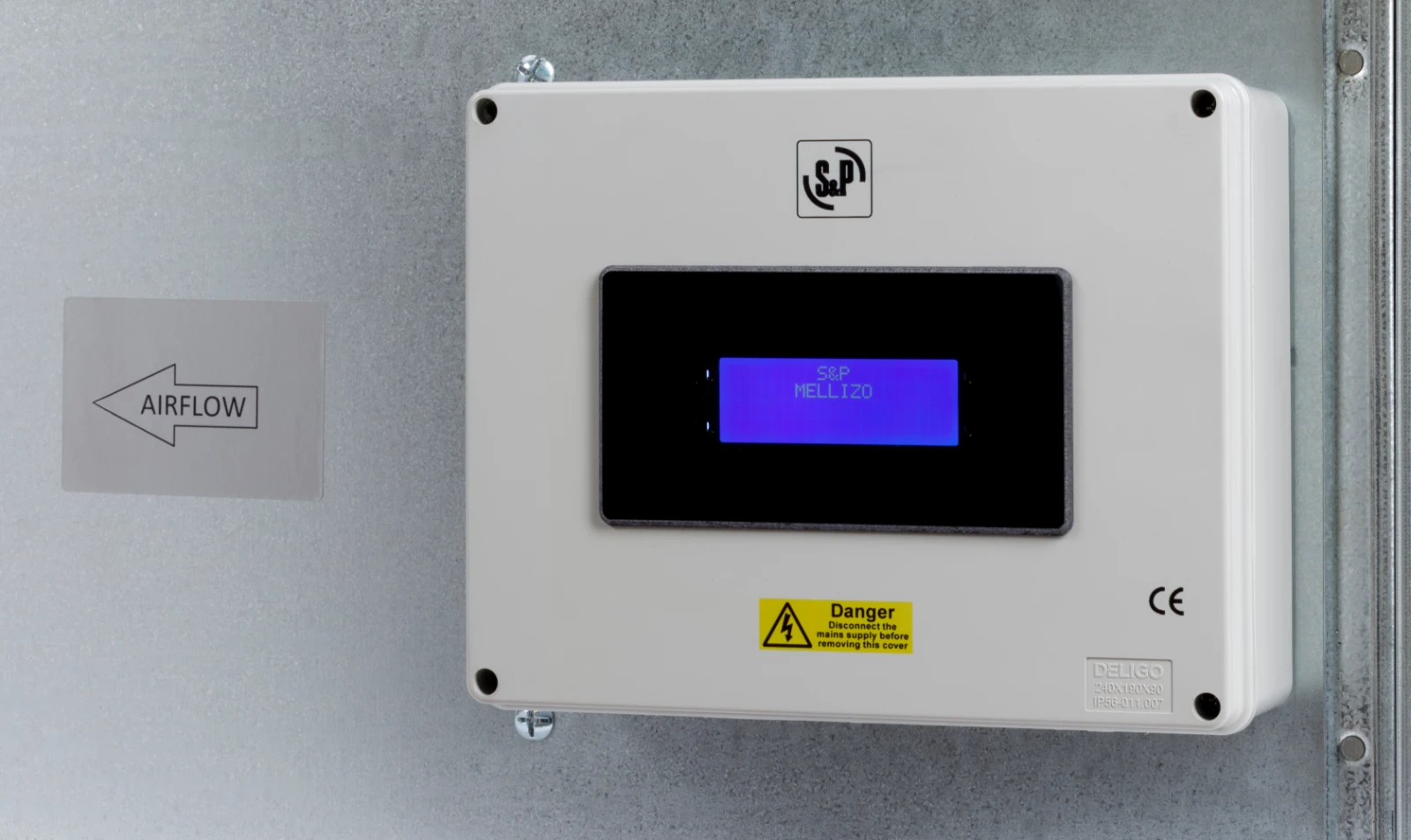

  • Continuous or On-Demand Speed Control

    Installer-defined fixed speed control either continuous or on-demand (triggered by an external switch), or one, two or three speeds defined during installation to provide a minimum/middle/maximum speed ventilation system, the middle and maximum speeds being selected by an external switch/sensor

  • Low Noise Level

    Low noise level with fireproof acoustic insulation of 25mm thickness at grade M0.

  • 0-10V Input

    MELLIZO ECOWATT units have a 0-10V input allowing additional controls and sensors such as AirSens® to be connected.

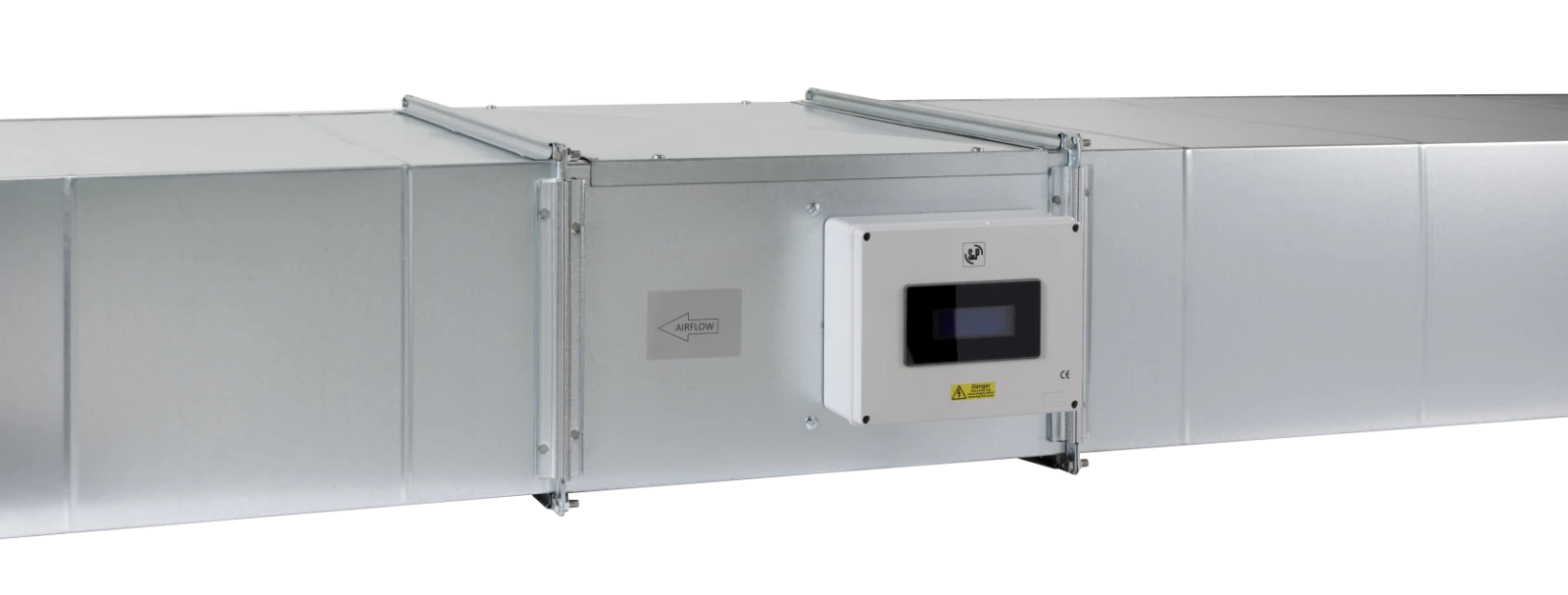

  • Multiple Installation Options

    MELLIZO ECOWATT units can be installed in a variety of different ways including outside. All units come with a pitched lid as standard.

  • Speed Controllers Available

    All models can be connected to external speed controllers. This gives the end user full control over the fan speed ensuring it delivers the required airflow for any particular scenario.

  • Working Temperature Between -20°C to +40°C

    MELLIZO ECOWATT fans are fully operational in temperatures ranging from -20°C to +40°C, making it a perfect choice for a number of different commercial applications.

  • Accessory Packs Available

    Accessory packs available including silencer, rectangular flexible connection, circular adaption kits and outlet guard.

Product Codes

Product CodeProduct Description
MEL-400-ECOWATTTwin Acoustic Cabinet Fan, Ø125mm (with circular adaptor required)
MEL-700-ECOWATTTwin Acoustic Cabinet Fan, Ø150mm (with circular adaptor required)
MEL-1000-ECOWATTTwin Acoustic Cabinet Fan, Ø200mm (with circular adaptor required)
MEL-1300-ECOWATTTwin Acoustic Cabinet Fan, Ø250mm (with circular adaptor required)
MEL-1600-ECOWATTTwin Acoustic Cabinet Fan, Ø315mm (with circular adaptor required)
