TD ECOWATT

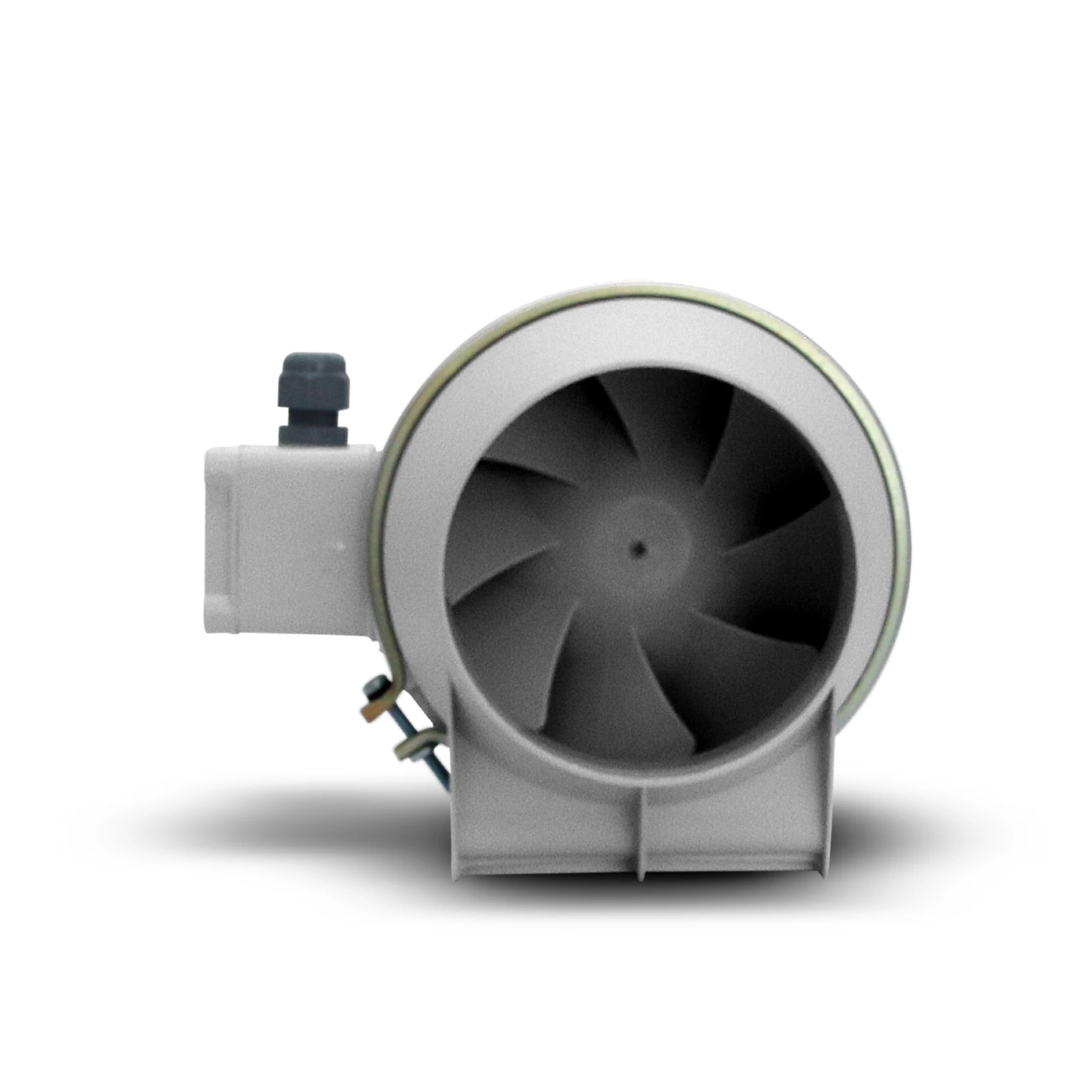

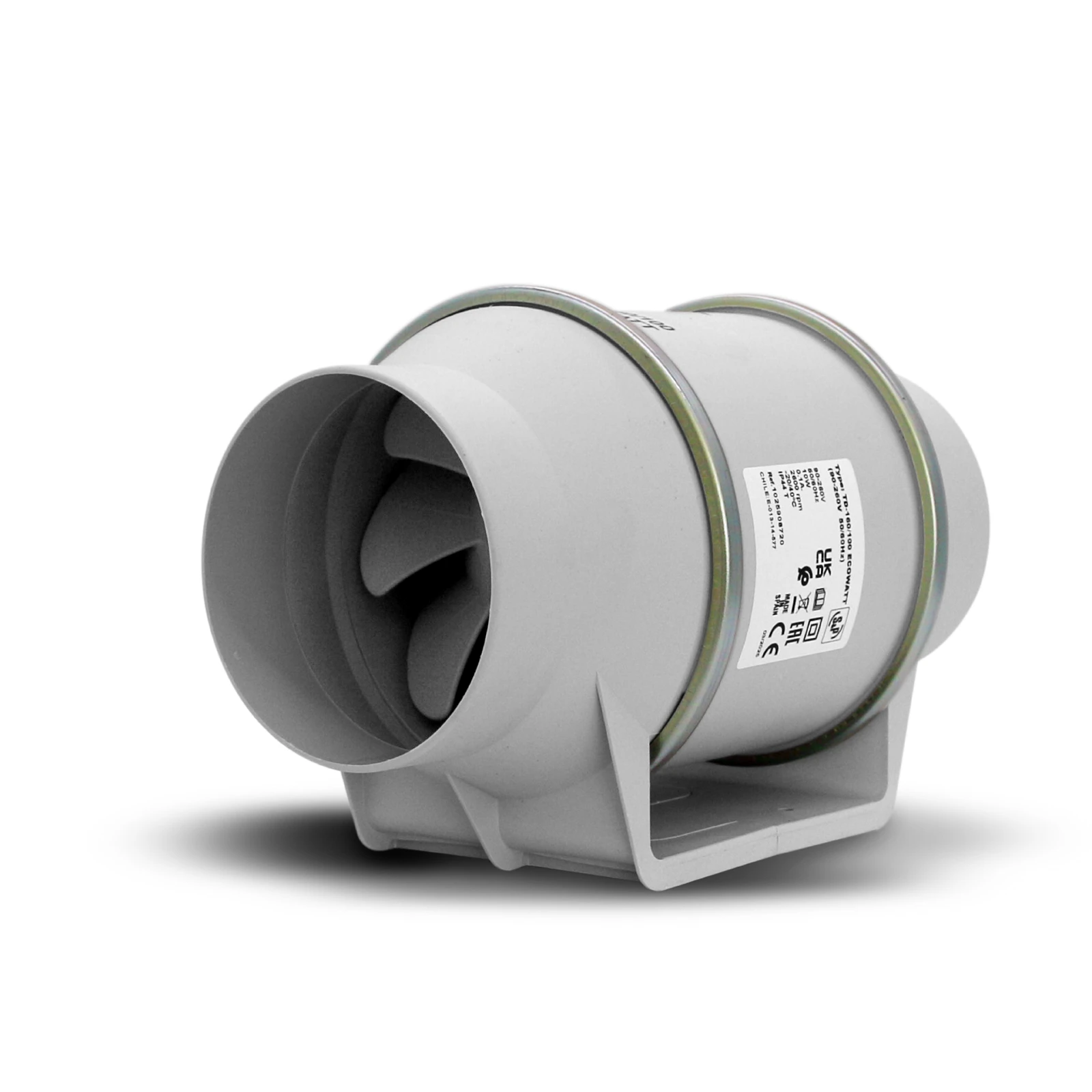

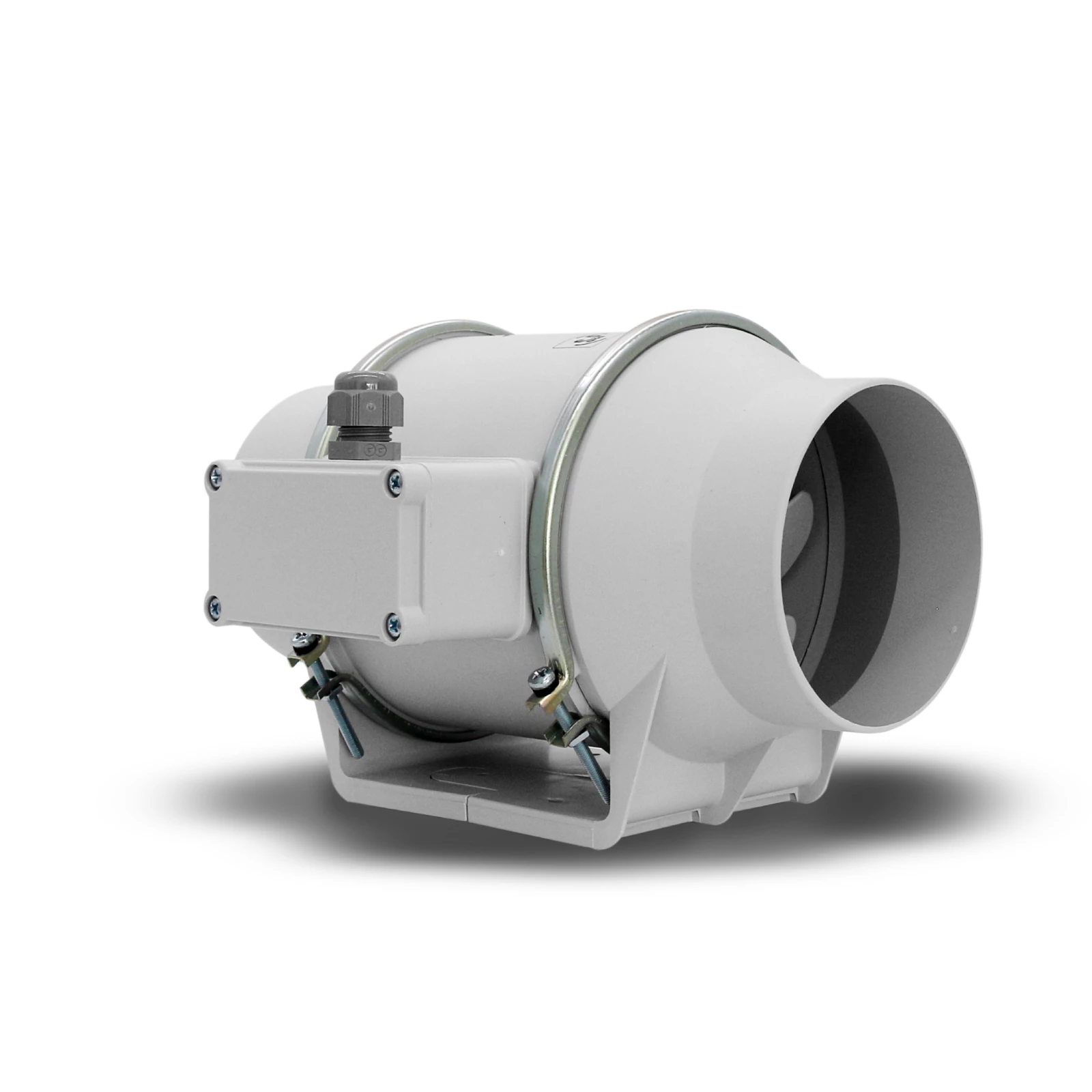

TD ECOWATT are continuous running inline fans designed to extract or supply air and solve ventilation problems for ducted systems. The range comprises of 4 diameters and covers a wide airflow range from 56 - 266 l/s. They incorporate a mixed flow impeller which keeps the units compact and low profile making them an effective solution for installations where space is limited. Suitable for any kind of ventilation application where the noise level of the ventilation system is of particular importance and, due to continuous operation, a significant energy saving is desirable. It is also suitable for applications that require a Demand Controlled Ventilation System involving the use of other sensors or controls.

Key Features

Continuous Running

Energy Efficient

Easy Maintenance

Removable Fan Body

100% Adjustable Airflow

Via On-unit Potentiometer

Low Profile

0-10V Input

Connect Sensors and Controllers

Flexible Installation

Extract or Supply

Easy to Install

4 Simple Steps

Working Temperature between -20°C to +40°C

Product Overview

Max Airflow (l/s)

50 - 266

Ducting / Connection Size (mm)

100

Warranty

5

IP Rating

IP44

Request a Quote Find a Stockist
Request a Design Service
CONFIG ON EasyVent

Key Features

  • Continuous Running

    As well as providing ventilation non-stop the continuous function of the fan also provides a significant energy saving compared to intermittent counterparts.

  • Easy Maintenance

    The unique design of the support bracket allows the main fan body assembly to be fitted and removed without dismantling the adjacent ducting.

  • 100% Adjustable Airflow

    Fan speed is 100% adjustable via the potentiometer in the connection box or via REB-ECO controller (TD-160/100ECOWATT).

  • Low Profile

    Compact design makes the TD ECOWATT suitable for a variety of installations especially where space is limited.

  • 0-10V Input

    All TD ECOWATT units have a 0-10V input allowing additonal controls and sensors such as AirSens® and REB-ECO to be connected.

  • Flexible Installation

    TD ECOWATT can be used for a variety of applications, they can be used to either extract or supply air, by simply swapping the fan body around. This makes this range particularly useful for residential or commercial applications.

  • Easy to Install

    1.) Fix the support bracket. 2.) Insert impeller and motor assembly. 3.) Complete wiring connections. 4.) Connect the ducts.

  • Working Temperature between -20°C to +40°C

    TD ECOWATT fans are fully operational in temperatures ranging from -20°C to +40°C, making it a perfect choice for a number of different commercial applications.

Product Documents

Product Codes

Product CodeProduct Description
TD-160/100ECOWATTVariable Speed, Continuous Running, Inline, Ø100mm
TD-250/100ECOWATTVariable speed, Continuous Running, Inline, Ø100mm
TD-350/125ECOWATTVariable Speed, Continuous Running, Inline, Ø125mm
TD-800/200ECOWATTVariable speed, Continuous Running, Inline, Ø200mm
