TD MIXVENT

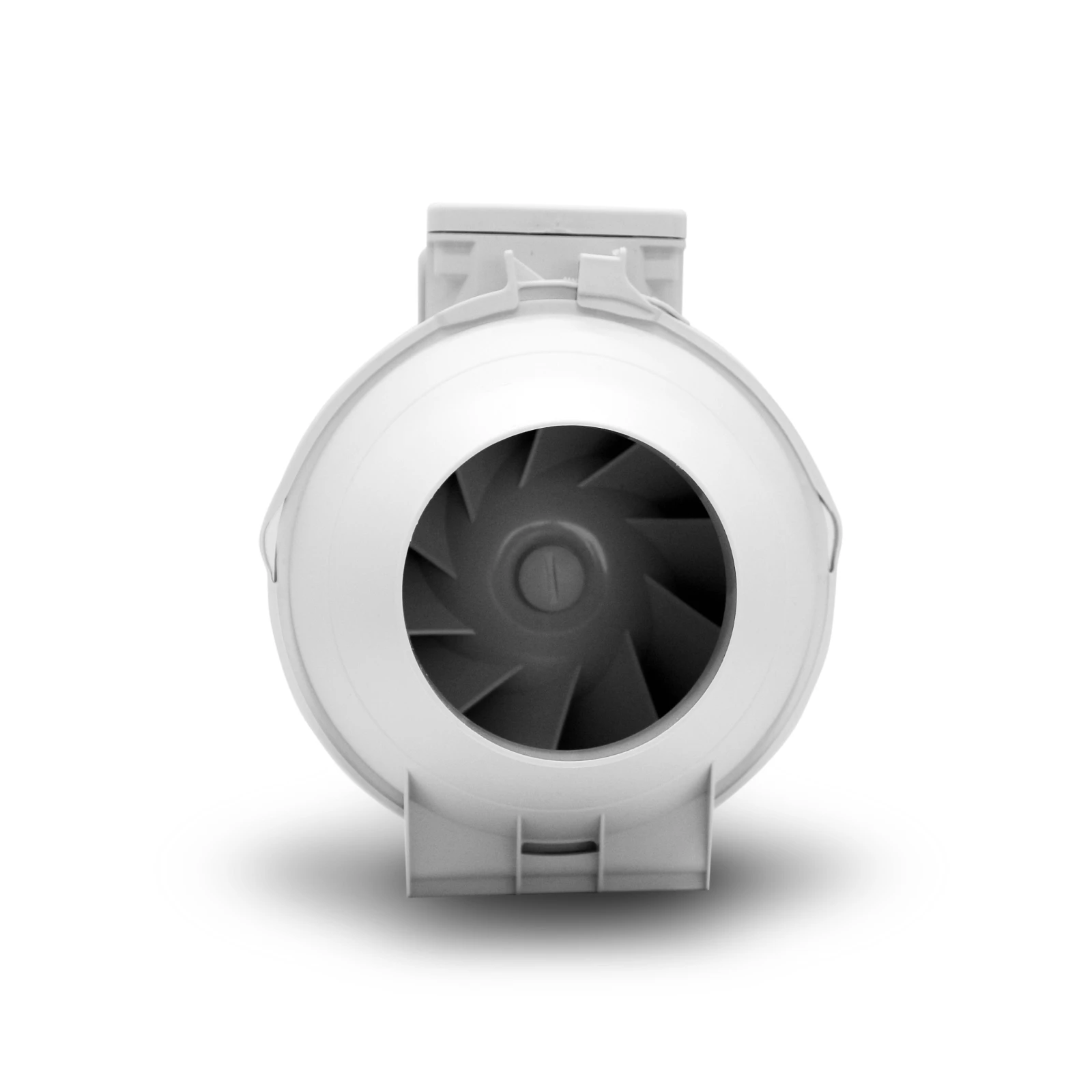

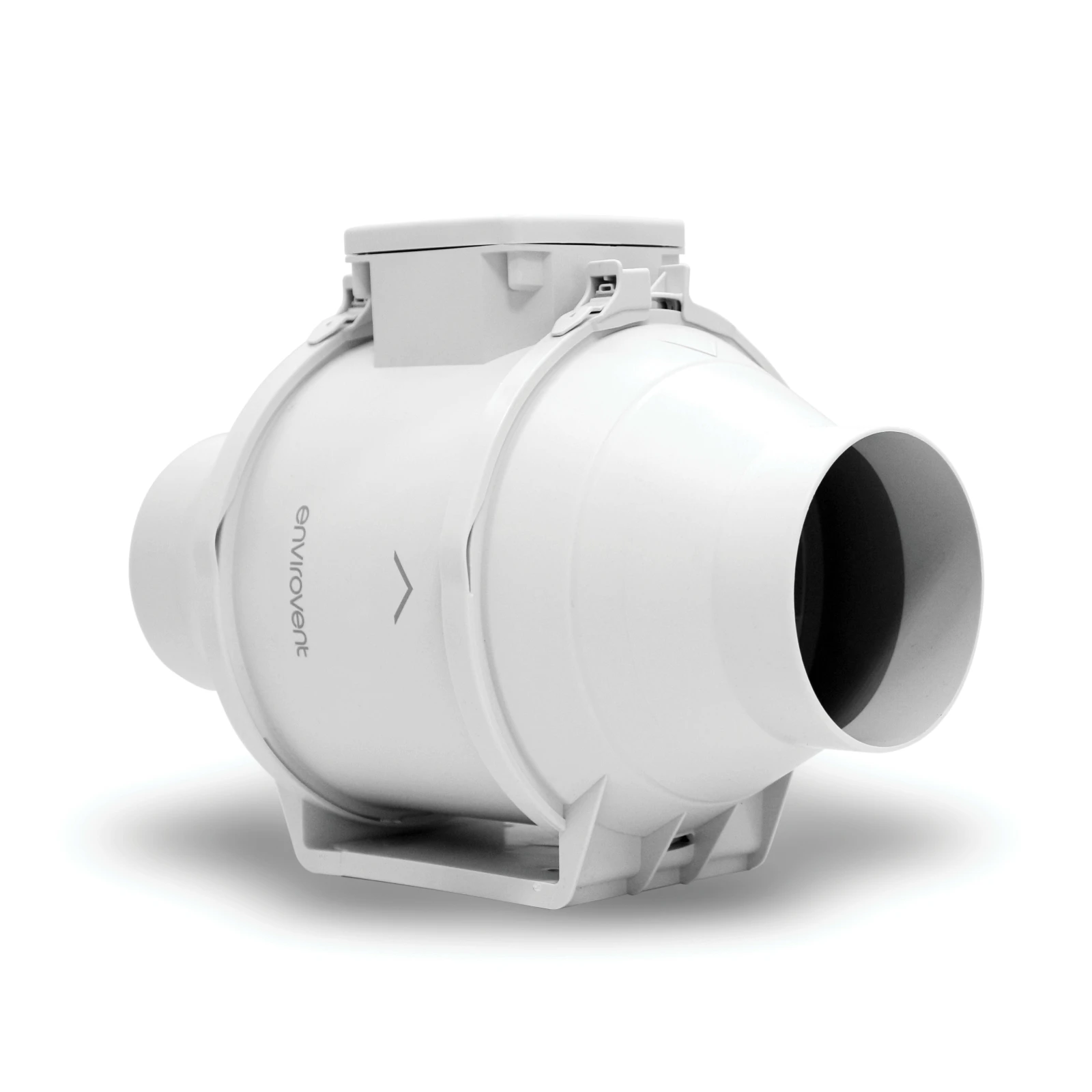

TD MIXVENT are inline fans designed to extract or supply air and solve ventilation problems for ducted systems. The range comprises of 4 diameters and covers a wide airflow range from 56 - 288 l/s. They incorporate a mixed flow impeller which keeps the units compact and low profile making them an effective solution for installations where space is limited. The mixed flow impeller also ensures the units can provide high airflow performance whilst keeping noise levels to a minimum. These fans can be used for several different applications including wet room extraction and as a viable overheating solution.

Key Features

Overheating Solution

Approved Document O

Easy Maintenance

Removable Fan Body

Adjustable Over-run Timer Models Available

Adjustable Between 1 - 30 minutes

Low Profile

0-10V Input

Connect Sensors and Controllers

Flexible Installation

Extract or Supply

Easy to Install

4 Simple Steps

Working Temperature Between -20°C to +40°C

Product Overview

Max Airflow (l/s)

56 - 288

Ducting / Connection Size (mm)

100, 125, 150, 200

Warranty

2

IP Rating

IP44

Request a Quote Find a Stockist
Request a Design Service
CONFIG ON EasyVent

Key Features

  • Overheating Solution

    Inline fans are commonly used as localised way to ensure that habitable rooms do not encounter overheating issues. Many sizes in this range make it easier to find the right one for the job.

  • Easy Maintenance

    The unique design of the support bracket allows the main fan body assembly to be fitted and removed without dismantling the adjacent ducting.

  • Adjustable Over-run Timer Models Available

    T models have an over-run timer that can be adjusted between 1 - 30 minutes. This means the fan will continue to run after being switched off. Particularly helpful when extracting from wet rooms.

  • Low Profile

    Compact design makes the TD MIXVENT suitable for a variety of installations especially where space is limited.

  • 0-10V Input

    All TD MIXVENT units have a 0-10V input allowing additonal controls and sensors such as AirSens® to be connected.

  • Flexible Installation

    TD MIXVENT can be used for a variety of applications, they can be used to either extract or supply air, by simply swapping the fan body around. This makes this range particularly useful for residential or commercial applications.

  • Easy to Install

    1.) Fix the support bracket. 2.) Insert impeller and motor assembly. 3.) Complete wiring connections. 4.) Connect the ducts.

  • Working Temperature Between -20°C to +40°C

    TD MIXVENT fans are fully operational in temperatures ranging from -20°C to +40°C, making it a perfect choice for a number of different commercial applications.

Product Documents

Product Codes

Product CodeProduct Description
TD-250/100Standard, Inline, Ø100mm, Two Speed
TD-250/100TAdjustable Timer, Inline, Ø100mm, Single Speed
TD-350/125Standard, Inline, Ø125mm, Two Speed
TD-350/125TAdjustable Timer, Inline, Ø125mm, Single Speed
TD-500/150Standard, Inline, Ø150mm, Three Speed
TD-500/150TAdjustable Timer, Inline, Ø150mm, Three Speed
TD-800/200Standard, Inline, Ø200mm, Three Speed
