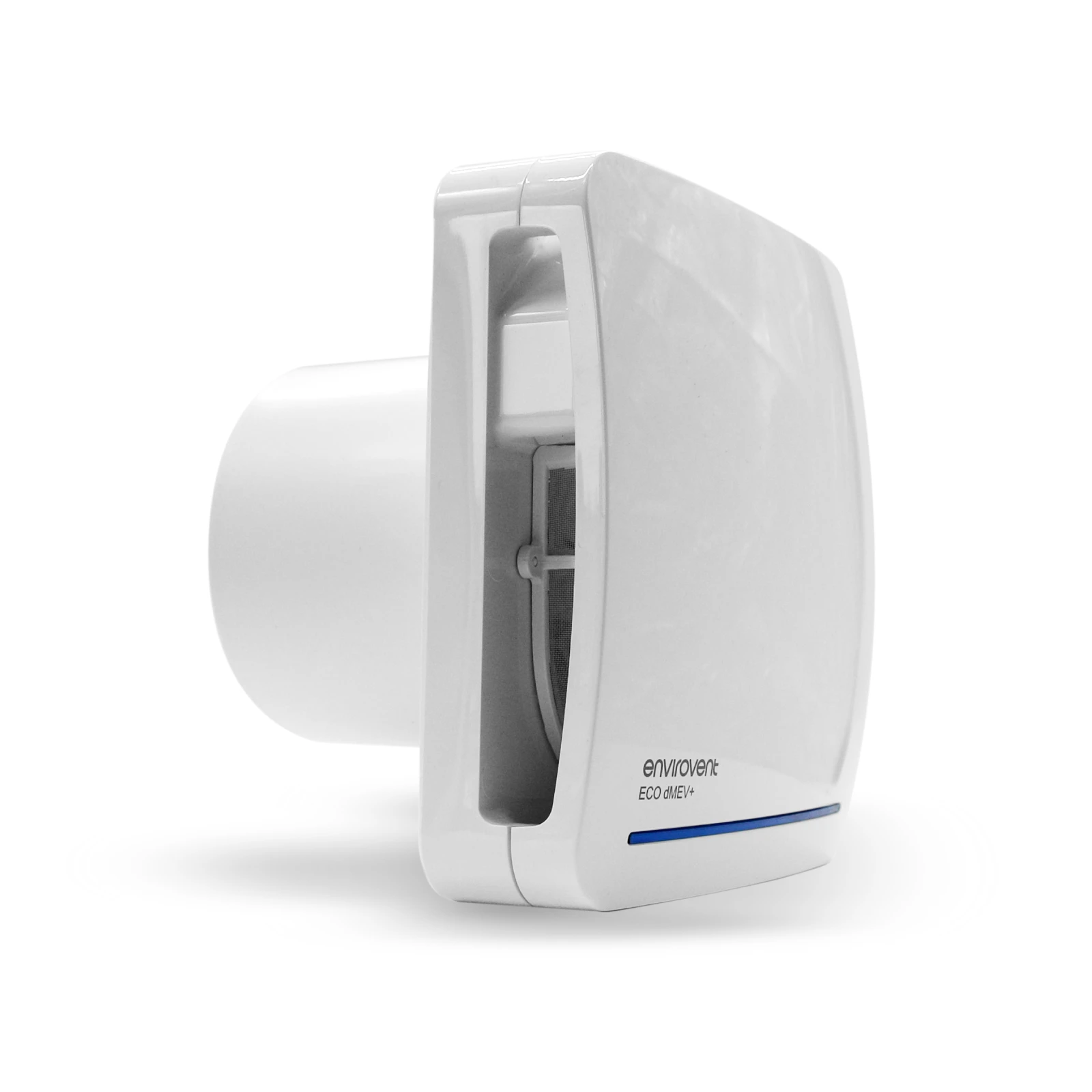

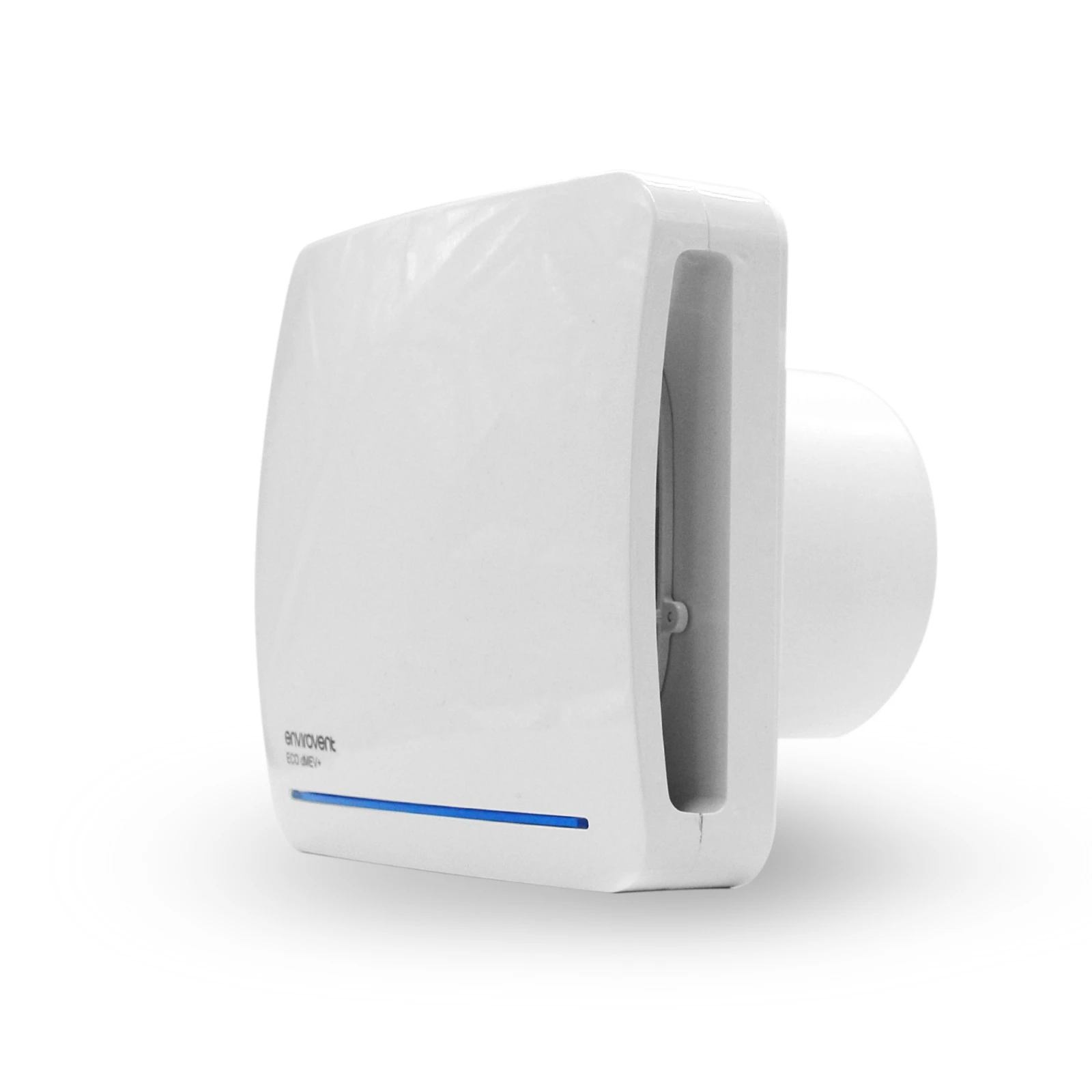

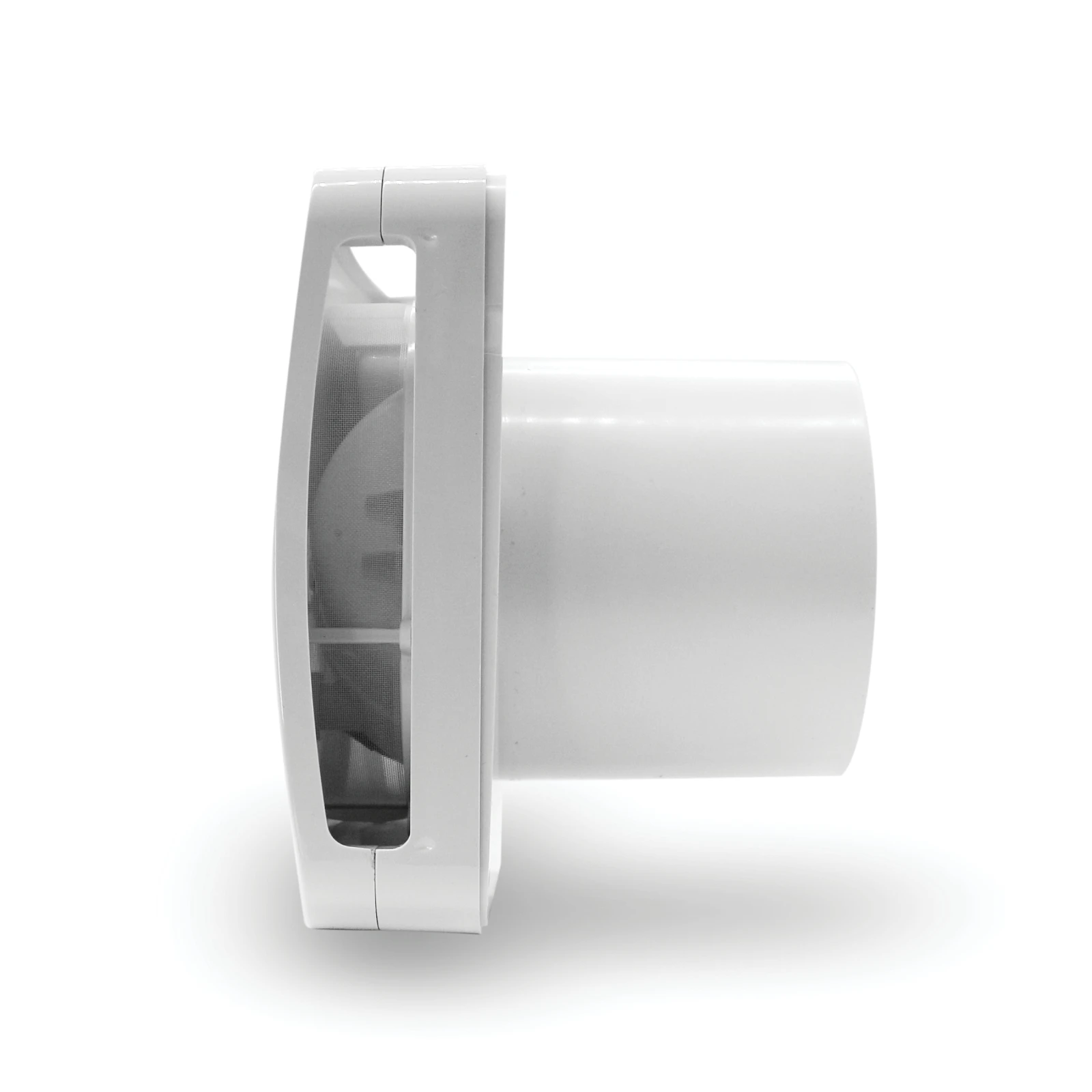

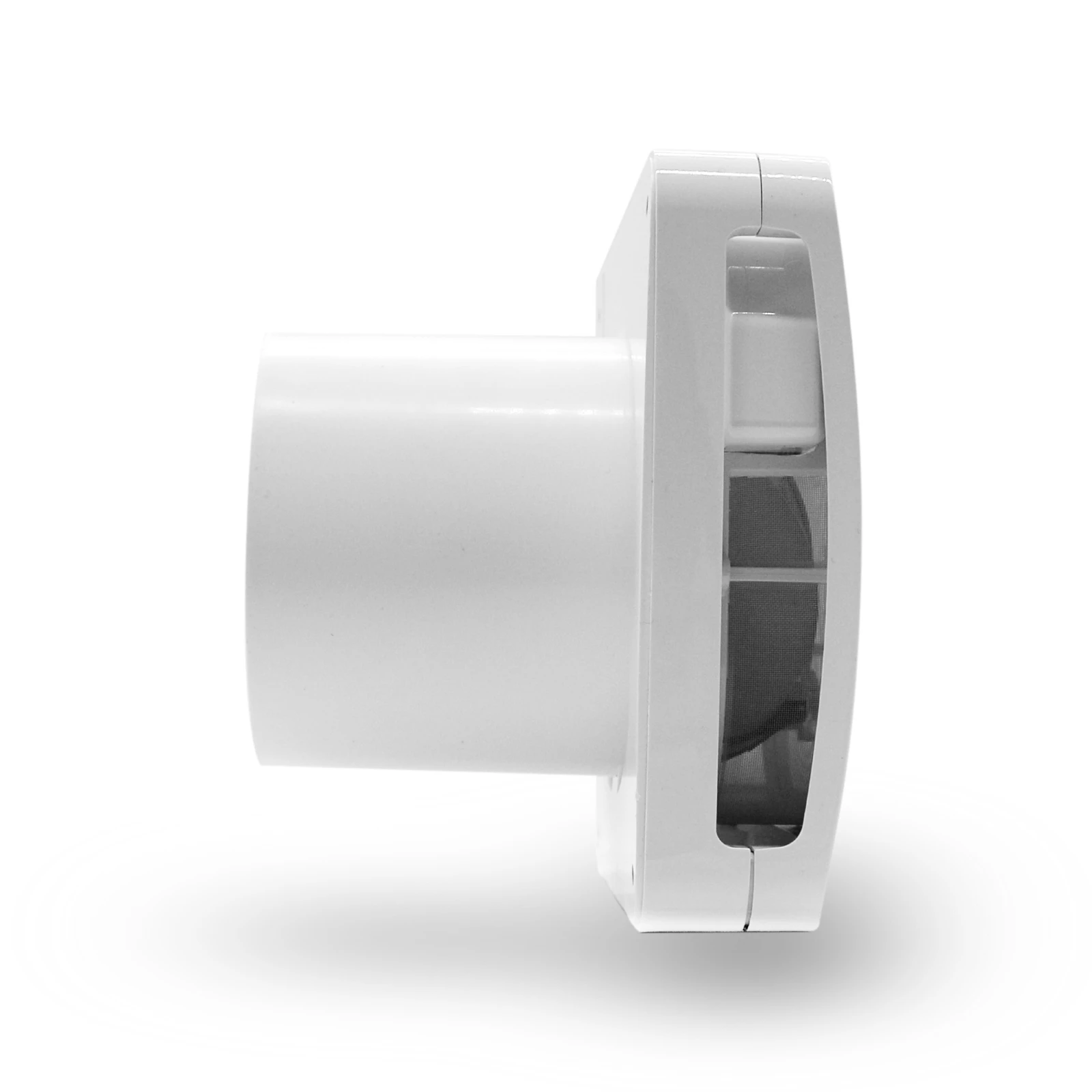

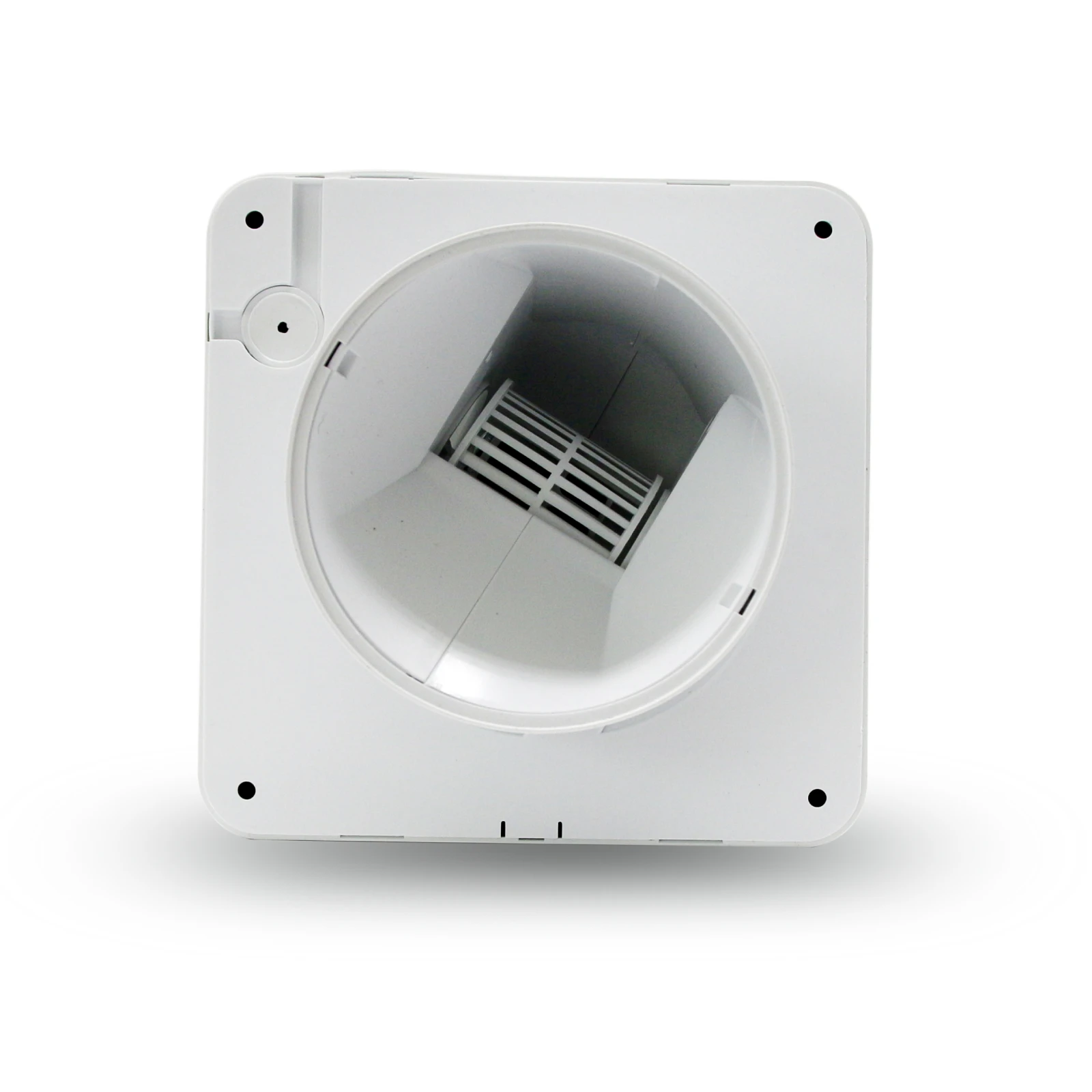

ECO DMEV+

The ECO DMEV+ is a continuous running decentralised extract fan that is suitable for wall and ceiling installations, designed to solve ventilation problems in all domestic wet rooms. The ECO DMEV+ has been designed and developed to offer the market a fan with constant volume, low power consumption, low noise levels and low life-cycle costs. The low energy fan is supplied in both 230V and SELV formats with 6 adjustable trickle speed settings from 4l/s to a maximum speed of 18/ls. The fan also comes supplied with four interchangeable front panel trims.

Key Features

Quiet Running

Less than 20 dB(A)

SAP PCDB Listed for Rigid and Semi-rigid Ducting

7 Models Available

Compact Footprint

158mm x 158mm

Constant Volume Technology

Guaranteed Airflow Performance

Low Power Consumption

Down to 1W

Flexible Installation

Ceiling and Wall Mounting

Removable Mesh Filter

Protects the Unit and Easy to Clean

Product Overview

Max Airflow (l/s)

18

Ducting / Connection Size (mm)

100, 90

Warranty

2

IP Rating

IPX4, IP57

SAP PCDB Listed

Yes

Passivhaus Certified

No

Request a Quote Find a Stockist
Request a Design Service

Key Features

  • Quiet Running

    Quiet running below 20 dB(A) with limited constant volume to prevent nuisance running.

  • SAP PCDB Listed for Rigid and Semi-rigid Ducting

    SAP PCDB Listed using two ducting types, with SFP levels for rigid ducting down to 0.23W/l/s and down to 0.21W/l/s for Fast Track®/Plus ducting.

  • 7 Models Available

    7 models available depending upon property requirements including a standard unit, adjustable over-run timer, adjustable humidity sensor as well as including a pullcord for both 230V and SELV (except pullcord variant for SELV).

  • Compact Footprint

    Compact footprint for ease of installation, with coloured trims included. The size of the fan is 158x158mm and a 99mm spigot suitable for 100mm ducting.

  • Constant Volume Technology

    Constant volume technology provides guaranteed airflow performance despite changes in resistance. Also incorporates a limiter to ensure that noise levles are kept to a minimum.

  • Low Power Consumption

    Low power consumption down to 1 Watt, this ensures running costs are kept to a minimum.

  • Flexible Installation

    Flexible installation and mounting options including wall and ceiling.

  • Removable Mesh Filter

    Incorporates a removable mesh filter to protect the unit and stop any debris entering the property. The filter can be easily removed, cleand and re-inserted.

Product Documents

Product Codes

Product CodeProduct Description
ECO-DMEV+SStandard
ECO-DMEV+TAdjustable Timer
ECO-DMEV+HTAdjustable Humidity Sensor, Adjustable Timer
ECO-DMEV+HTPAdjustable Timer, Humidity Sensor, Pullcord
ECO-DMEV+S-17VSELV, Standard
ECO-DMEV+T-17VSELV, Adustable Timer
ECO-DMEV+HT-17VSELV, Adjustable Humidity Sensor, Adjustable Timer

ECO DMEV+
