JETLINE

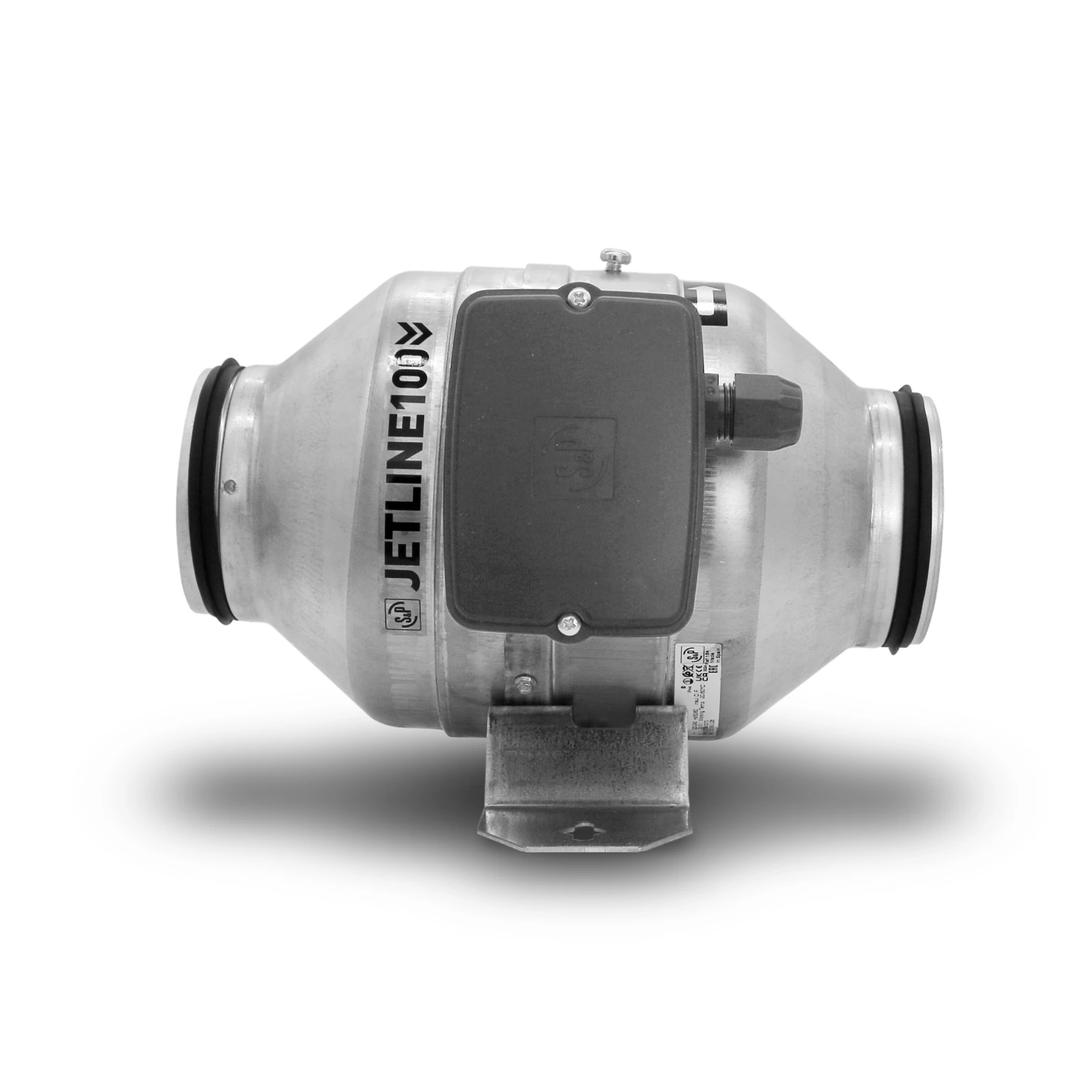

The JETLINE range are a set of inline fans designed to extract or supply air and solve a wide range of commercial/industrial ventilation requirements. The range comprises of 7 diameters and covers a wide airflow range from 74 to 447 l/s. All JETLINE fans have been carefully designed to be compact and low profile but still provide high aerodynamic performances and low noise levels. These are manufactured from galvanised steel and are able to deal with air temperatures between -20 – 60°C. They can be installed in a wide variety of scenarios.
Key Features
High Airflow Performance
74 l/s - 447 l/s
Low Profile Fans
Flexible Installation
Multiple Mounting Options
High Performance Impeller
Lower Noise. Higher Airlfow
Airtight Rubber Gaskets
No Leakage
IP65 Terminal Box
Suitable for Outdoor Installations
Working Temperature Between -20°C to +60°C
0-10V Input
Product Overview
Max Airflow (l/s)
74 - 447
Ducting / Connection Size (mm)
100, 125, 150, 160, 200, 250, 315
Warranty
2
IP Rating
IP44
Key Features
High Airflow Performance
All applications are covered with JETLINE, there are 7 different models available with different airflow capabilities.
Low Profile Fans
All JETLINE fans are low profile making them suitable for a variety of installations. They have been carefully designed to ensure the built in terminal box does not add any additional height to the product.
Flexible Installation
JJETLINE are supplied with a strong mounting bracket which allows the fans to be mounted in 2 different positions providing greater flexibility for installations.
High Performance Impeller
Impeller design has been optimised to provide increased airflow performance and lower noise levels.
Airtight Rubber Gaskets
Units come with built in rubber gaskets ensuring all connections are airtight and minimise leakage.
IP65 Terminal Box
All JETLINE fans have a built in IP65 rated terminal box making it suitable for outdoor installations.
Working Temperature Between -20°C to +60°C
JETLINE fans are fully operational with airflow temperatures ranging from -20°C to +60°C, making it a perfect choice for a number of different applications.
0-10V Input
All JETLINE fans airflows can adjusted via a 0-10V input, meaning the unit can be set up to achieve the desired airflow for many different scenarios.
Product Documents
Product Codes
| Product Code | Product Description |
|---|---|
| JL-100 | Inline, Ø100mm |
| JL-125 | Inline, Ø125mm |
| JL-150 | Inline, Ø150mm |
| JL-160 | Inline, Ø160mm |
| JL-200 | Inline, Ø200mm |
| JL-250 | Inline, Ø250mm |
| JL-315 | Inline, Ø315mm |
