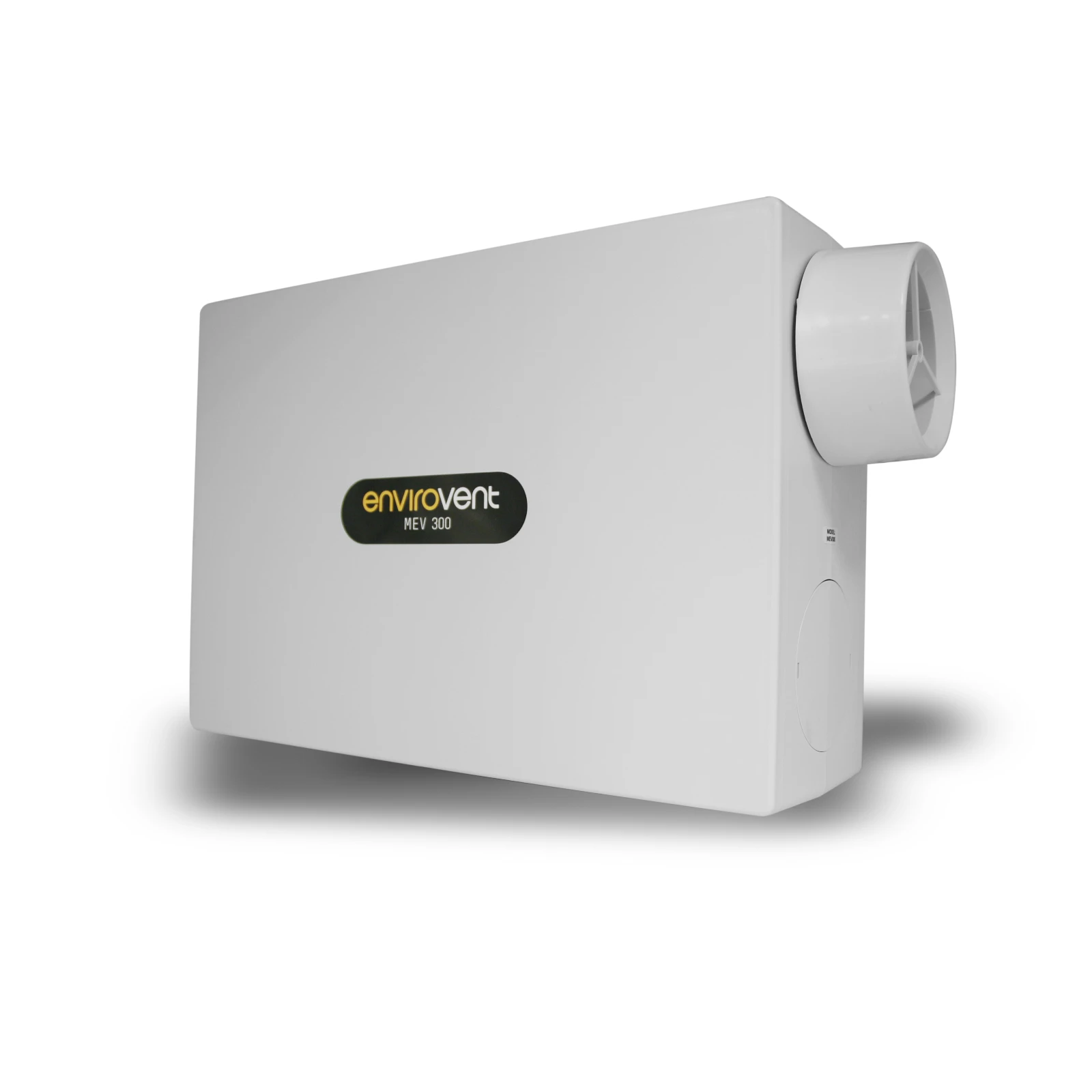

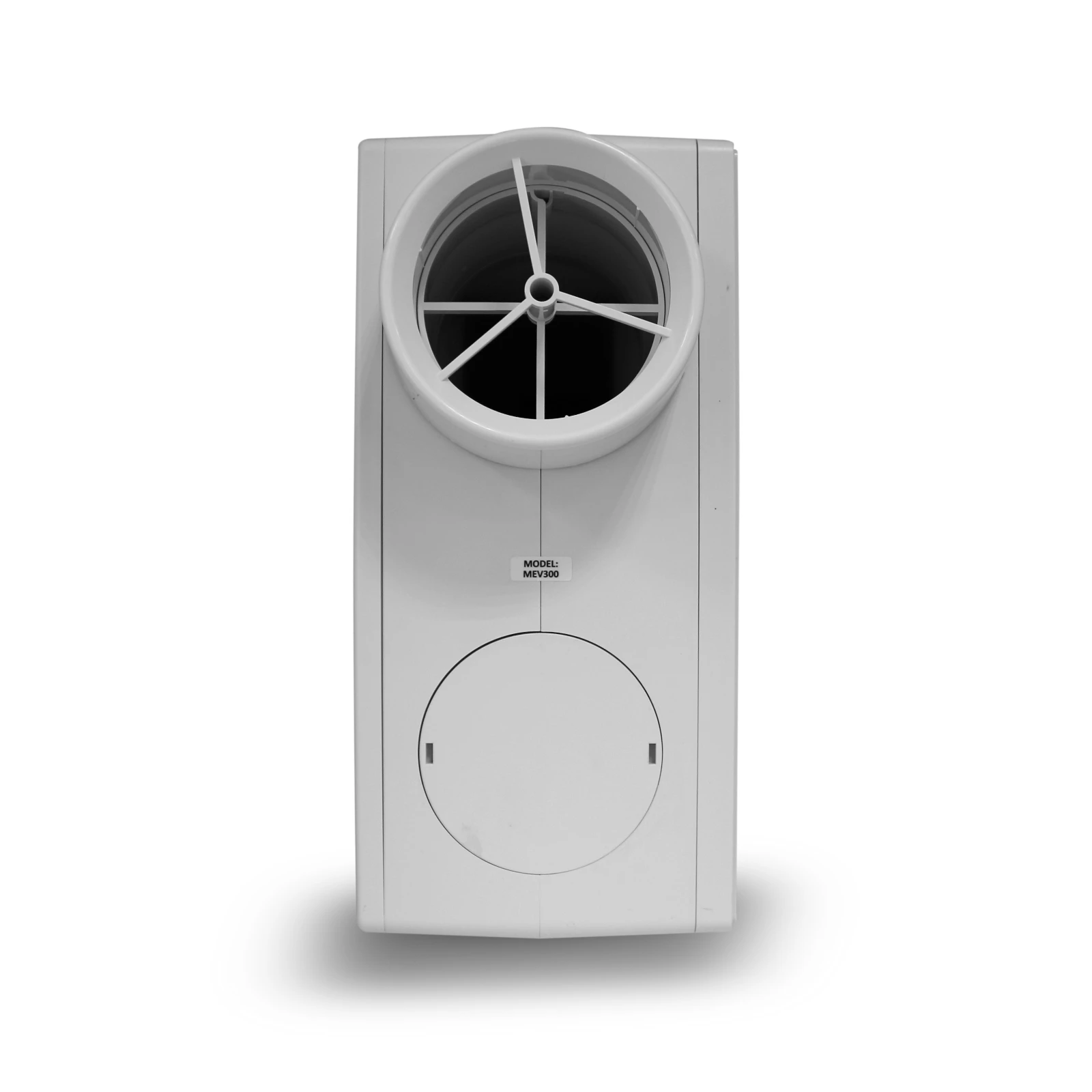

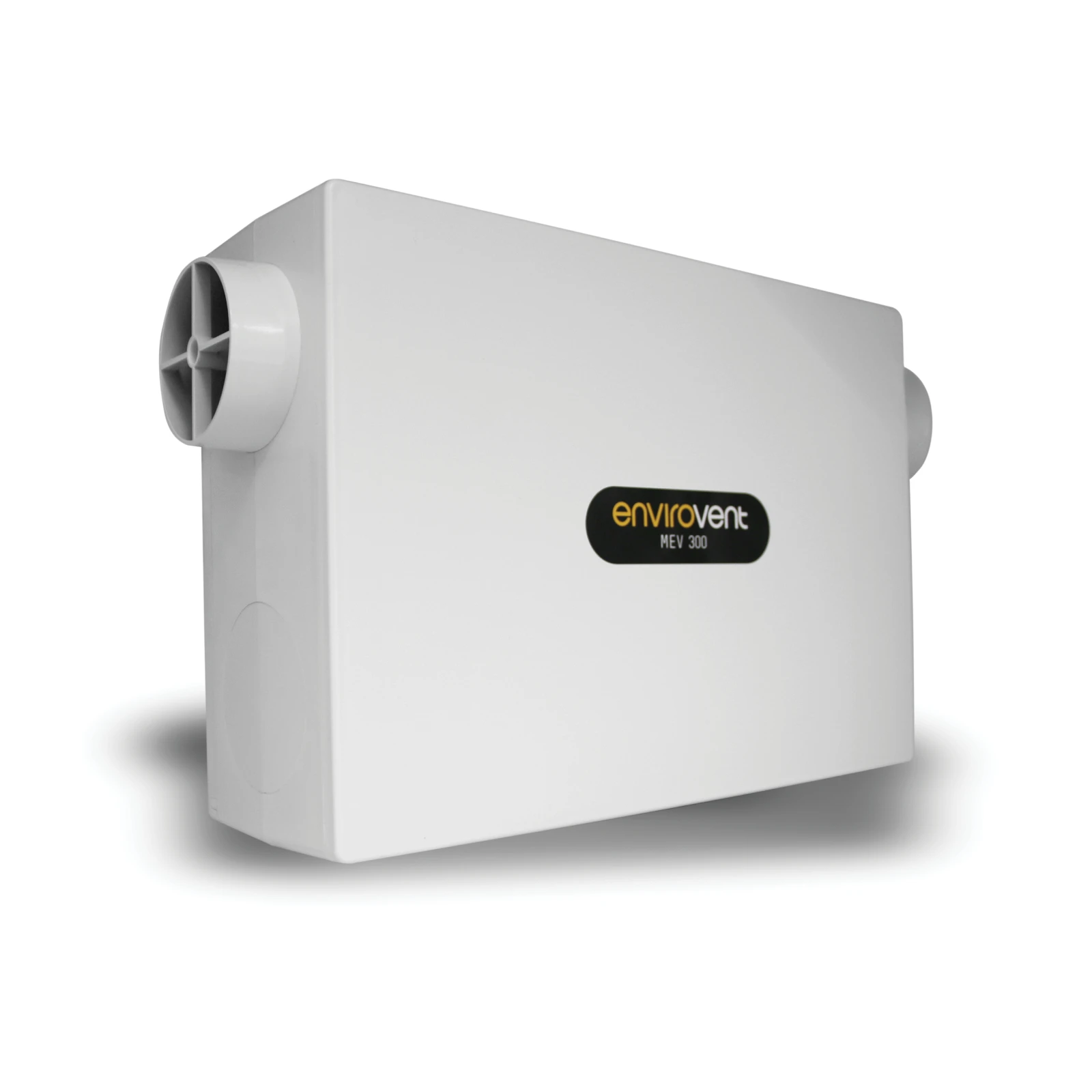

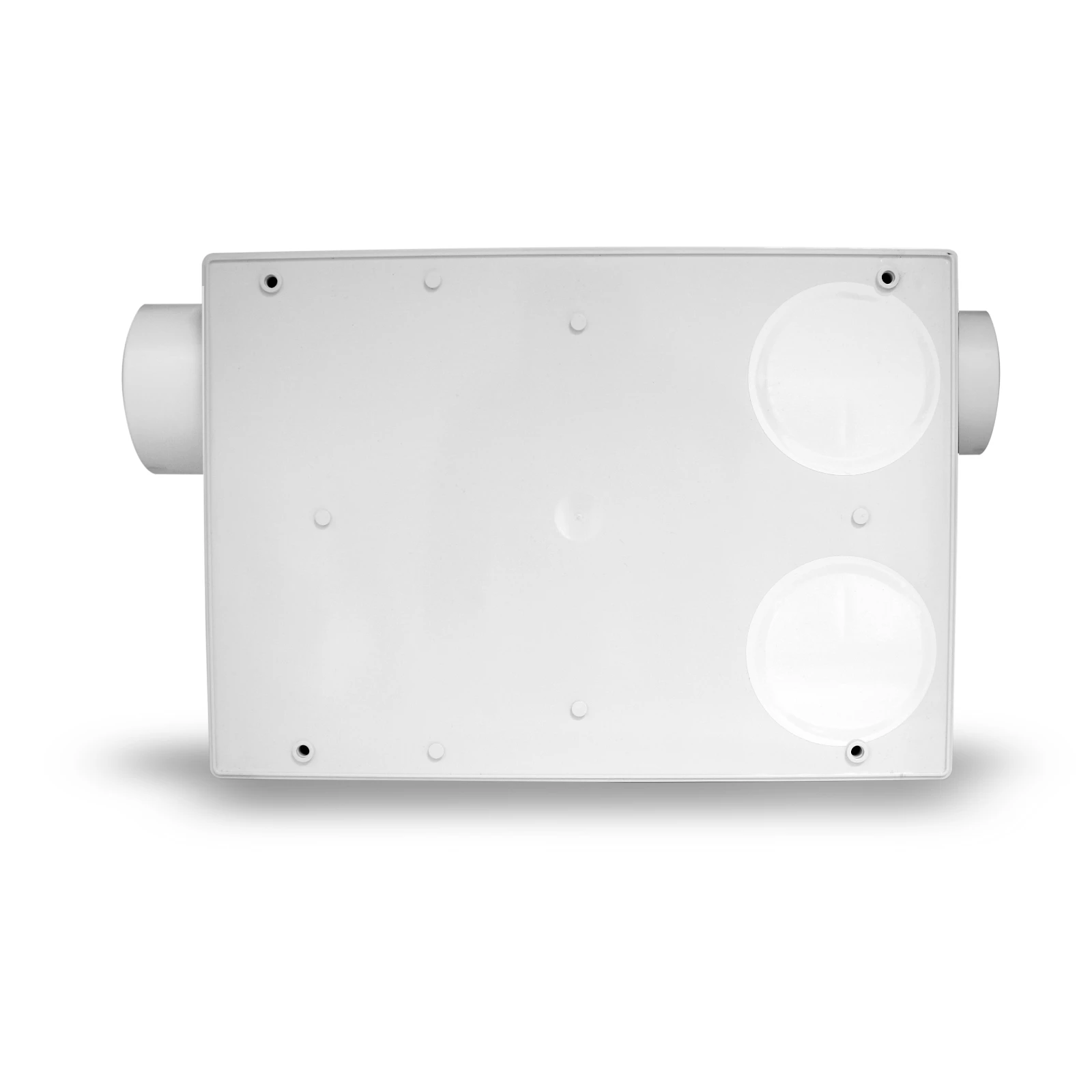

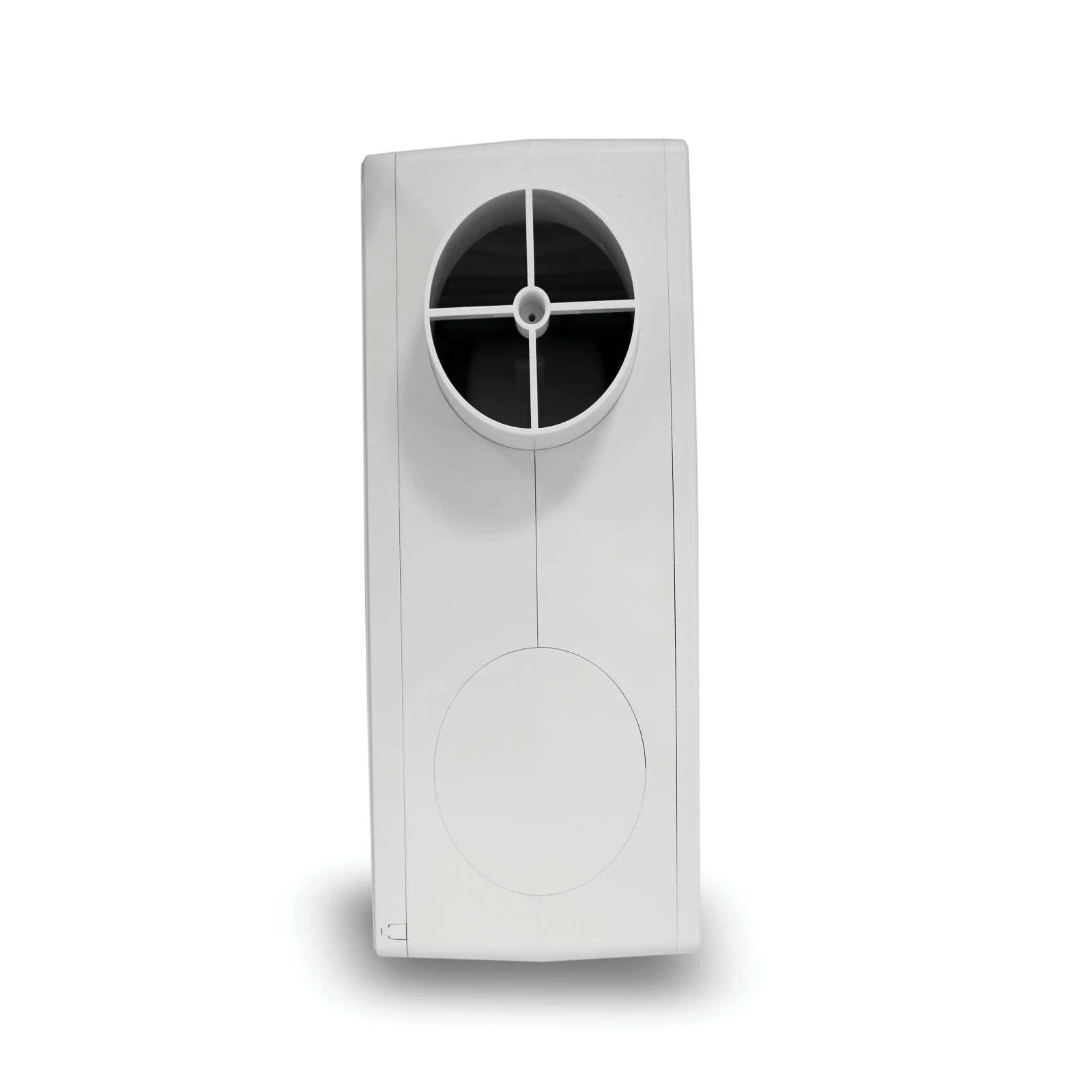

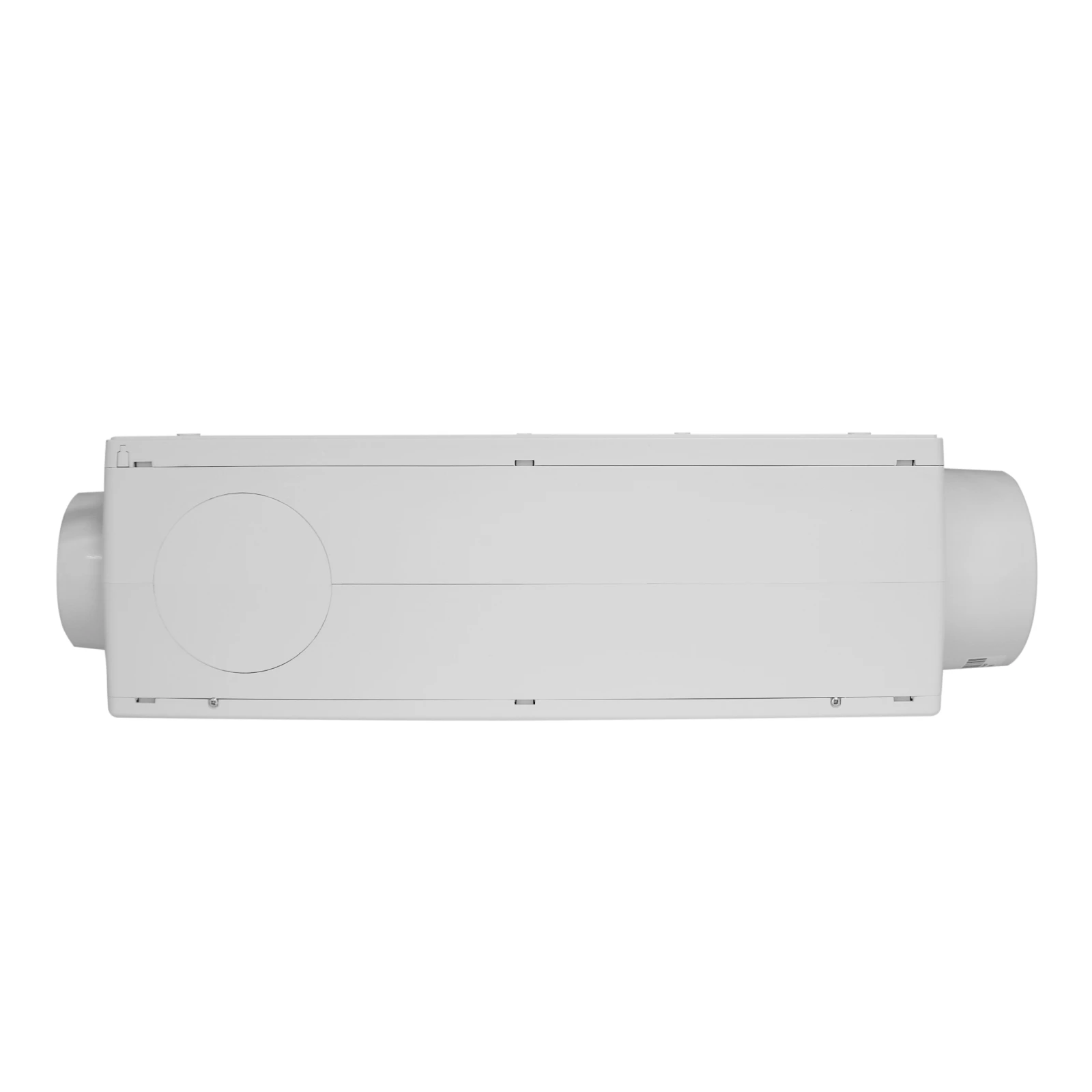

MEV300

The MEV300 is a continuous running, centralised whole dwelling mechanical extract ventilation system. It is versatile, compact and delivers high airflow performance. Ideal for houses, apartments and other communal residences, such as care homes and student accommodation. It is designed with multiple extract points to simultaneously draw moisture-laden air from wet rooms. It incorporates our Intellitrac technology which ensures airflow performance and humidity levels are controlled all year round. Intellitrac is a unique intelligent vapour tracking control that constantly monitors the humidity levels within the wet room. As humidity rises and falls, the motor speed rises and falls in direct correlation to ensure humidity levels do not increase. The MEV300 range achieves extremely low Specific Fan Powers down to 0.19 W/l/s and are ideal for applications up to Kitchen plus 6 additional wet rooms.

Key Features

Low Specific Fan Power (SFP)

Down to 0.19W/l/s

High Airflow Performance

Max Airflow 103 l/s

Intellitrac Relative Humidity Control

No User Interaction Required

Different Control Options Available

Hard-wired or Wireless

0-10V Input on Wireless Units

Compatible with AirSens®

Quiet Running

Max level 25 dB(A) @ 3m

Fast Track® Model (FT)

Suitable with Semi-rigid Ducting

Flexible Installation

Ceiling, Wall and Floor Mounting Options

Product Overview

Max Airflow (l/s)

103

Ducting / Connection Size (mm)

100, 90

Warranty

2

IP Rating

IPX2

SAP PCDB Listed

Yes

Passivhaus Certified

No

Key Features

  • Low Specific Fan Power (SFP)

    Low Specific Fan Power (SFP) down to 0.19W/l/s showing high levels of efficiency with less energy being consumed during use.

  • High Airflow Performance

    Max airflow of up to 103 l/s with up to 6 spigot connections on the unit make it a great solutions for a variety of different sized properties.

  • Intellitrac Relative Humidity Control

    Intellitrac is a unique intelligent vapour tracking control that constantly monitors the humidity levels within the wet room. As humidity rises and falls, the motor speed rises and falls in direct correlation, this ensures humidity levels do not increase. This feature runs constantly in the background meaning the end user does not need to interact with the fan.

  • Different Control Options Available

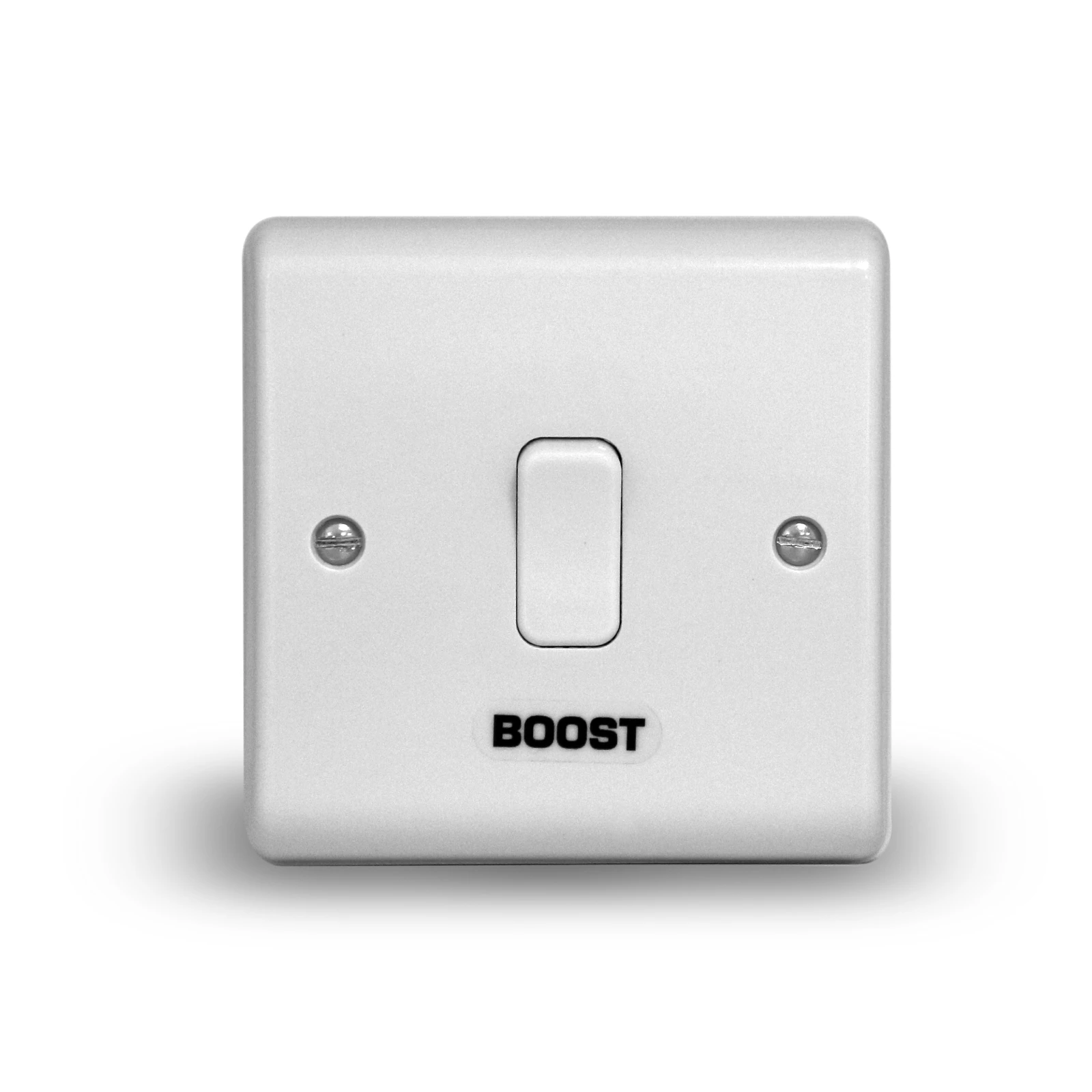

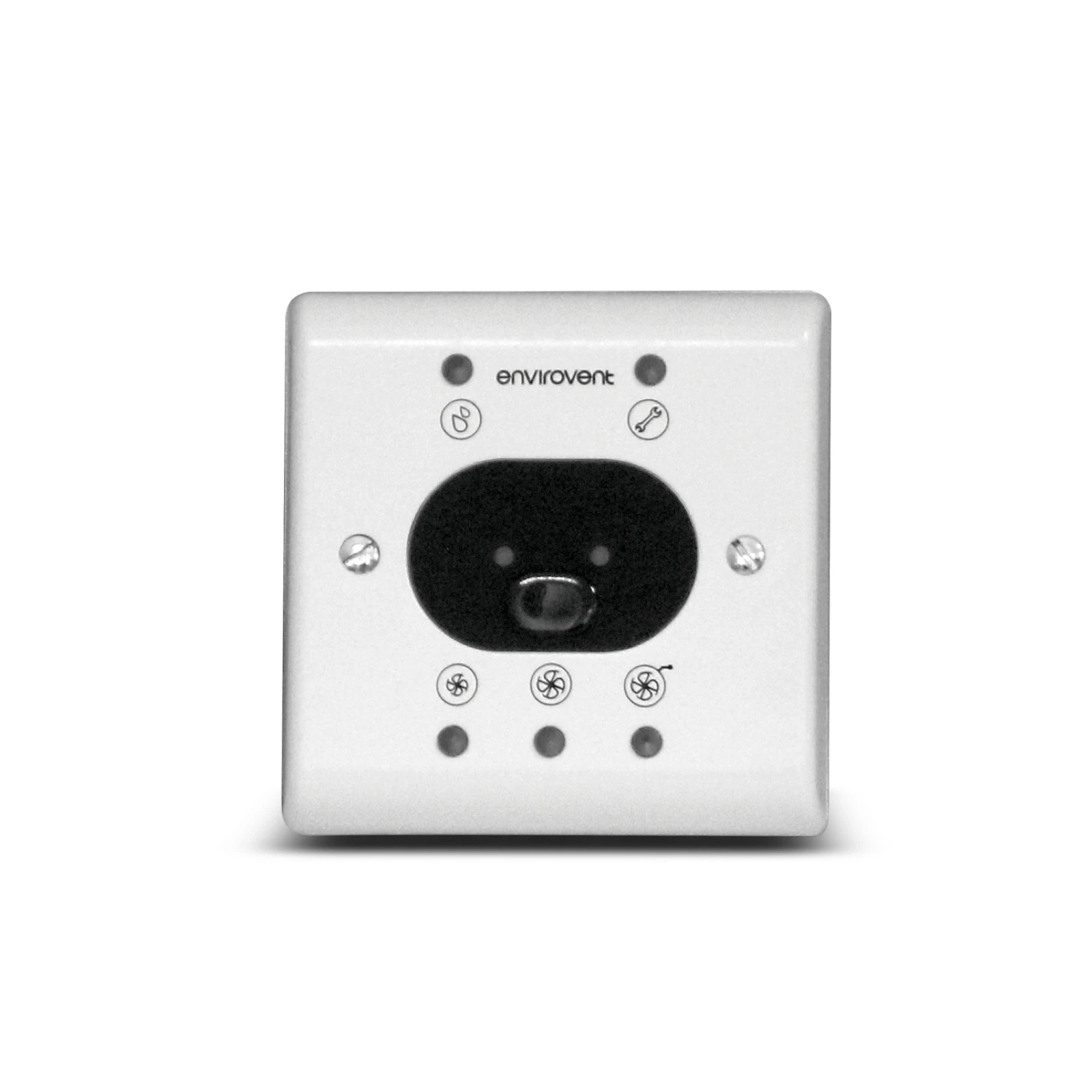

    MEV units can be supplied with either a hardwired control or wireless control depending on your preference.

  • 0-10V Input on Wireless Units

    0-10V variable control input on wireless units for use with external sensors such as the AirSens® range of products.

  • Quiet Running

    Exceptionally quiet running units with breakout sound levels below 25 dB(A) at 3m under free field condition.

  • Fast Track® Model (FT)

    MEV has been designed with semi-rigid ducting in mind, with a specific model making compatibility with semi-rigid ducting as simple as possible. This will save you both time and money when it comes to installation.

  • Flexible Installation

    Flexible installation and mounting options including wall, floor and ceiling.

Product Documents

Product Codes

Product CodeProduct Description
MEV300Standard
MEV300FTStandard, Suitable for Fast Track Ducting (Comes with 3 x 100mm-90mm Connectors)
MEV300-WWireless Control
MEV300FT-WWireless, Suitable for Fast Track Ducting (Comes with 3 x 100mm-90mm Connectors)
