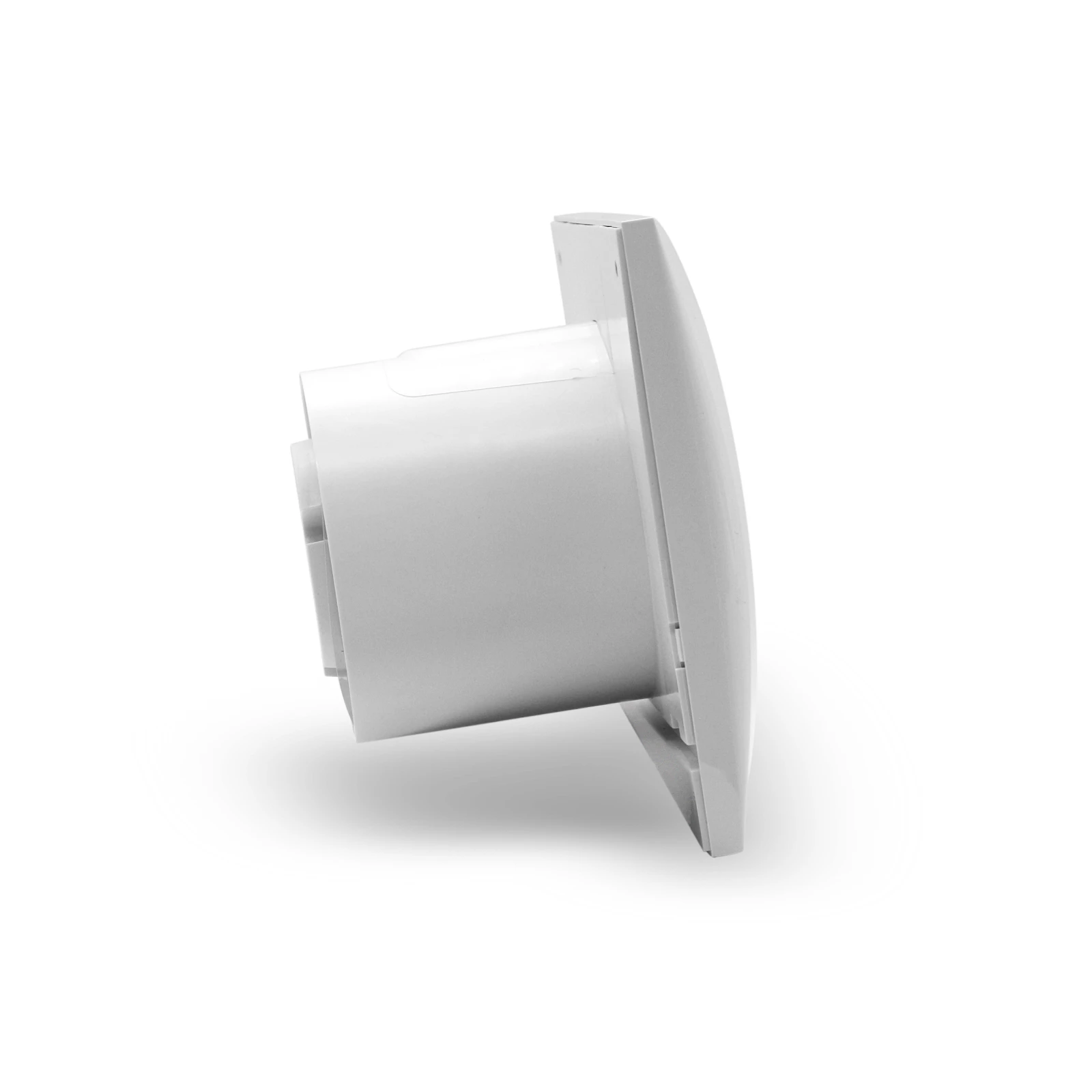

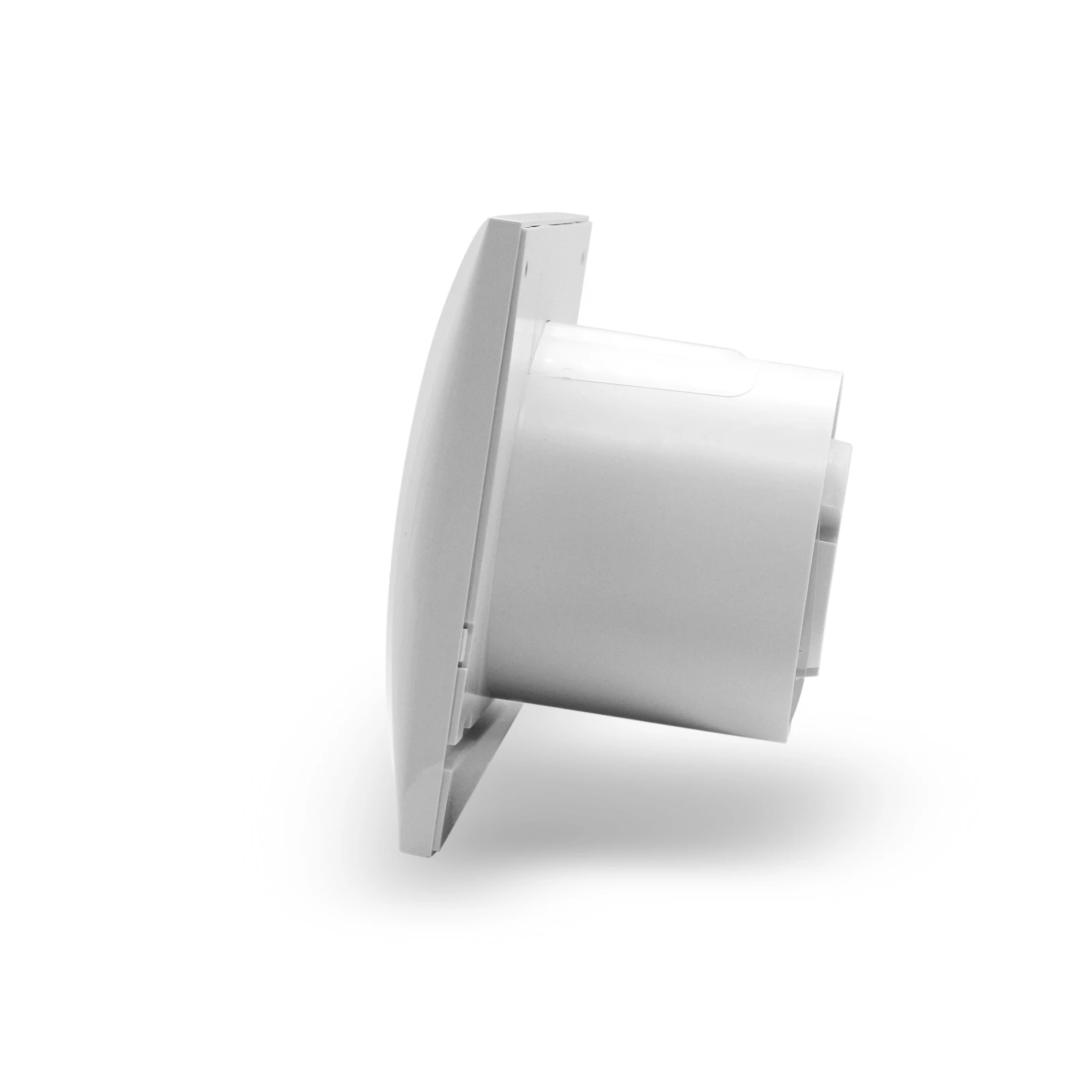

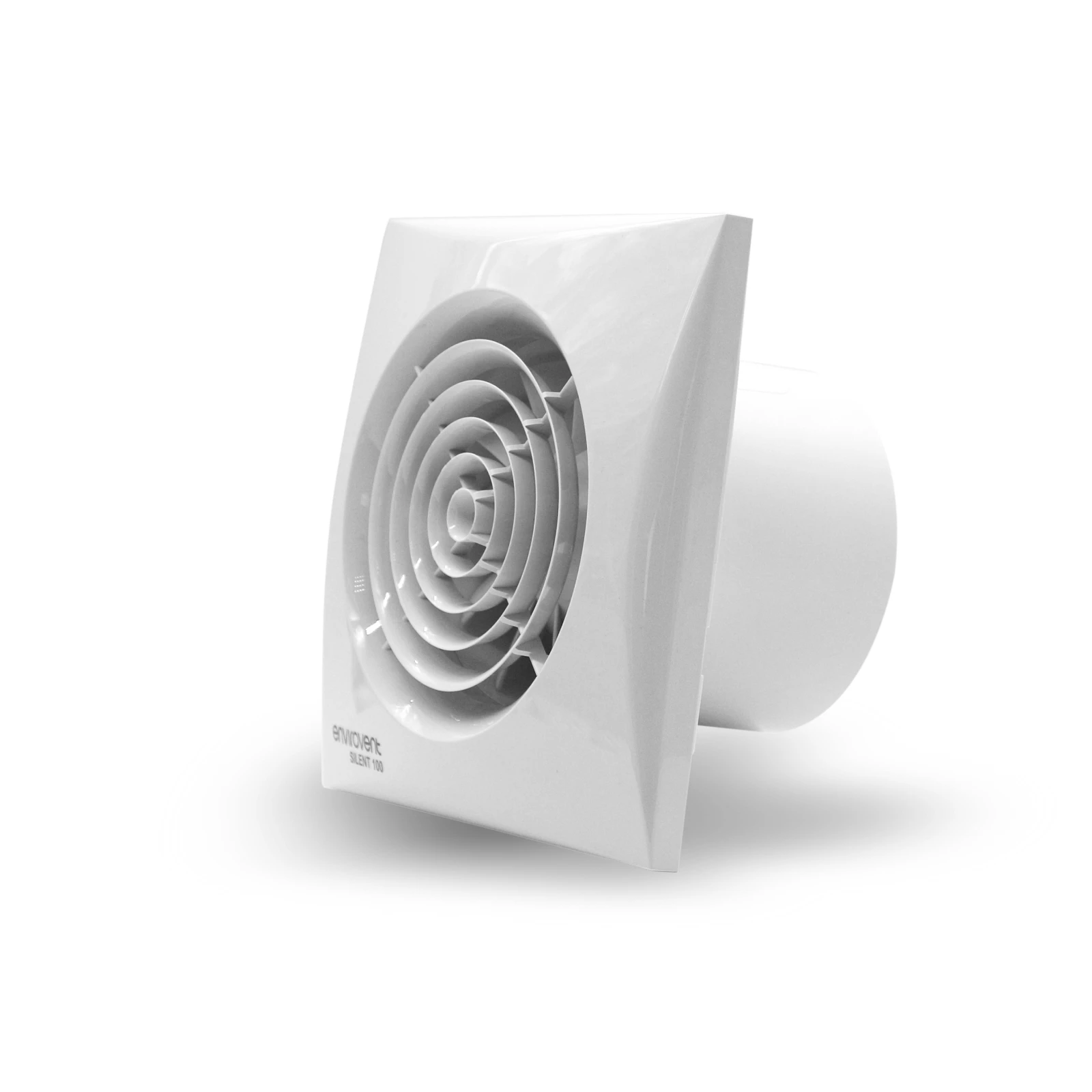

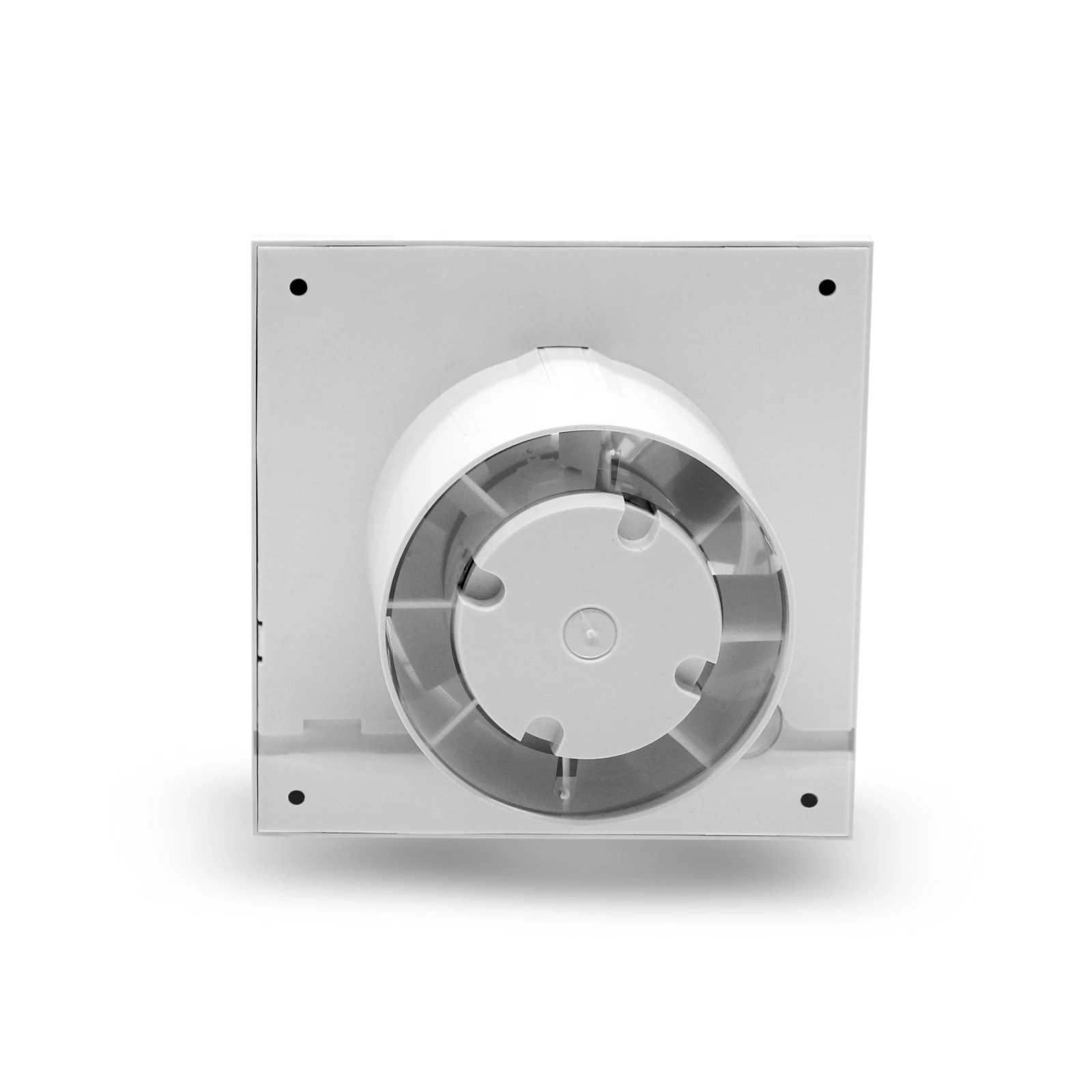

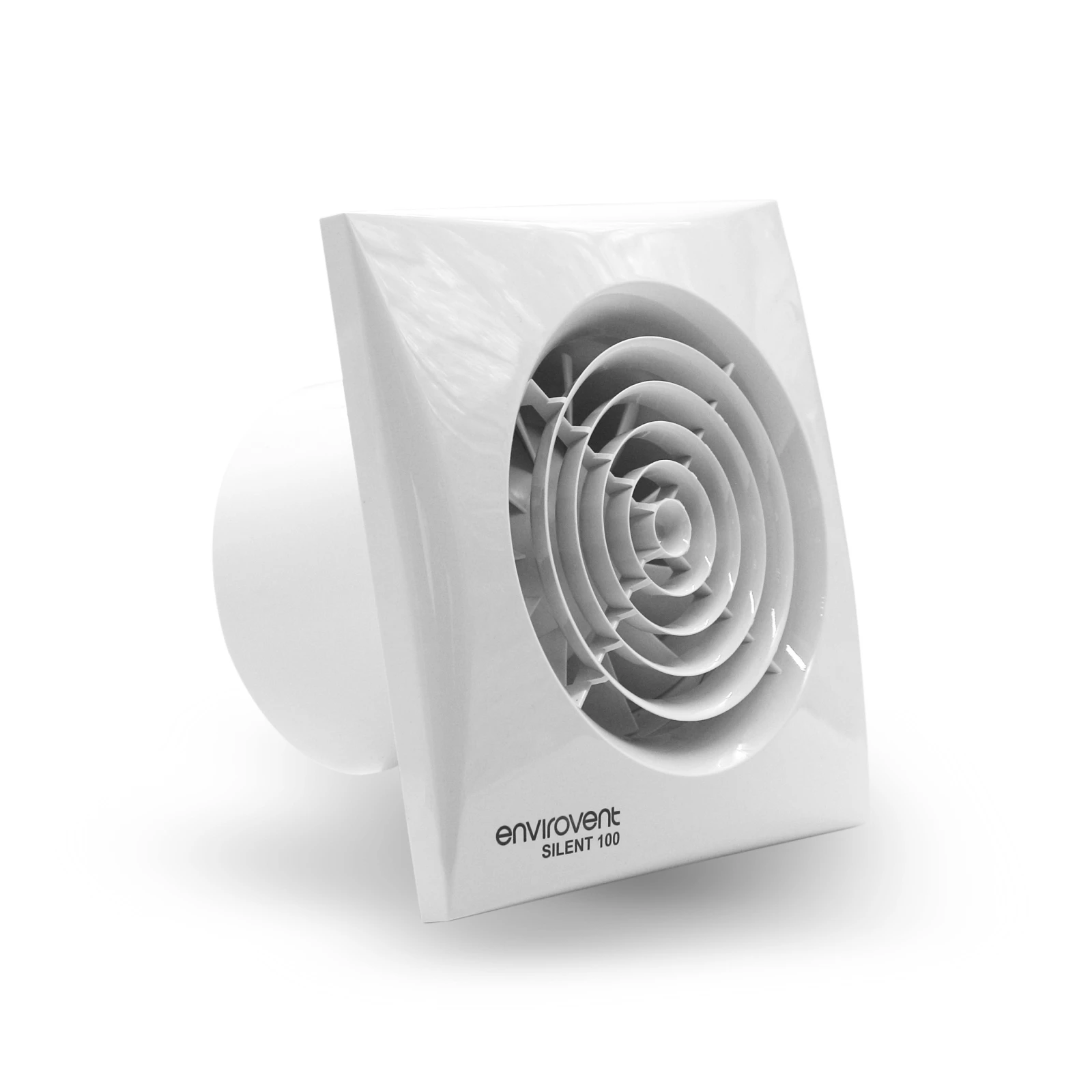

SILENT 100

The SILENT 100 is a 100mm domestic axial bathroom extractor fan for wall, ceiling and window installations, designed to solve ventilation problems in WCs and bathrooms. This range is fitted with motors mounted on silent elastic blocks, which means the fans are incredibly quiet running but still have exceptional airflow performance. All models are fitted with pilot light, backdraught shutter and airflow guide vanes to improve pressure development and performance. The SILENT 100 extractor fan is available with numerous additional quality features including optional adjustable over-run timer, adjustable humidity sensor, SELV and PIR models.

Key Features

5 or 7-Year Parts Only Warranty

Model Depending

Colour Options Available

White, Black or Silver

SELV Models Available

Quiet Running

Only 26.5 dB(A) @ 3m

Adjustable Humidity Sensor

Adjustable Between 60% - 90%

Adjustable Over-run Timer

Adjustable Between 1 - 30 Minutes.

Intelligent Over-Run Timer

No Nuisance Running

PIR (Motion) Sensor

No User Interaction Required

Product Overview

Max Airflow (l/s)

26

Ducting / Connection Size (mm)

100

Warranty

5, 7

IP Rating

IPX4, IP57

Request a Quote Find a Stockist
Request a Design Service
CONFIG ON EasyVent

Key Features

  • 5 or 7-Year Parts Only Warranty

    Increased 7-year warranty for all 'S', 'T' and 'HT' models, all others models come with 5 years as standard.

  • Colour Options Available

    Colour Options Available including White, Black or Silver.

  • SELV Models Available

    There are SELV models available with additional features. These fans are connected to remote sited transformers. This allows greater installation flexibility as these fans can be installed in additional wet zones.

  • Quiet Running

    This range of fans delivers exceptionally low noise levels with only 26.5 dB(A) @ 3m.

  • Adjustable Humidity Sensor

    Adjustable humidity sensor that can be adjusted between 60 - 90% relative humidity. The extract fan will continue to run until the selected level of relative humidity has been reached.

  • Adjustable Over-run Timer

    Over-run timer that can be adjusted between 1 - 30 minutes. This means the fan will continue to run after being switched off to ensure humidity is reduced.

  • Intelligent Over-Run Timer

    Calculates the over-run time based on the amount of time it has been running, this prevents the fan from nuisance running and whilst also reducing energy consumption.

  • PIR (Motion) Sensor

    The PIR model detects movement within the wet room, once movement is detected it will automatically activate the fan. This removes the need for any user interaction.

Product Documents

Product Codes

Product CodeProduct Description
SIL100SStandard, White
SIL100TAdjustable Over-run Timer, White

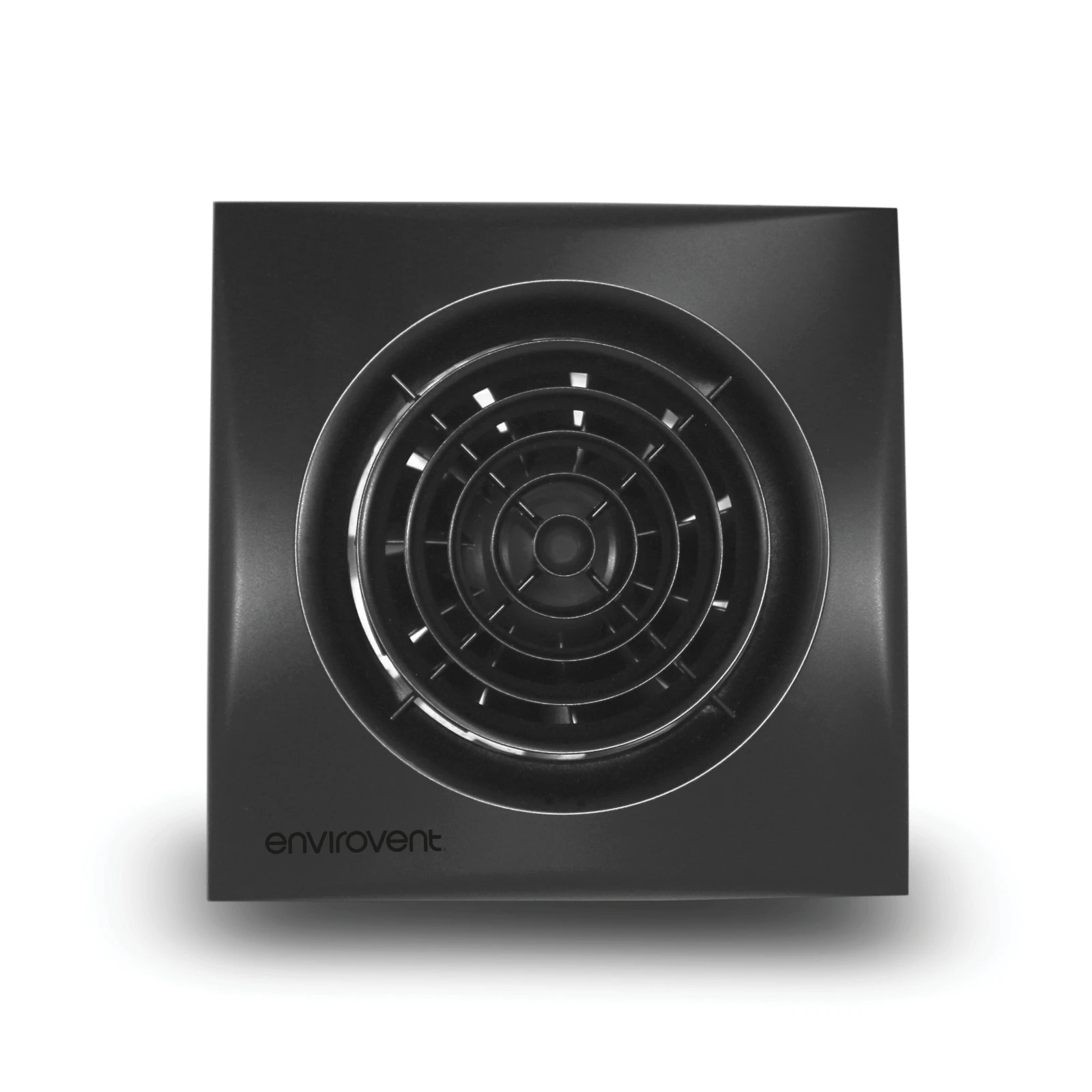

SIL100T-BAdjustable Over-run Timer, Black
SIL100ITIntelligent Timer, White
SIL100HT-BAdjustable Humidity Sensor, Adjustable Over-run Timer, Black
SIL00HTAdjustable Humidity Sensor, Adjustable Over-run Timer, White
SIL100PIRPIR Sensor, White

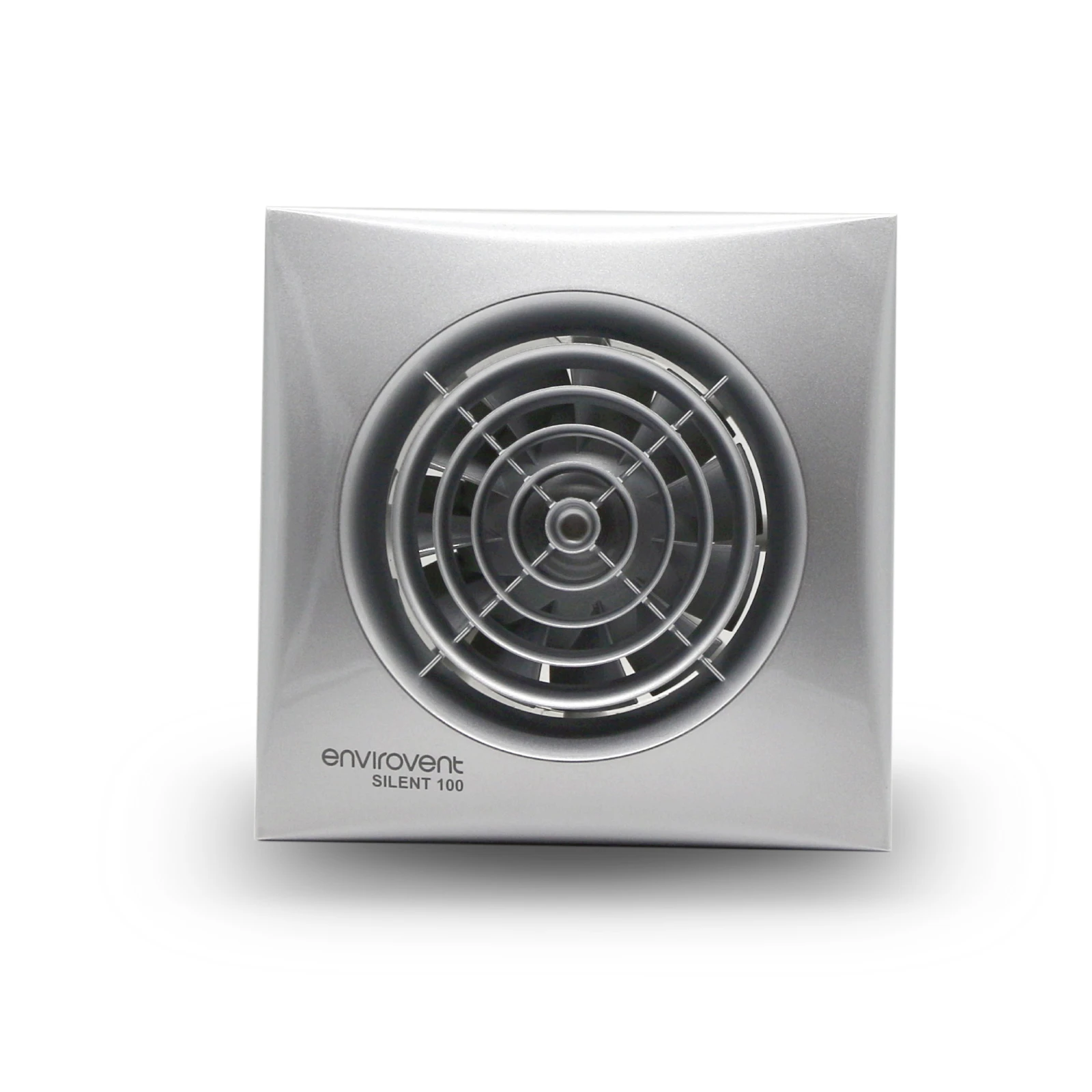

SIL100SSStandard, Silver
SIL100STAdjustable Over-run Timer, Silver
SIL100S12VSELV, Standard, White
SIL100T12VSELV, Adjustable Over-run Timer, White
SIL100P12VSELV, Pullcord, White
SIL100TP12VSELV, Adjustable Over-run Timer, Pullcord, White
SIL100HTP12VSELV, Adjustable Humidity Sensor, Adjustable Timer, Pullcord, White
