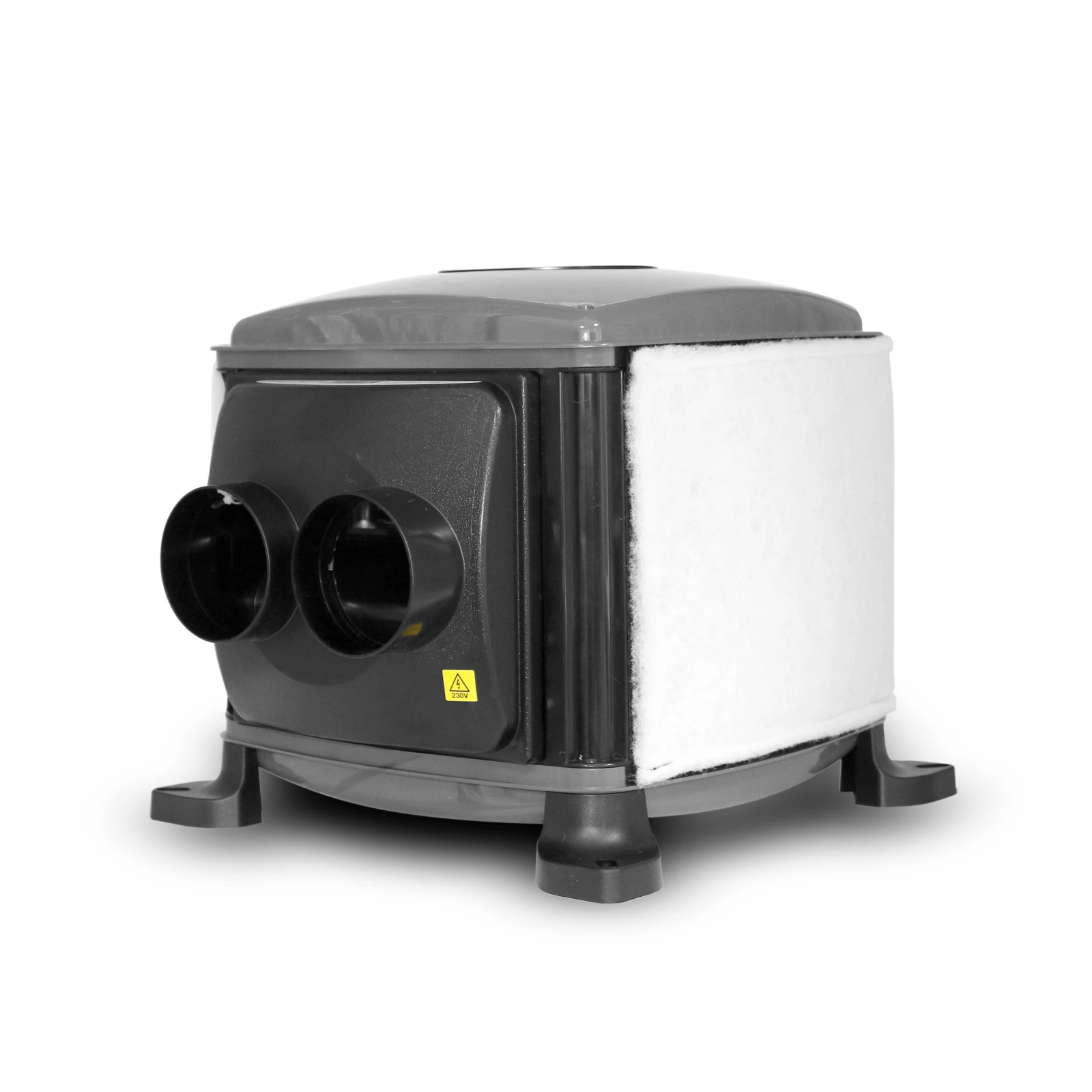

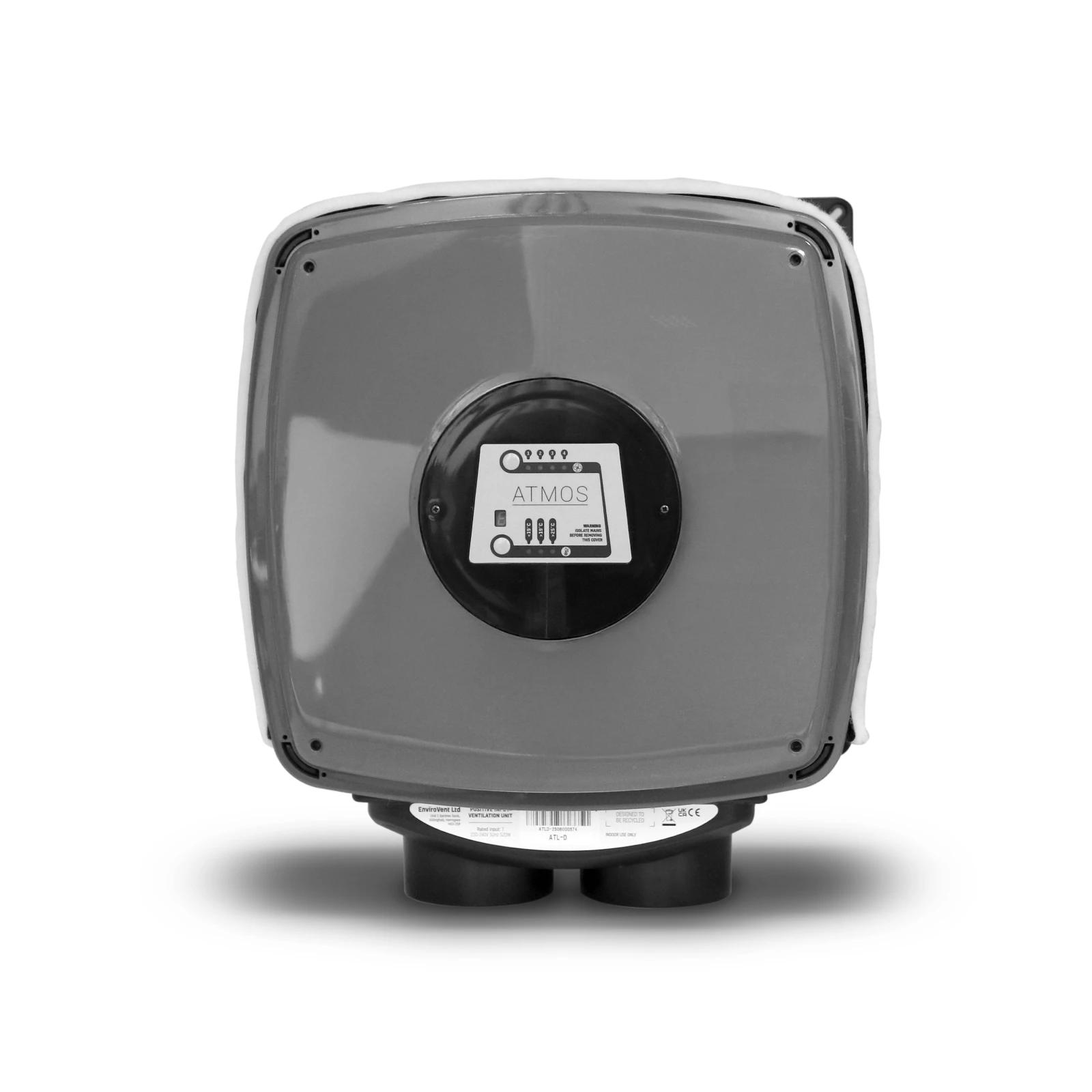

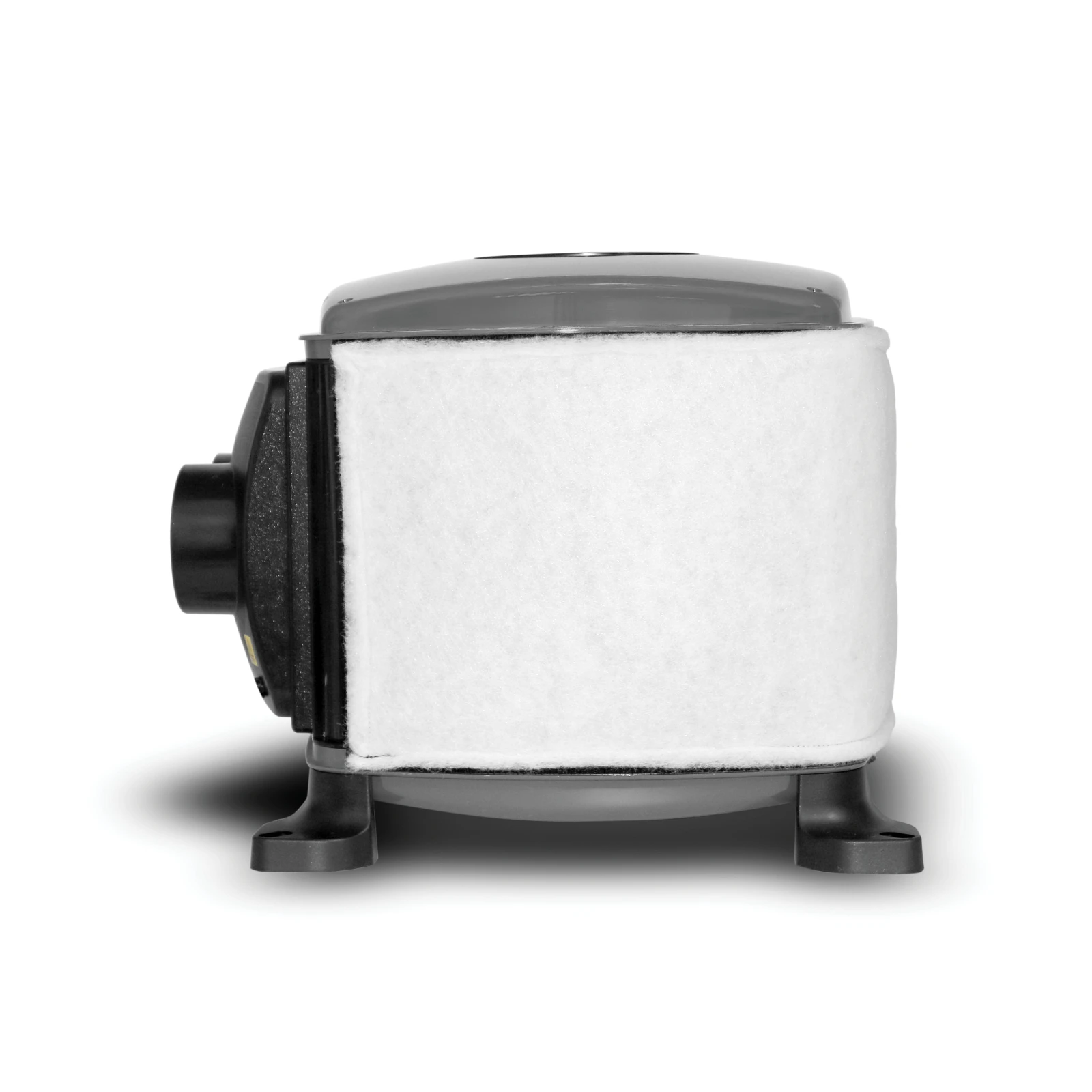

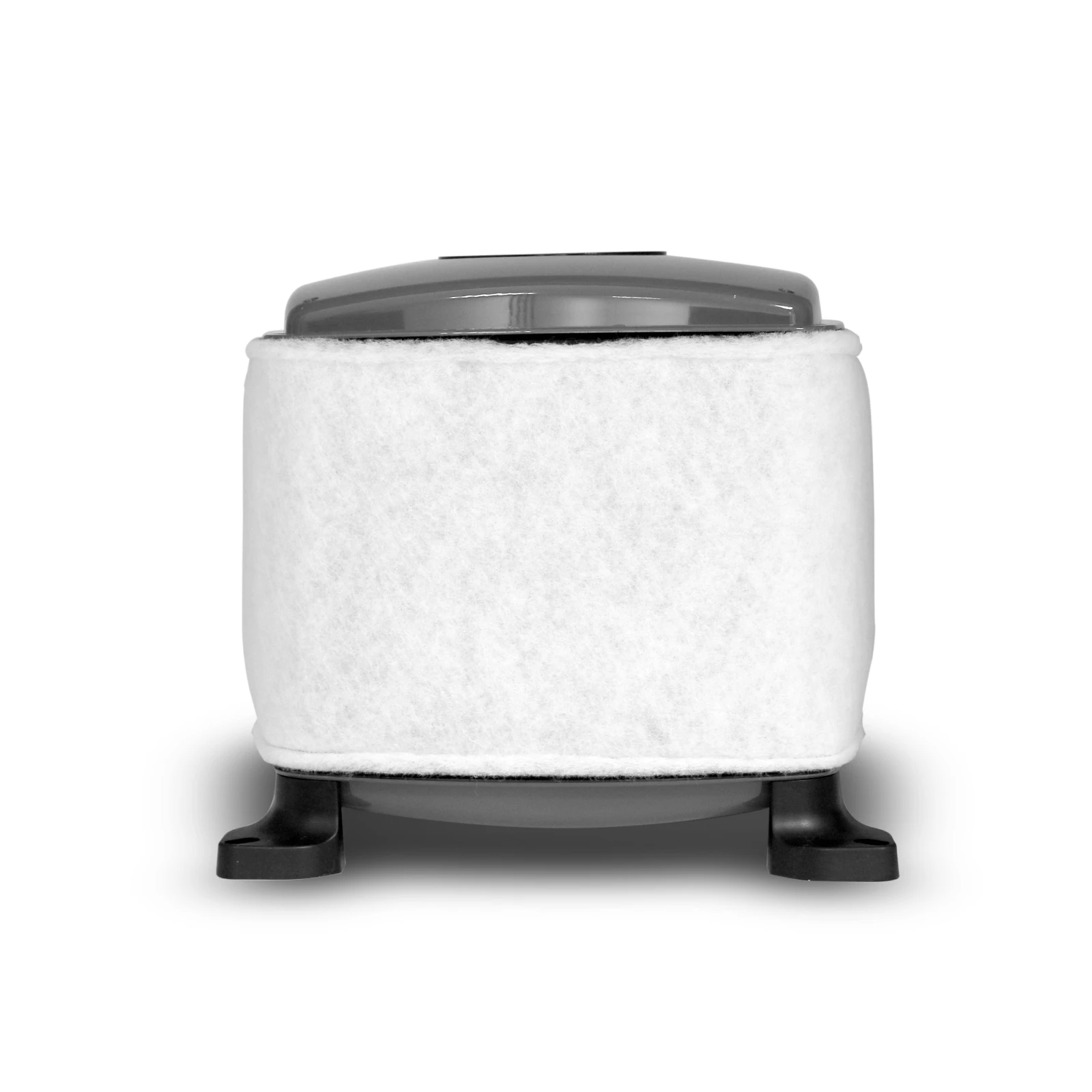

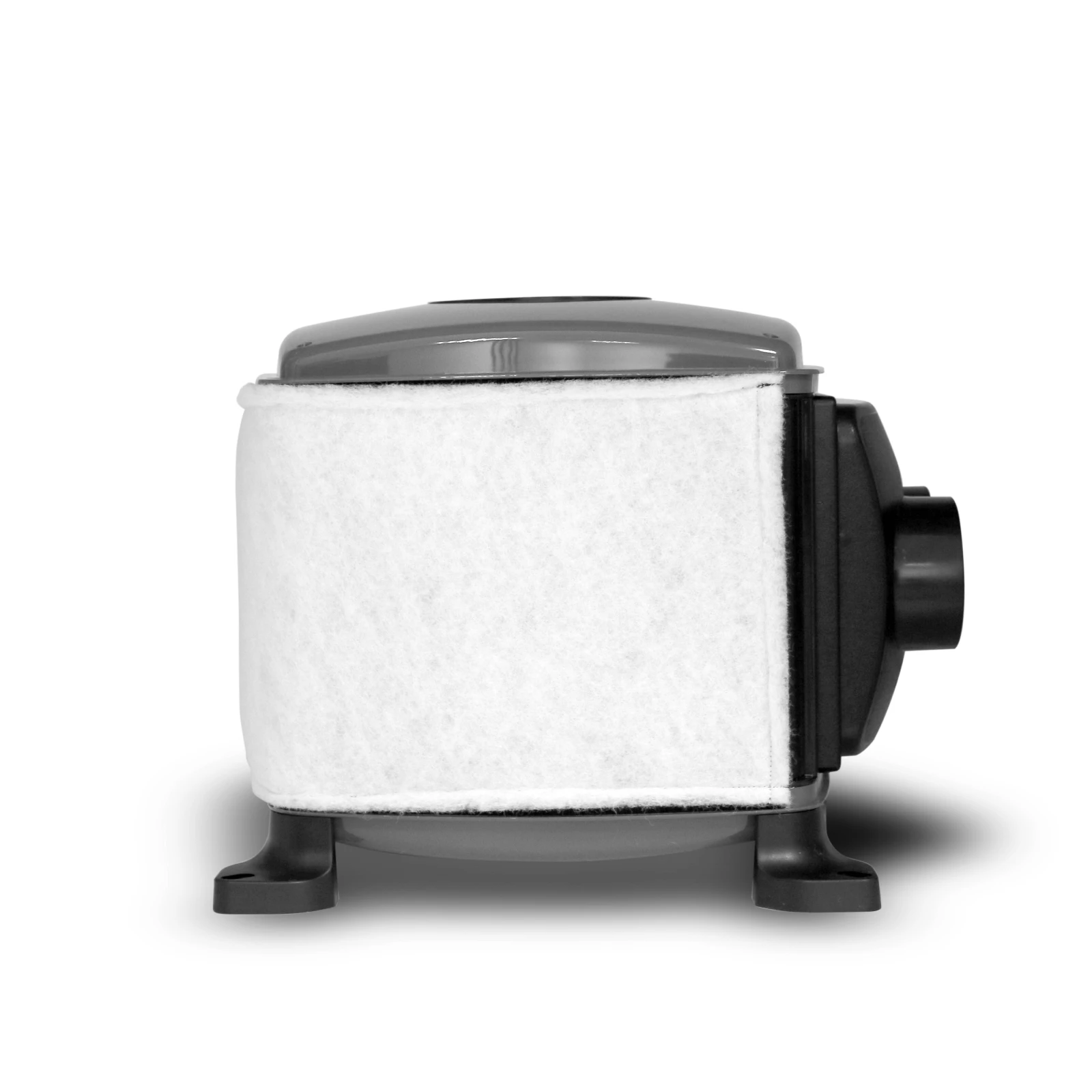

Atmos® Dual
Atmos® Dual units are loft mounted Multiple Input Ventilation (MIV®) systems which are designed to supply filtered air into the property from two separate locations, this helps solve ventilation issues in properties with irregular shaped hallways or where air is required to be supplied into a remote habitable room. The constant flow of filtered air will dilute, displace and replace moisture-laden air within the property. This helps to control humidity levels, so that condensation, mould and other indoor air contaminants are significantly reduced, helping to create a healthy indoor environment. The Atmos® Dual units are supplied with an ISO ePM2.5 50% (M6) filter which provides enhanced protection against harmful contaminants such as fine dust, large bacteria, spores and pollen. All Atmos® units come fitted with an intelligent 500W heater to help temper incoming air in the colder months, as well as a data logger to provide landlords and homeowners with important information about the amount of time the unit has been running. This unit has a Summer Shutdown mode which helps prevent overheating in warmer months of the year. When temperatures in the loft rise above 25°C the unit will temporarily stop supplying air into the property which will help keep temperatures in the property from rising further. Once temperatures reduce the unit will return to its normal operating modes.
Key Features
10-Year Warranty
Parts and Labour
High Base Level of Filtration
ISO ePM2.5 50% (M6)
Different Control Options Available
App or Wireless
Intelligent Comfort Heater as Standard
500W
Helps Prevent Overheating
Summer Bypass Mode
0-10V Input and Compatible with AirSens®
Demand Control Ventilation
Variable Speed Control
Tailored Airflows for Individual Property Requirements
Professional Installations
envirovent® or Approved envirovent® Engineer
Product Overview
Max Airflow (l/s)
36
Ducting / Connection Size (mm)
125
Warranty
10
IP Rating
IPX2
Key Features
10-Year Warranty
Peace of mind for all customers with this extended warranty period. If you encounter any problems, envirovent® will either fix or replace the unit within the 10-year period.
High Base Level of Filtration
The Atmos comes as standard with envirovent's highest PIV level of filtration graded at ISO ePM2.5 50% (M6). This will help keep the unit protected and prevent harmful contaminants such as pollen, dust, spores and larger bacteria from entering the property.
Different Control Options Available
Atmos® has 3 different models, and each are controlled differently. ATL unit is controlled via the unit. ATL-W is controlled using a wireless controller and the ATL-A unit is controlled on any smartphone using the Myenvirovent App.
Intelligent Comfort Heater as Standard
This ensures that the air is not only filtered upon entry of the property, but it is also tempered to a comfortable temperature.
Helps Prevent Overheating
All models have Summer Bypass mode, when temperatures in the loft exceed 25°C, the unit will stop supplying air to prevent overheating.
0-10V Input and Compatible with AirSens®
AirSens® or any 0-10V environmental sensor can be used to create a demand control ventilation unit, this will proportionally increase the units speed depending on the measured concentrations within the property.
Variable Speed Control
Atmos airflows can be selected and adjustred meet the exact requirements for the property it is installed in. There are 4 pre-set speeds that can be selected or the airflow can be variably controlled.
Professional Installations
Every system is supplied and professionally fitted, giving you complete peace of mind the installation has been completed to the highest standard by envirovent® or an envirovent® approved specialist engineer.
Product Documents
Product Codes
| Product Code | Product Description |
|---|---|
| ATL-D | Atmos® Dual with intelligent comfort heater and on-unit control |
| ATL-WD | Atmos® Dual with intelligent comfort heater and wireless control |
| ATL-AD | Atmos® Dual with intelligent comfort heater and app control |
ATMOS® Range
Frequently Asked Questions
The ATMOS® range of units provides fresh, filtered air into a property from a central location, which is often a landing or central space.
The units come with a pulse heater to temper the air, which is then positively pushed around the property, replacing any stale, moist air with renewed air. This circular process continues, helping to reduce condensation and mould in the property.
The ATMOS® range of units includes units suitable for loft mounting, either ducted to atmosphere for Air Source, Inline or multiple input, or for wall mounting.
There are units with hard-wired, wireless or app controls also available.
The ATMOS® is to be installed in a loft space, the ATMOS® Wall is for properties with a low apex, unsuitable roof or for an apartment.
The ATMOS® range of units is available for supply and fit only by Envirovent and carries a 10-year warranty.
The ATMOS® Wall is also available for supply and fit, again carrying a 10-year warranty, or a 5-year warranty for supply only.
All ATMOS® and ATMOS® Wall products come with a filter as standard, with a minimum of ISO Coarse 65%.
Although the ATMOS® and ATMOS® Wall products come with a pulse heater, this is used to temper the air should the temperature outside drop and is not a form of heating to be used within a property.
If the temperature in the property is in excess of 25°C, most of Envirovent ATMOS and ATMOS Wall units will also go into sleep mode to prevent excessively hot air entering the property before switching back on when the temperature drops. If the unit is ducted to the atmosphere, the unit will continue to run all year round.
An ATMOS® can be installed in a three-storey property providing that the layout allows for this. However, there are requirements regarding protected areas in a property with a height of 4.5m or above, which will need to be taken into account.
A wireless ATMOS® with a specialist metal diffuser will be required for such a scenario. Please get in touch with our Technical Department on 01423 810810 option 5 to discuss fire stopping requirements further.
ATMOS® and ATMOS® Wall units will ventilate all rooms directly linked to the unit. If the unit is located in a central position, this should cover the vast majority of rooms.
However, if you have to walk to one room to get to another (i.e. an en-suite, or walking through a living space to a kitchen or other wet room not connected to the hallway or central space) then an additional continuous ventilation option is required in that remote wet room, such as a d-MEV.
ATMOS® and ATMOS® Wall units generally run all of the time, with the exception of the units that go into sleep mode during periods of hot weather.
These are not designed to be obtrusive and provide fresh, filtered air into the property.
