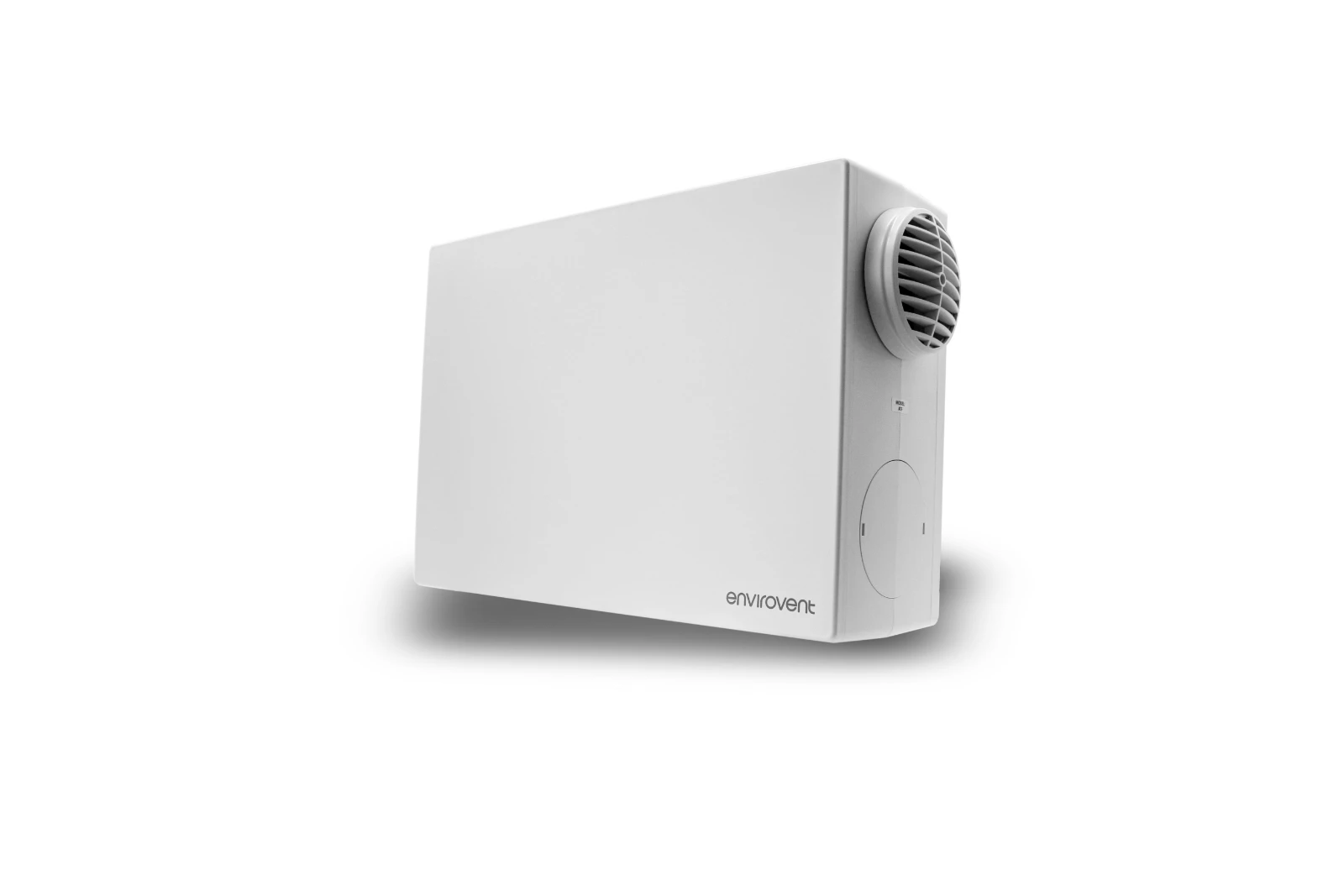

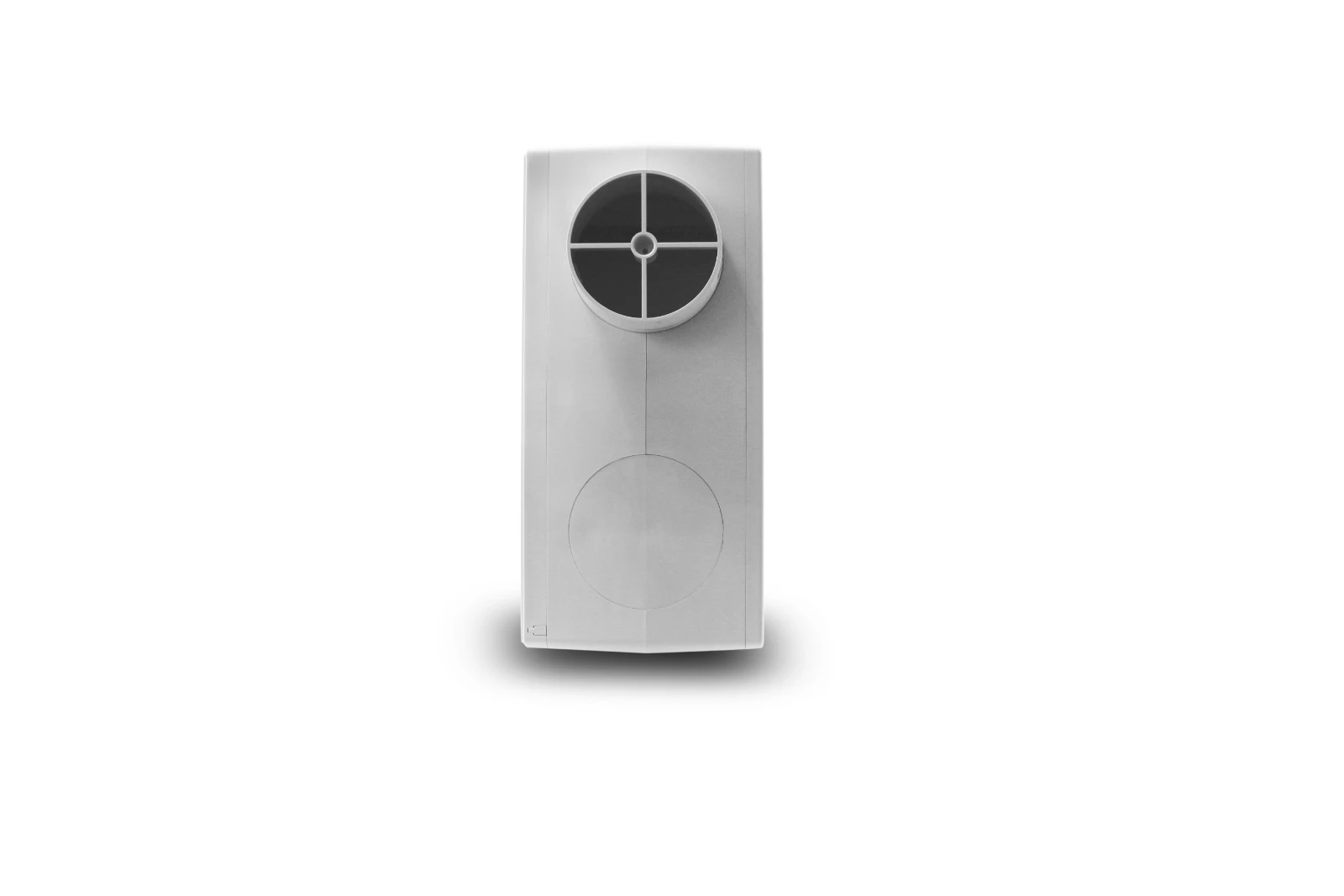

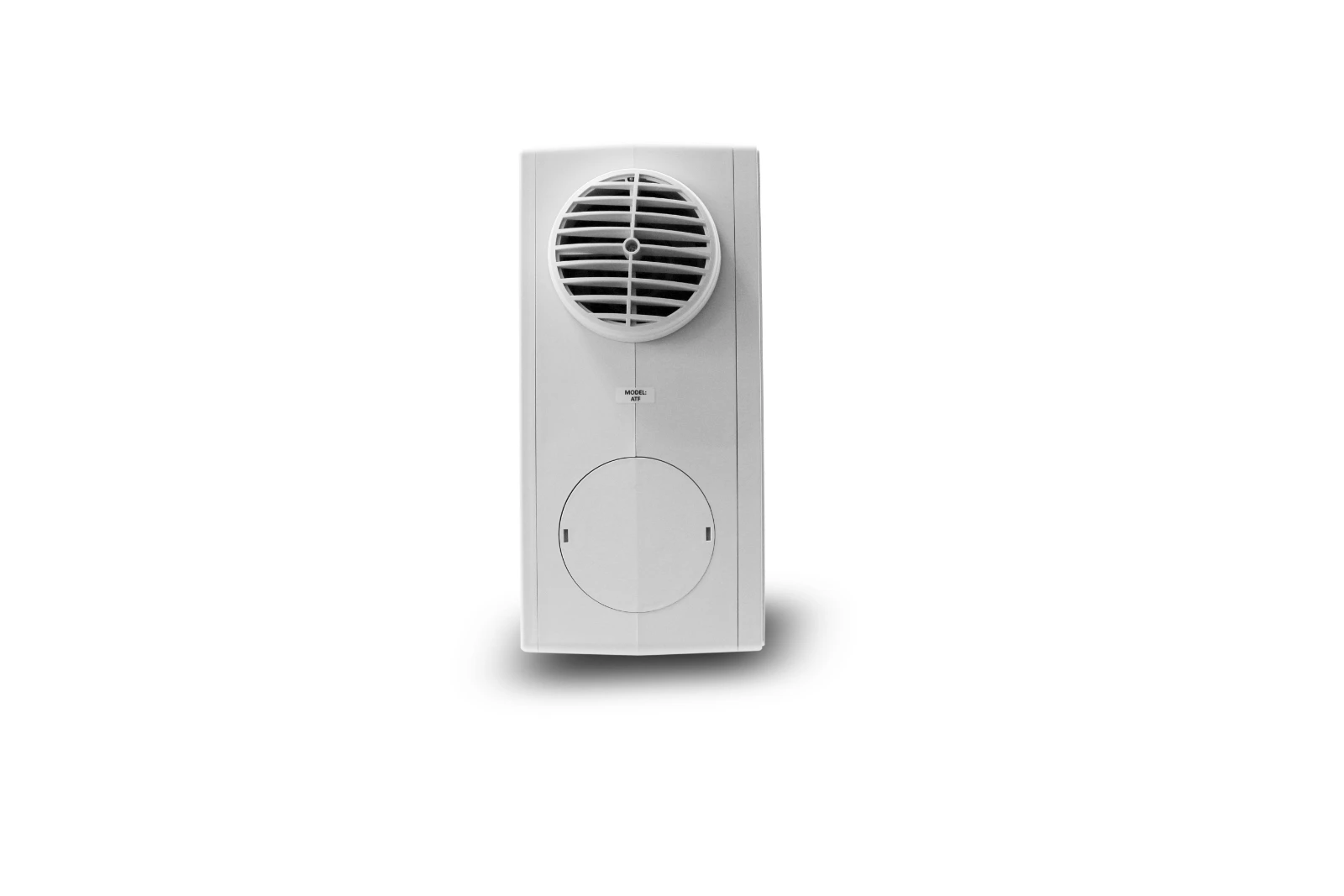

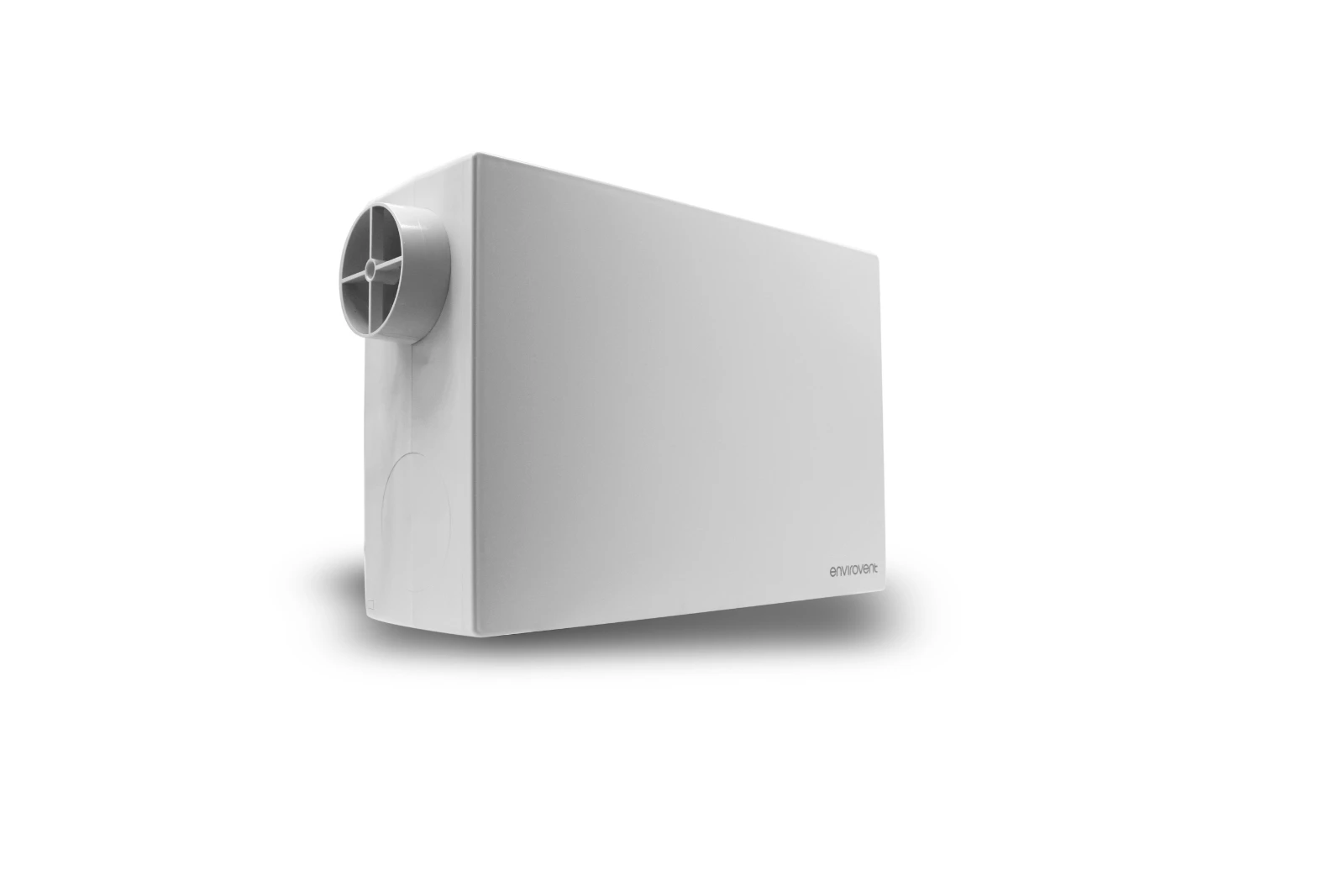

Atmos® Wall

Atmos® Wall units are wall mounted Positive Input Ventilation (PIV) systems, which are designed to supply filtered air into the property from a central location. The constant flow of filtered air will dilute, displace and replace moisture-laden air within the property. This helps to control humidity levels, so that condensation, mould and other indoor air contaminants are significantly reduced helping to create a healthy indoor environment. The Atmos® Wall units are supplied with an ISO ePM10 50% (M5) filter which provides enhanced protection against harmful contaminants such as fine dust, large bacteria, spores and pollen. All Atmos® units come fitted with an intelligent 500W heater to help temper incoming air in the colder months, as well as a data logger to provide landlords and homeowners with important information about the amount of time the unit has been running. This unit has a Summer Shutdown mode which helps prevent overheating in warmer months of the year. When temperatures in the loft rise above 25°C the unit will temporarily stop supplying air into the property which will help keep temperatures in the property from rising further. Once temperatures reduce the unit will return to its normal operating modes.

Key Features

10-Year Warranty

Parts and Labour

High Base Level of Filtration

ISO ePM10 50% (M5)

Different Control Options Available

App or Wireless

Intelligent Comfort Heater

400W

Helps Prevent Overheating

Summer Bypass Mode

0-10V Input and Compatible with AirSens®

Demand Control Ventilation

Variable Speed Control

Tailored Airflows for Individual Property Requirements

Datalogging as Standard

Hours Run Meter

Product Overview

Max Airflow (l/s)

24

Ducting / Connection Size (mm)

100

Warranty

5, 10

IP Rating

IPX2

Key Features

  • 10-Year Warranty

    Peace of mind for all customers with this extended warranty period. If you encounter any problems, envirovent® will either fix or replace the unit within the 10-year period.

  • High Base Level of Filtration

    The Atmos® Wall comes as standard with a high level of filtration graded at ISO ePM10 50% (M5). This will help keep the unit protected and prevent harmful contaminants such as pollen, dust, spores and larger bacteria from entering the property.

  • Different Control Options Available

    Atmos® Wall has 3 different models, and each are controlled differently. ATF unit is controlled via the unit. ATF-W is controlled using a wireless controller and the ATF-A unit is controlled on any smartphone using the Myenvirovent App.

  • Intelligent Comfort Heater

    This ensures that the air is not only filtered upon entry of the property, but it is also tempered to a comfortable temperature.

  • Helps Prevent Overheating

    All models have Summer Bypass mode, when temperatures in the loft exceed 25°C, the unit will stop supplying air to prevent overheating.

  • 0-10V Input and Compatible with AirSens®

    AirSens® or any 0-10V environmental sensor can be used to create a demand control ventilation unit, this will proportionally increase the units speed depending on the measured concentrations within the property.

  • Variable Speed Control

    Atmos airflows can be selected and adjustred meet the exact requirements for the property it is installed in. There are 4 pre-set speeds that can be selected or the airflow can be variably controlled.

  • Datalogging as Standard

    All Atmos® units come with integral datalogging. This tracks exactly how many hours the unit has been running, from the moment it was installeed. This is particularly helpful for landlords who may have disputes with tenants.

Product Documents

Product Codes

Product CodeProduct Description
ATFAtmos® Wall with intelligent comfort heater and on-unit control
ATF-WAtmos® Wall with intelligent comfort heater and wireless control
ATF-AAtmos® Wall with intelligent comfort heater and app control
