ECO DMEV+LC

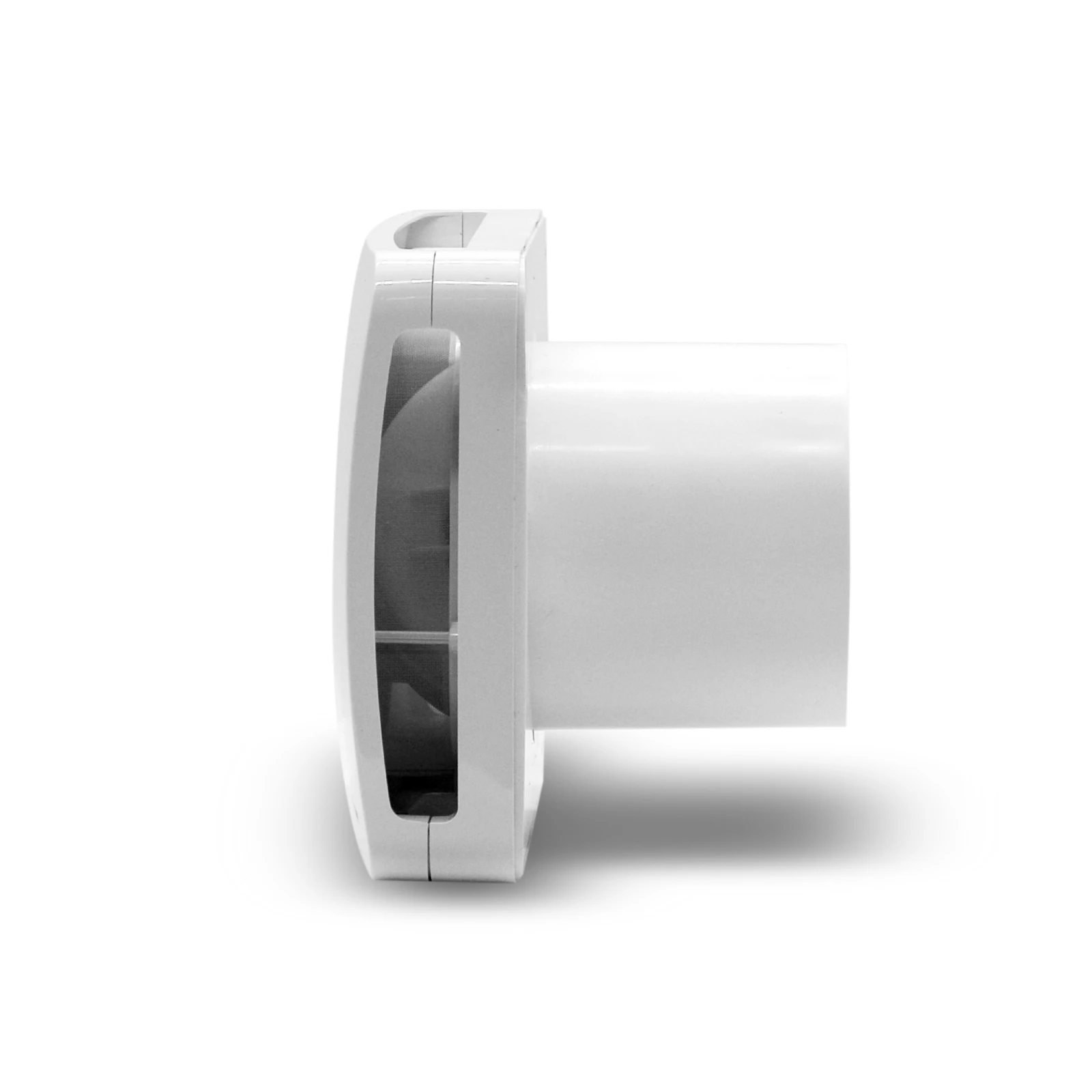

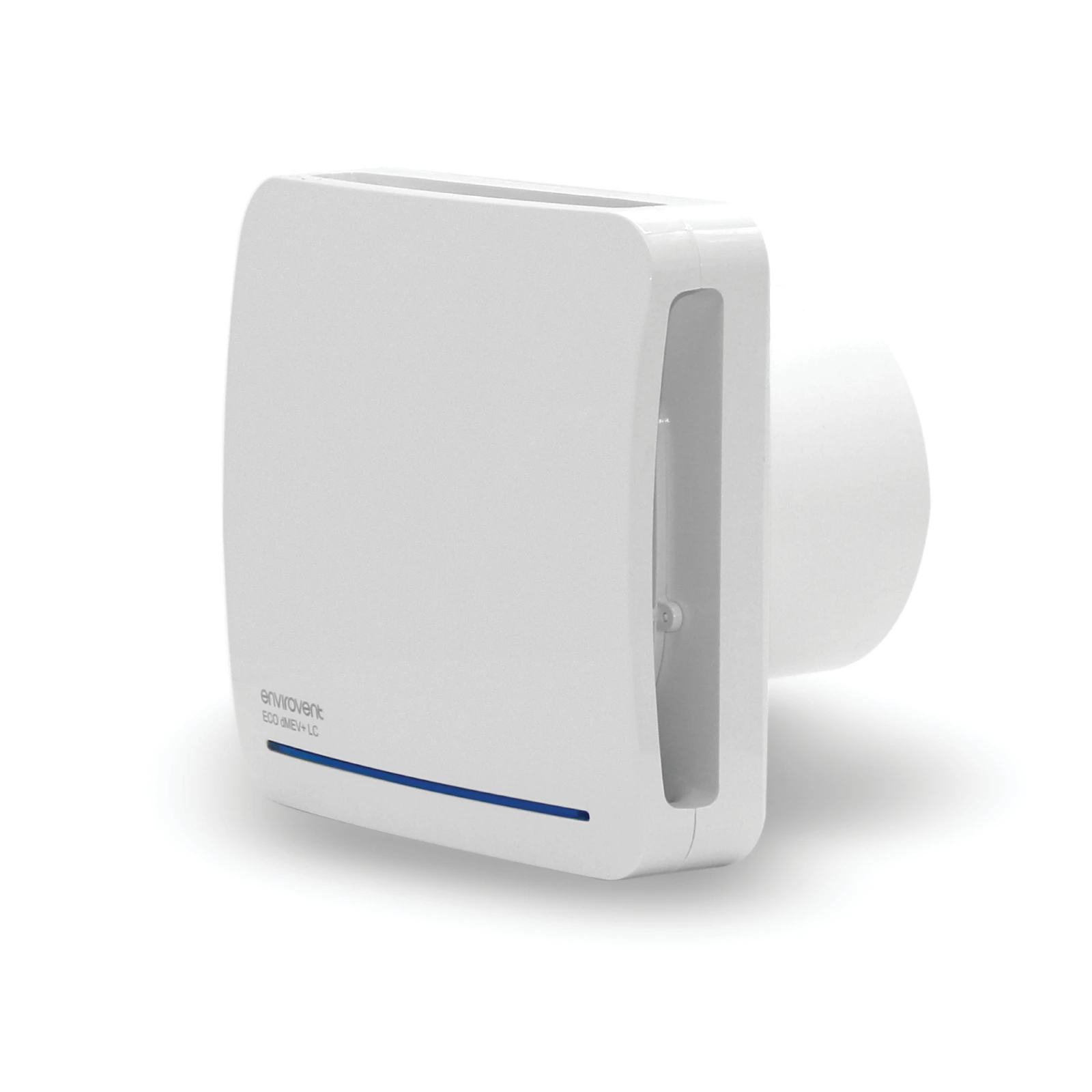

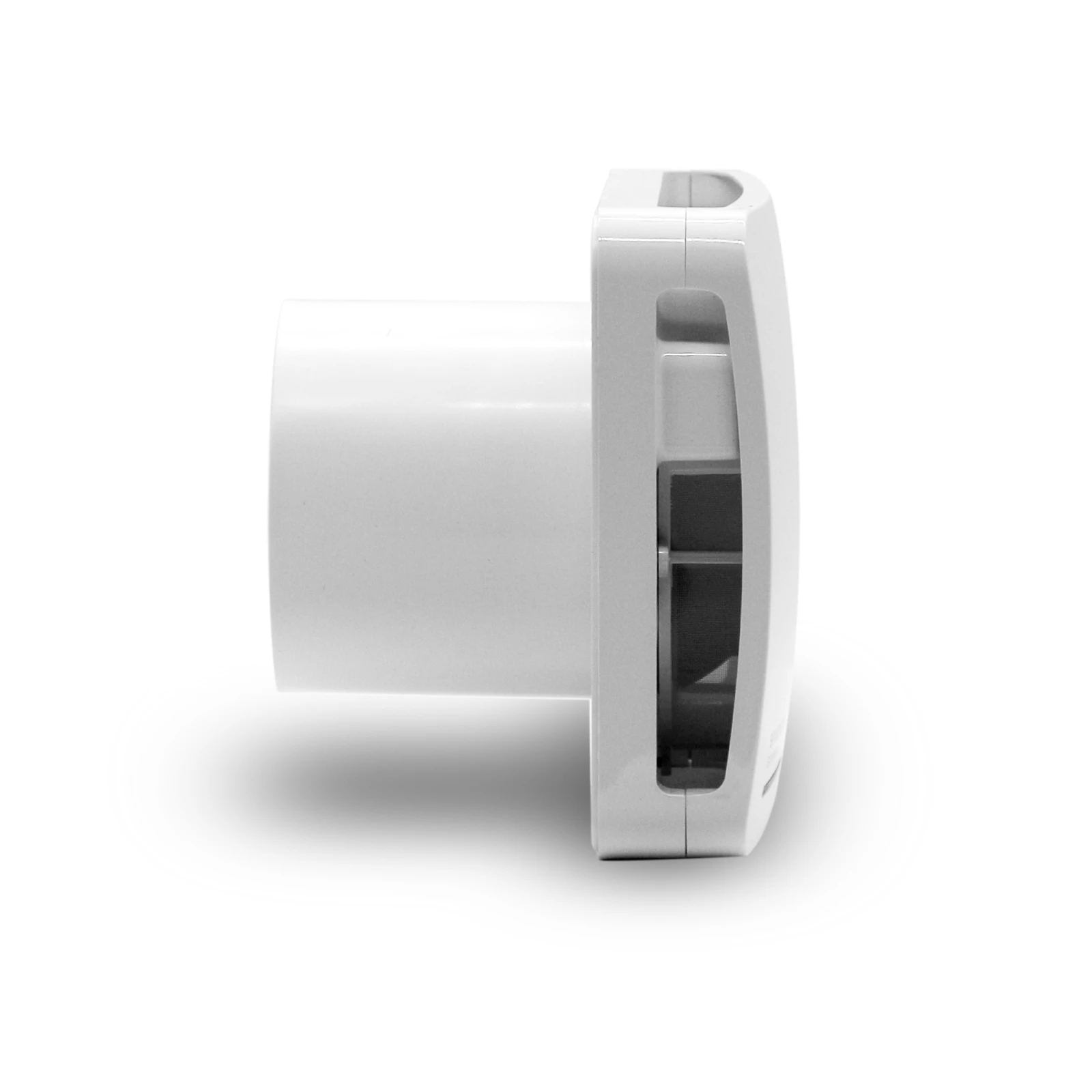

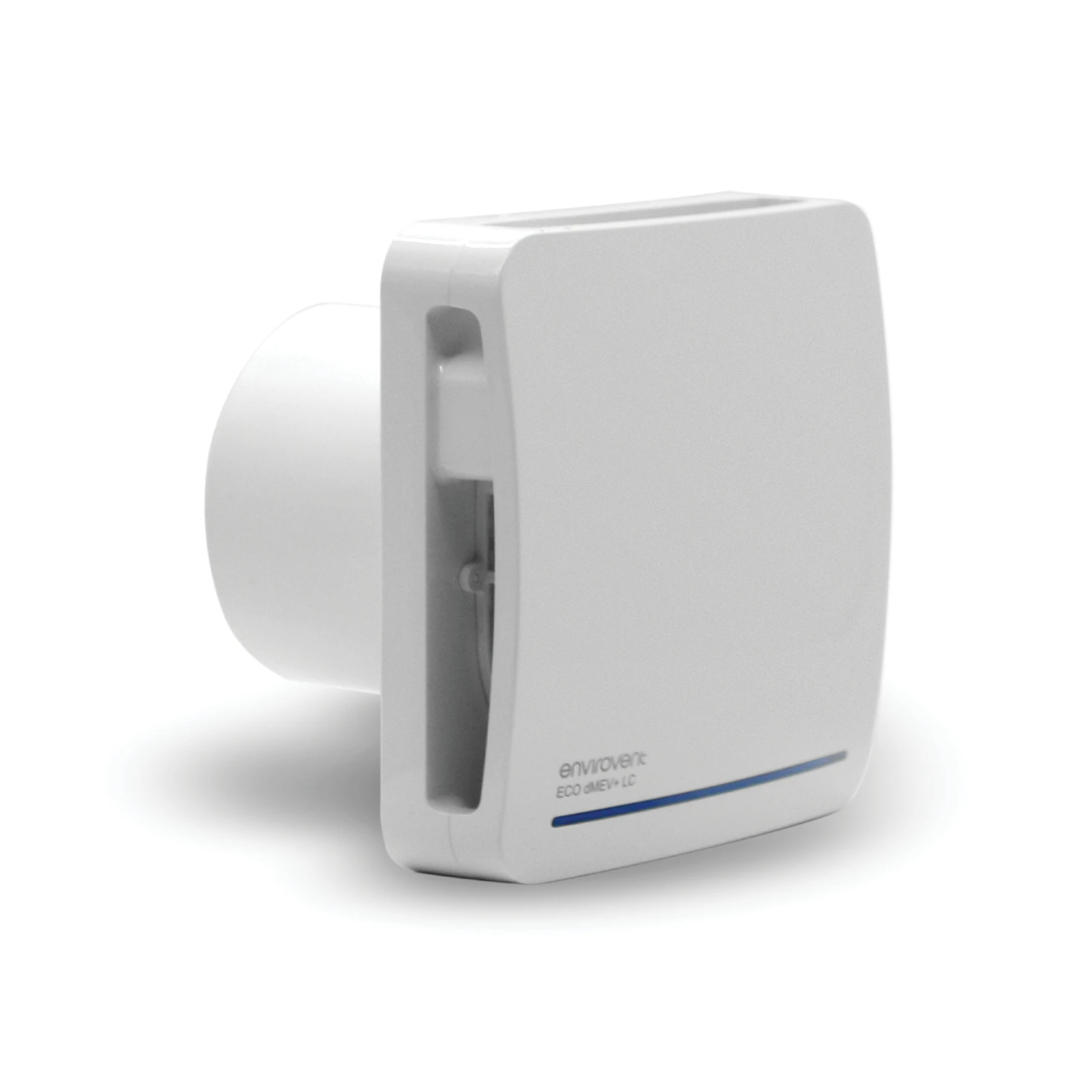

The ECO DMEV+LC is a decentralised extract fan that can run be ran either continuously or intermittently. It is suitable for wall and ceiling installations, designed to solve ventilation problems in all domestic wet rooms. The ECO DMEV+ has been designed and developed to offer the market a fan with constant volume, low power consumption, low noise levels and low life-cycle costs. The low energy fan is supplied in both 230V and SELV formats with 6 adjustable trickle speed settings from 4l/s to a maximum speed of 18/ls. The fan also comes supplied with four interchangeable front panel trims.

Key Features

Quiet Running

Less than 20 dB(A)

SAP PCDB Listed for Rigid Ducting

10 Models Available

Compact Footprint for Ease of Installation

158mm x 158mm

2 Control Options

Intermittent or Continuous Operation

Constant Volume Technology

Guaranteed Airflow Performance

Low Power Consumption

Down to 1W

Flexible Installation

Ceiling and Wall Mounting

Product Overview

Max Airflow (l/s)

18

Ducting / Connection Size (mm)

100, 90

Warranty

2

IP Rating

IPX4, IP57

SAP PCDB Listed

Yes

Passivhaus Certified

No

Request a Quote Find a Stockist
Request a Design Service

Key Features

  • Quiet Running

    Quiet running below 20 dB(A) with limited constant volume to prevent nuisance running.

  • SAP PCDB Listed for Rigid Ducting

    SAP PCDB Listed using rigid ducting down to 0.22W/l/s.

  • 10 Models Available

    10 models available depending upon property requirements including a standard unit, over-run adjustable timer, humidity, pullcord and PIR sensor for both 230V and SELV.

  • Compact Footprint for Ease of Installation

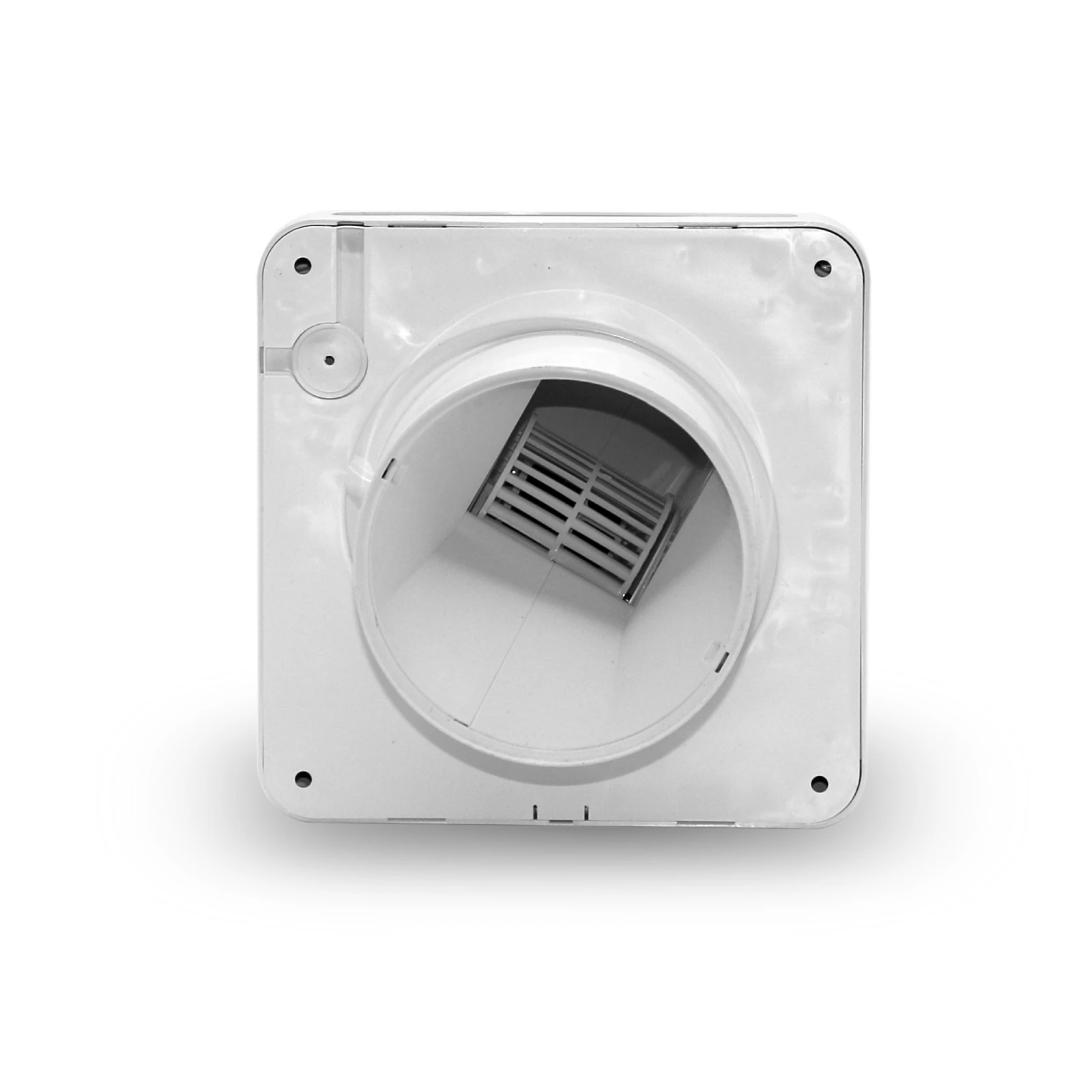

    Compact footprint for ease of installation, with coloured trims included. The size of the fan is 158x158mm and a 99mm spigot suitable for 100mm ducting.

  • 2 Control Options

    Intermittent or continuous control options for flexibility depending upon the usage of the fan.

  • Constant Volume Technology

    Constant volume technology provides guaranteed airflow performance despite changes in resistance. Also incorporates a limiter to ensure that noise levles are kept to a minimum.

  • Low Power Consumption

    Low power consumption down to 1 Watt, ensures that running costs are kept to a minimum.

  • Flexible Installation

    Flexible installation and mounting options including wall and ceiling.

Product Documents

Product Codes

Product CodeProduct Description
ECO-DMEV+S-LCStandard
ECO-DMEV+T-LCAdjustable Timer
ECO-DMEV+HT-LCAdjustable Humidity Sensor, Adjustable Timer
ECO-DMEV+HTP-LCAdjustable Timer, Humidity Sensor, Pullcord
ECO-DMEV+DT-LCAdjustable Timer, PIR Sensor
ECO-DMEV+S-LC17VSELV, Standard
ECO-DMEV+T-LC17VSELV, Adustable Timer
ECO-DMEV+HT-LC17VSELV, Adjustable Humidity Sensor, Adjustable Timer
ECO -DMEV+HTP-LC17VSELV, Adjustable Humidity Sensor, Adjustable Timer, Pullcord,
ECO-DMEV+DT-LC17VSELV, Adjustable Timer, PIR Sensor

ECO DMEV+LC
