energiSava® 260
The energiSava® 260 is a mechanical ventilation with heat recovery unit, incorporating an EC motor, providing optimum ventilation for a property with a minimum loss of energy. Suitable for Kitchen + 5 additional wet rooms and achieving a maximum airflow of 310 m3/h (86 l/s), the energiSava® 260 delivers not only the utmost practicality in installation flexibility, it also performs with exceptional efficiency, achieving a low Specific Fan Power of 0.57 W/l/s.
Key Features
Low Specific Fan Power (SFP)
Down to 0.57 W/l/s
High Airflow Performance
Max Airflow 86 l/s
High Thermal Efficiency
Up to 88%
Easy Installation
Compact and Lightweight Unit - Only 14kg
Wireless Three Speed Controller
Intellitrac Relative Humidity Control
No User Interaction Required
Manufactured in the UK
Easy Commissioning
Product Overview
Max Airflow (l/s)
86
Ducting / Connection Size (mm)
125
Warranty
2
IP Rating
IPX2
SAP PCDB Listed
Yes
Passivhaus Certified
No
Key Features
Low Specific Fan Power (SFP)
Low Specific Fan Power (SFP) down to 0.57W/l/s showing high levels of efficiency with less energy being consumed during use.
High Airflow Performance
86l/s maximum airflow, ideal for a variety of different sized properties.
High Thermal Efficiency
High efficiency counter flow heat cell capable of achieving up to 88%, helping ensure heating costs are kept to a minimum.
Easy Installation
Compact and lightweight unit weighing only 14kg, designed for single person installation and protruding from a wall no more than 360mm.

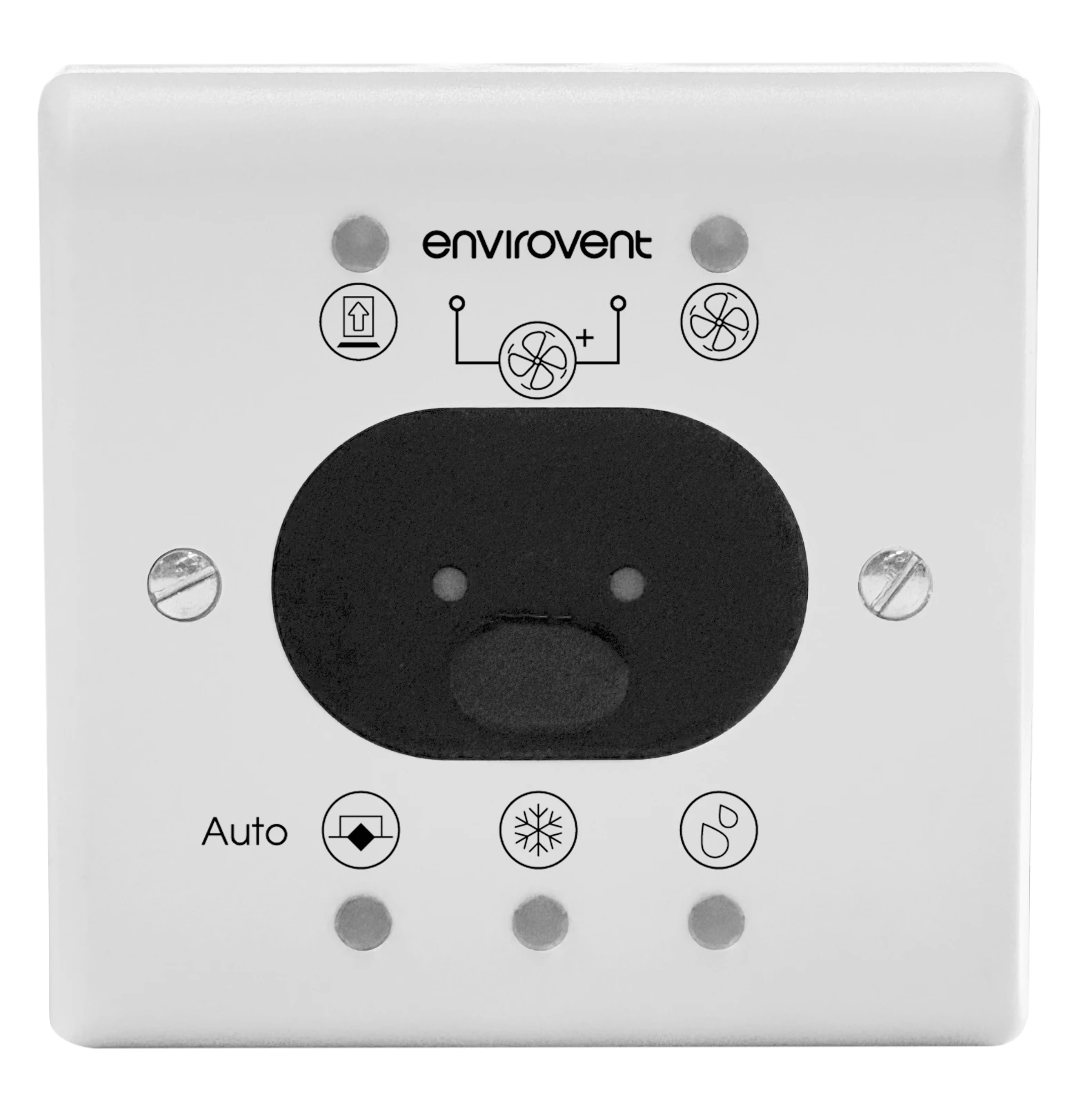

Wireless Three Speed Controller
Wireless three speed controller as standard to adjust airflow speeds, display the mode of operation and filter change/fault indicator.
Intellitrac Relative Humidity Control
Intellitrac is a unique intelligent vapour tracking control that constantly monitors the humidity levels within the wet room. As humidity rises and falls, the motor speed rises and falls in direct correlation, this ensures humidity levels do not increase. This feature runs constantly in the background meaning the end user does not need to interact with the unit.
Manufactured in the UK
Manufactured in envirovent's® on-site factory in Harrogate, North Yorkshire
Easy Commissioning
Easy commissioning via push button control pad or via the Myenvirovent app (model depending).
Product Documents
Product Codes
| Product Code | Product Description |
|---|---|

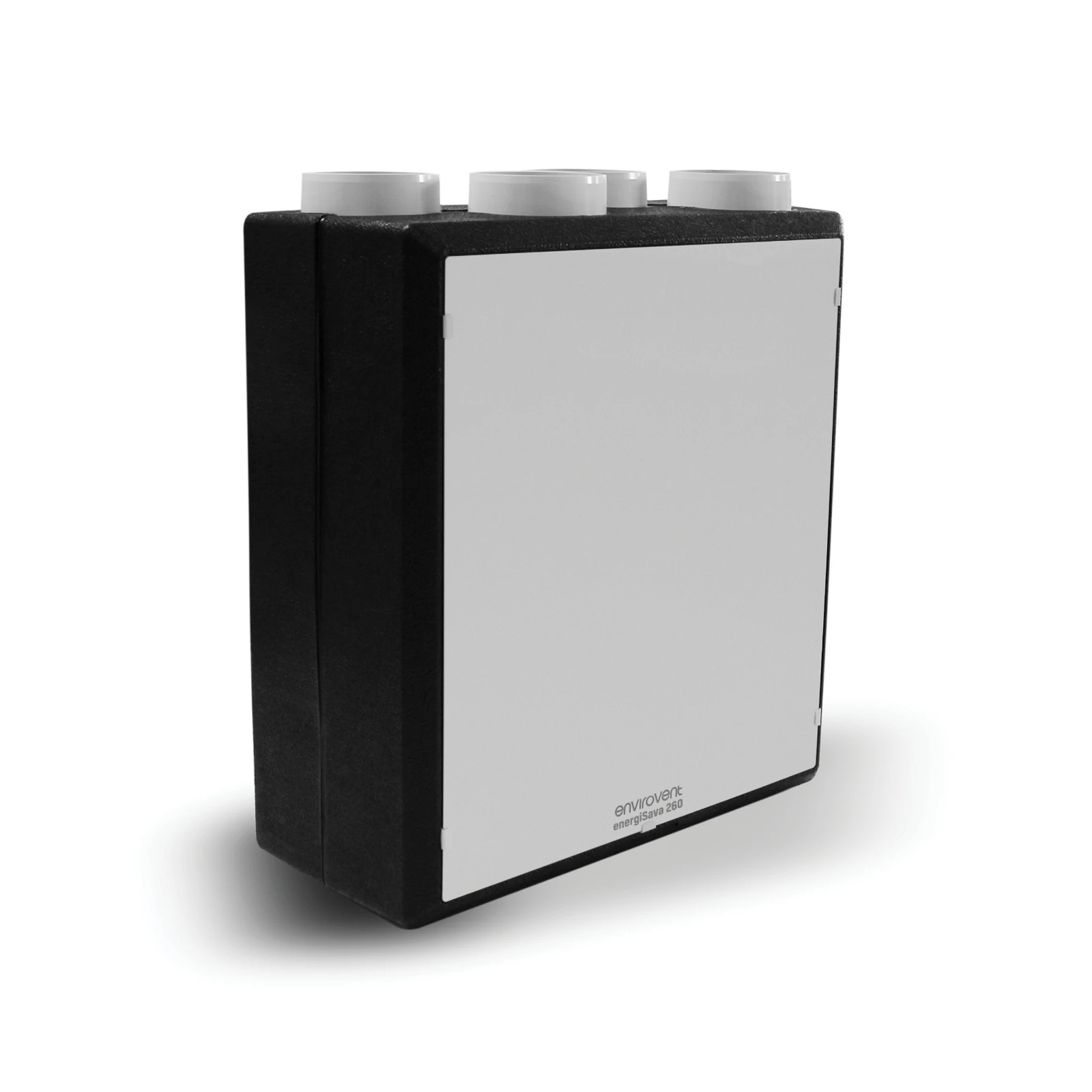

| ESAVA260 | Wall Mounted, Right-hand Configuration |

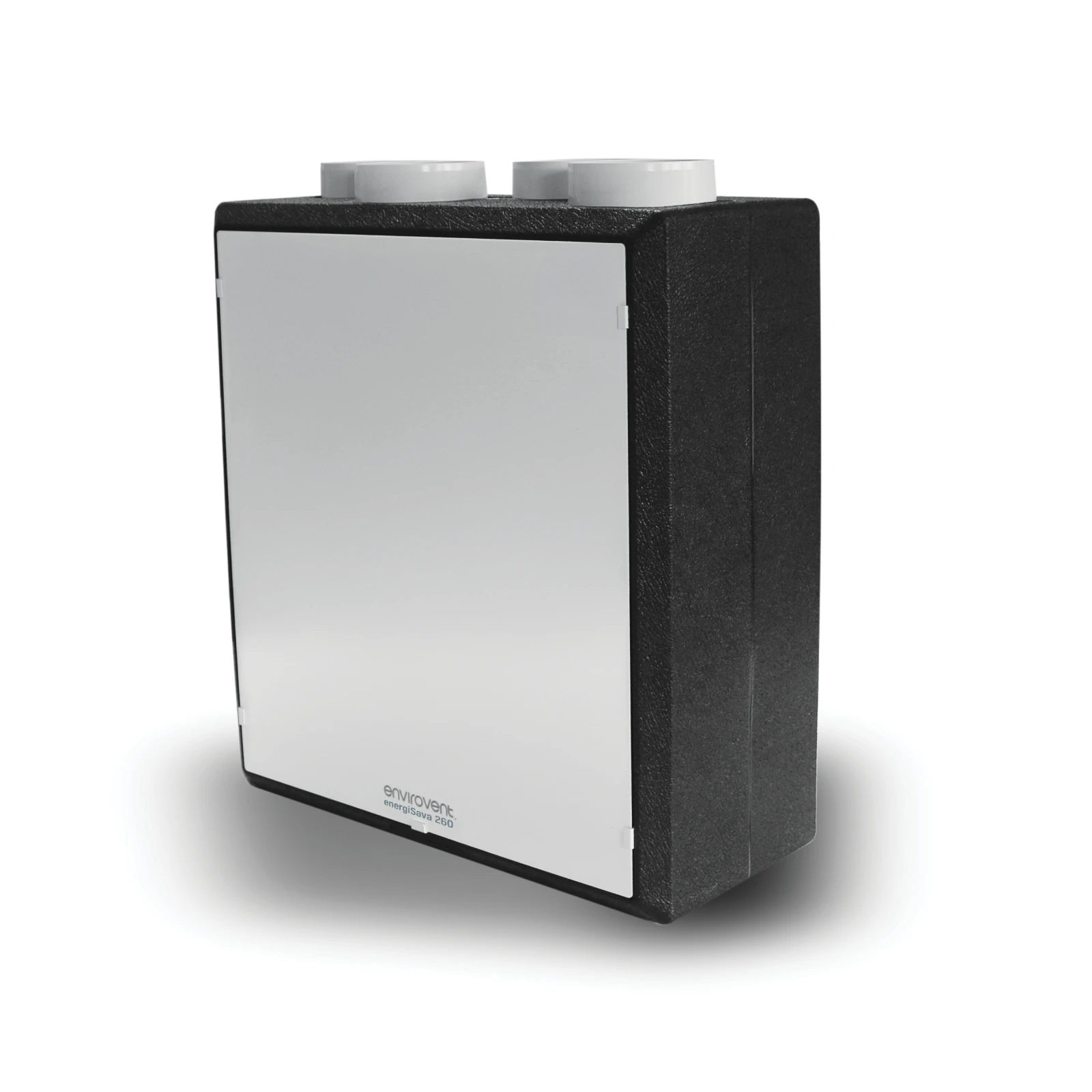

| ESAVA260-L | Wall Mounted, Left-hand Configuration |
| ESAVA260C | Ceiling Mounted, Right-hand Configuration |
| ESAVA260C-L | Ceiling Mounted, Left-hand Configuration |
| ESAVA260A | Wall Mounted, App Enabled, Right-hand Configuration |
| ESAVA260A-L | Wall Mounted, App Enabled, Left-hand Configuration |
| ESAVA260CA | Ceiling Mounted, App Enabled, Right-hand Configuration |
| ESAVA260CA-L | Ceiling Mounted, App Enabled, Left-hand Configuration |
energiSava® 260
Frequently Asked Questions
The energiSava® 260 can either be controlled via a wireless three-speed controller or via the app version of the unit, which can work with the myenviroventapp.
The order codes show the different control options available.
The energiSava® 260 can be wall or ceiling-mounted, depending upon the requirements of the installation.
The energiSava® 260 is available as both right and left-handed, giving ultimate flexibility for unit placement, drainage and airflow direction.
Diagrams and further information can be found within the installation guide.
The energiSava® 260 has a summer bypass as standard, ensuring that during periods of warm weather that the airflow is able to bypass the heat cell keeping the property comfortable.
The energiSava® 260 comes as standard with Intellitrac humidity tracking, a unique feature that continuously monitors the humidity levels in the property and automatically adjusts the extract airflow to suit.
The energiSava® 260 comes as standard with frost protection via airflow imbalance.
In periods of extremely cold weather, the supply airflow will switch off to both protect the internal workings of the unit and provide a comfortable environment before switching back on when temperatures increase.
The energiSava® 260 comes with a 2-year warranty as standard for peace of mind, saving time, money and hassle
The energiSava® 260 comes with two ISO Coarse 45% filters as standard.
The energiSava® 260 is up to 88% energy efficient and is suitable for kitchen plus five additional wet rooms.
