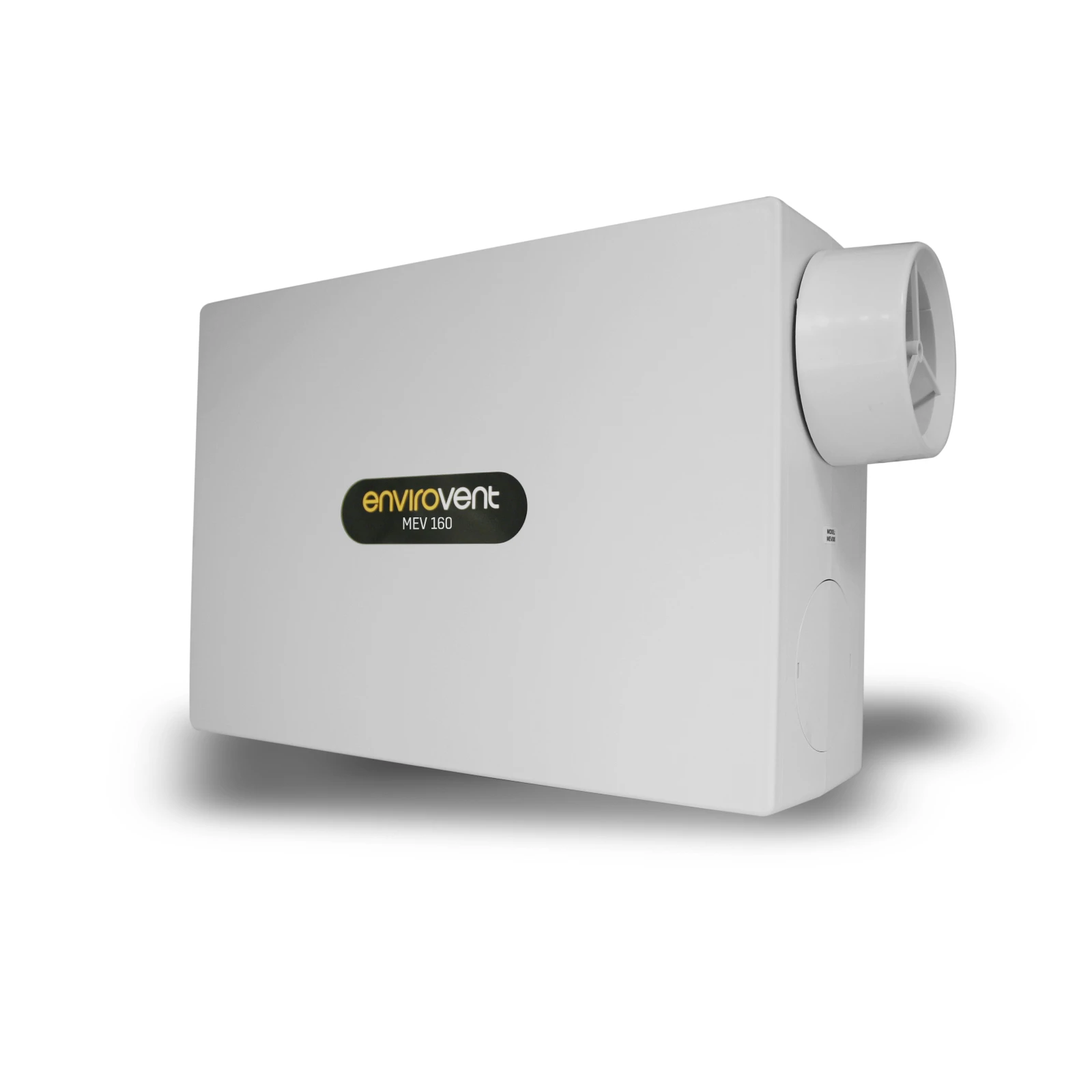

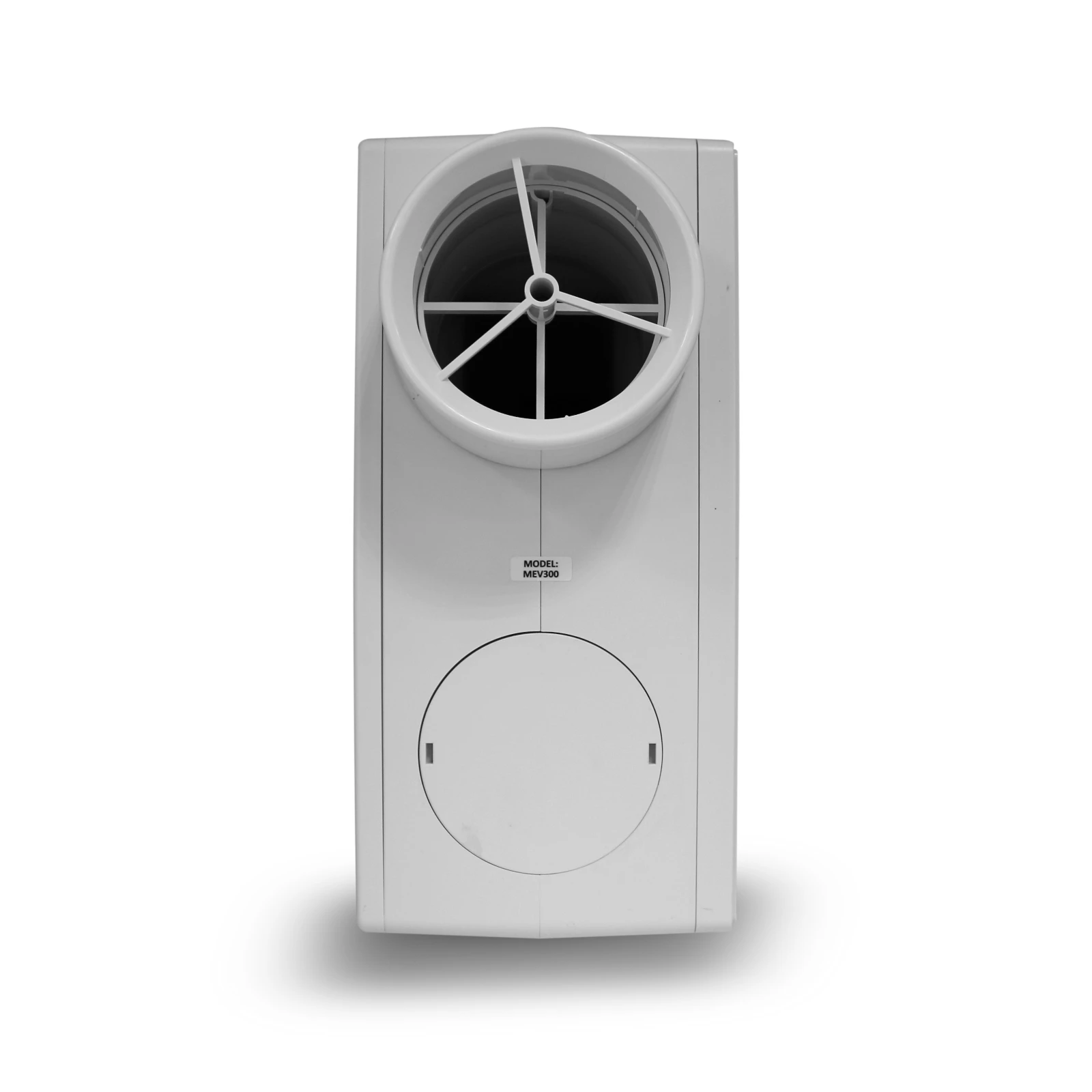

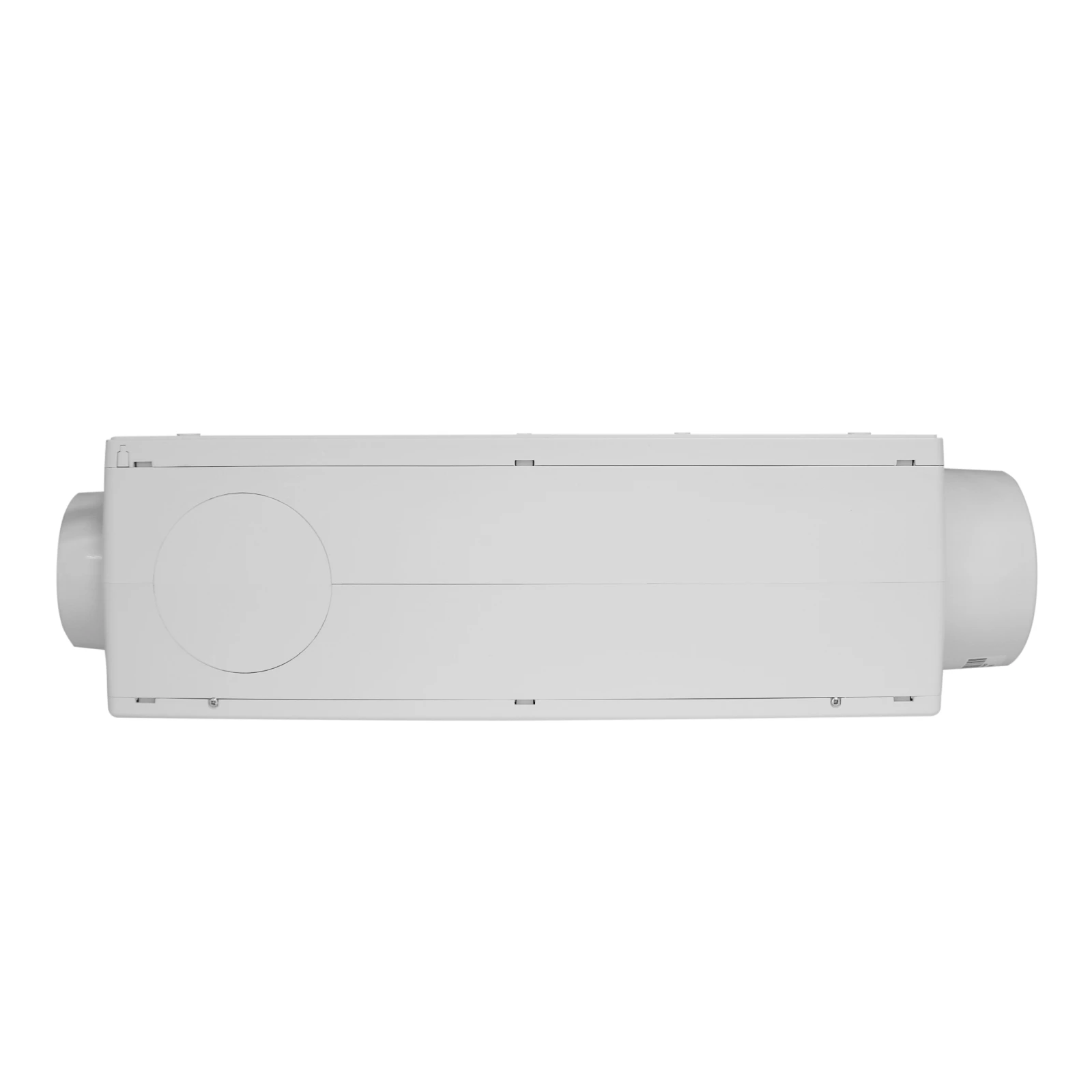

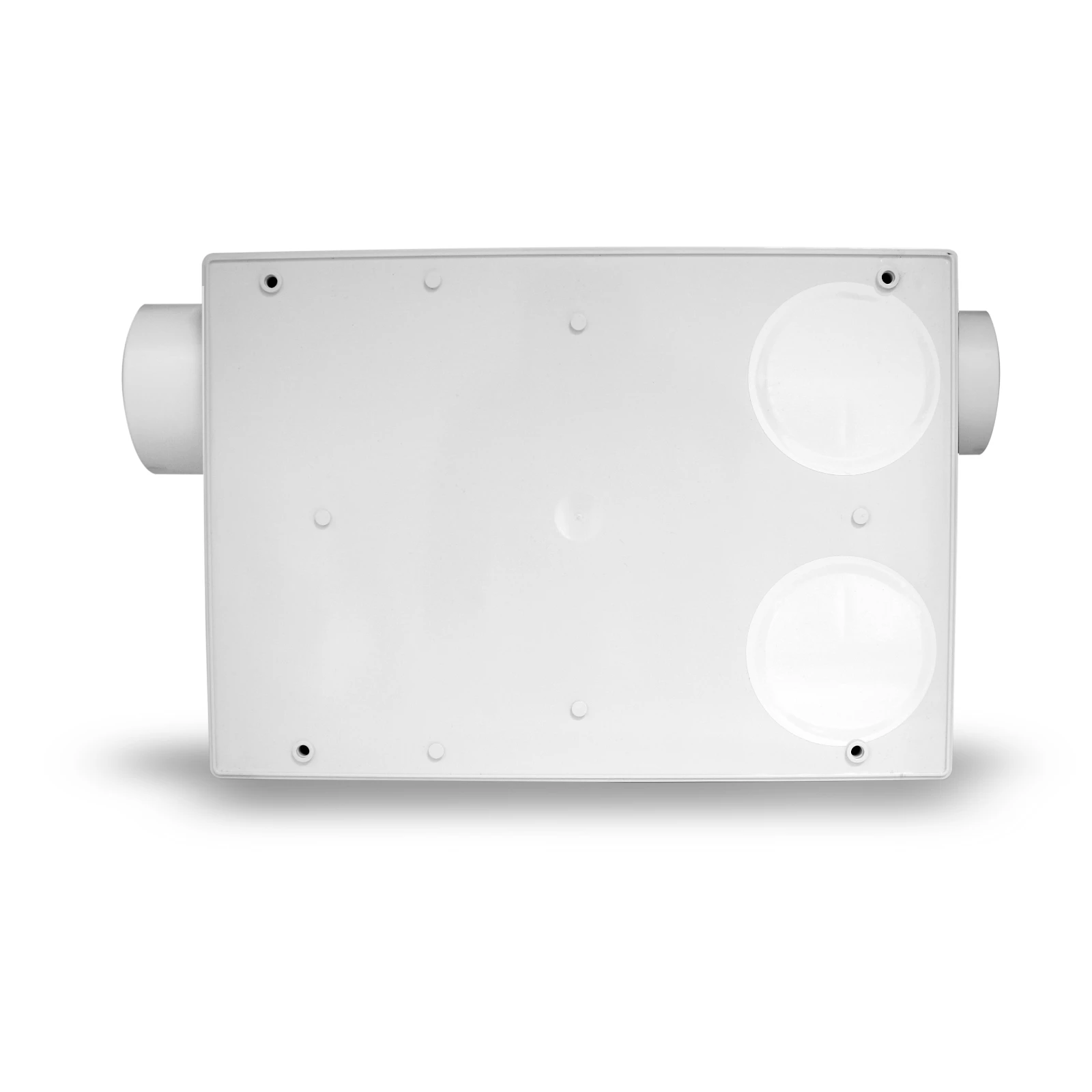

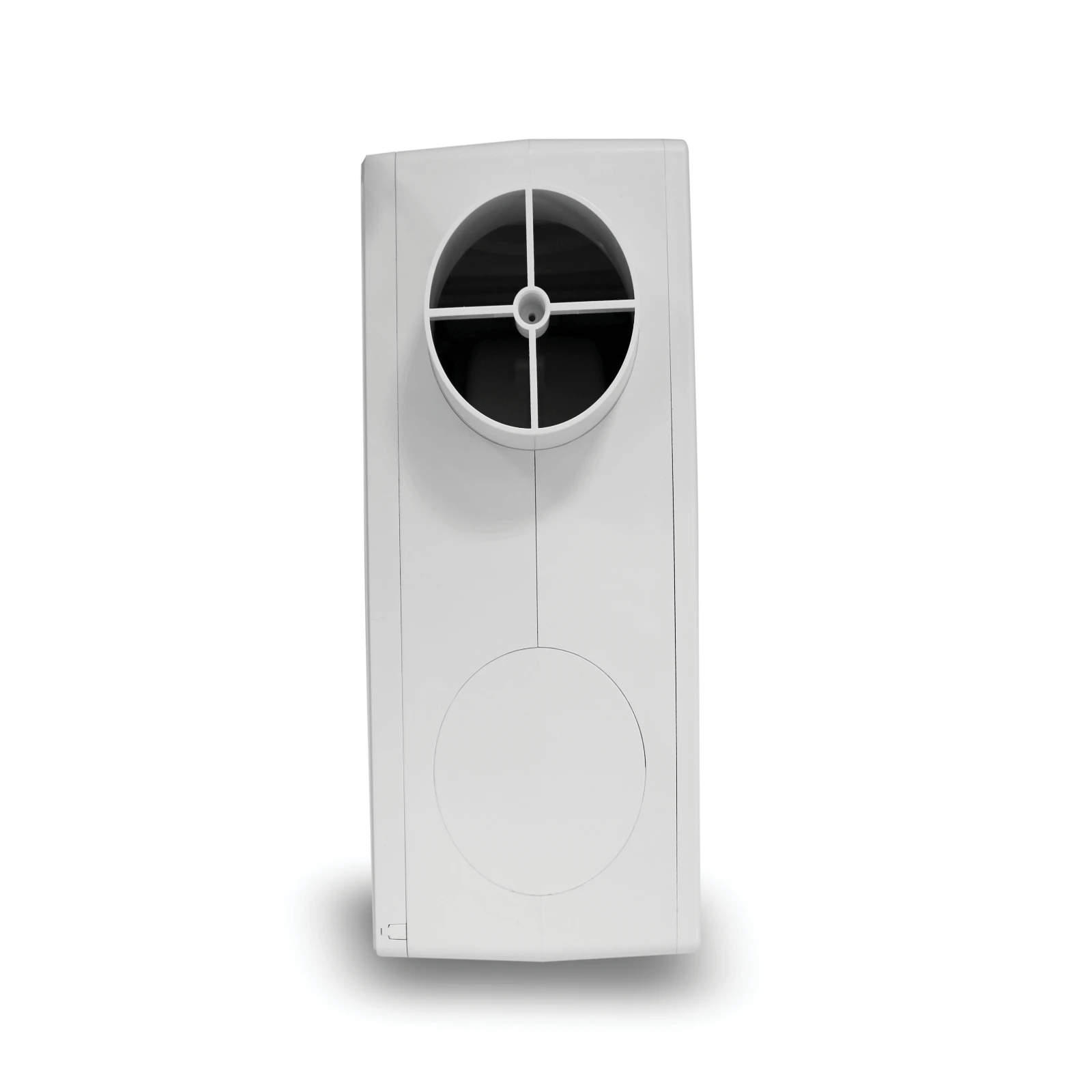

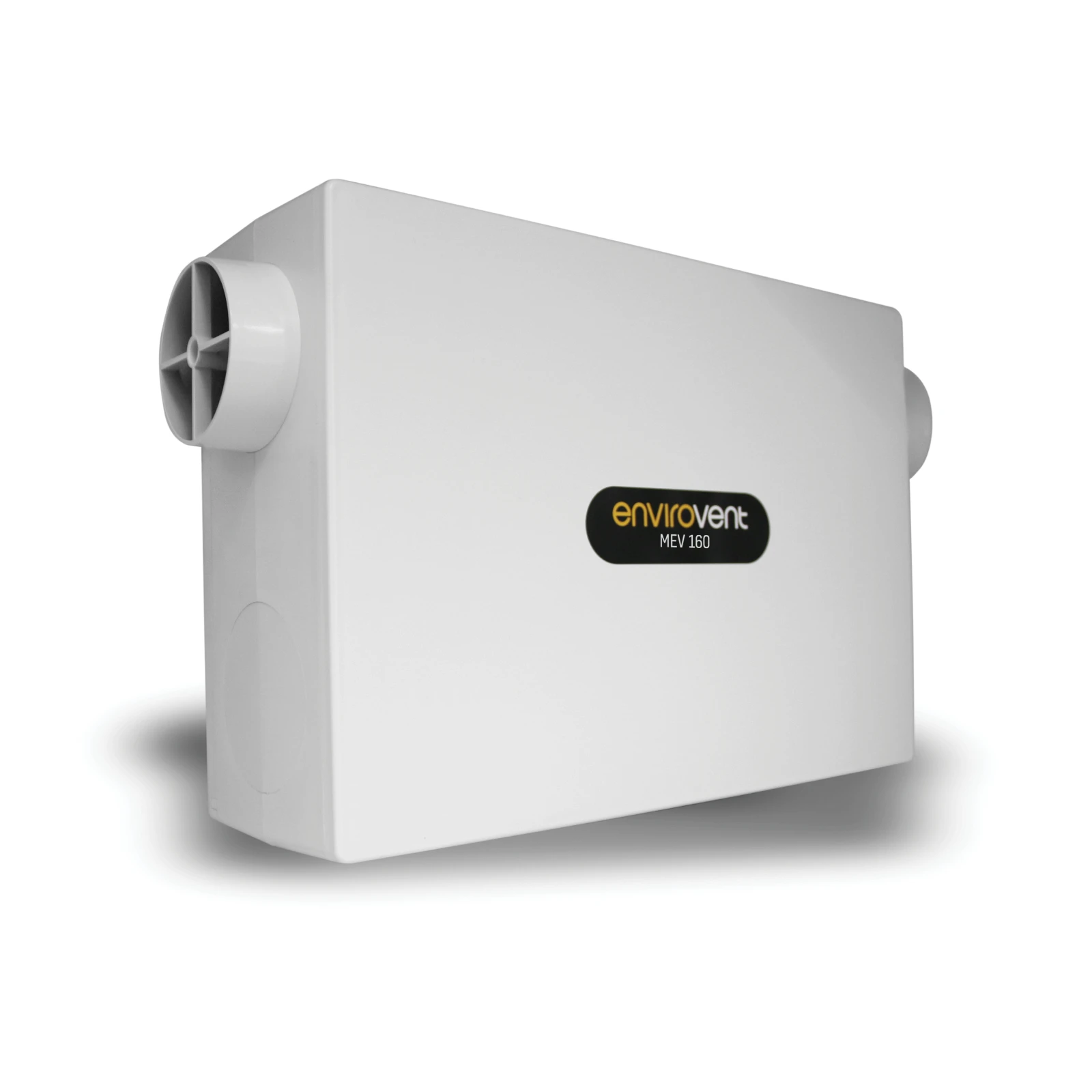

MEV160
The MEV160 is a continuous running, centralised whole dwelling mechanical extract ventilation system. It is versatile, compact and delivers high airflow performance. Ideal for houses, apartments and other communal residences, such as care homes and student accommodation. It is designed with multiple extract points to simultaneously draw moisture-laden air from wet rooms. It incorporates our Intellitrac technology which ensures airflow performance and humidity levels are controlled all year round. Intellitrac is a unique intelligent vapour tracking control that constantly monitors the humidity levels within the wet room. As humidity rises and falls, the motor speed rises and falls in direct correlation to ensure humidity levels do not increase. The MEV160 range achieves extremely low Specific Fan Powers down to 0.19 W/l/s and are ideal for applications up to Kitchen plus 6 additional wet rooms.
Key Features
Low Specific Fan Power (SFP)
Down to 0.19W/l/s
High Airflow Performance
Max Airflow 75 l/s
Intellitrac Relative Humidity Control
No User Interaction Required
Different Control Options Available
Hard-wired or Wireless
0-10V Input on Wireless Units
Compatible with AirSens®
Quiet Running
Max Level 22 dB(A) @ 3m
Fast Track® Model (FT)
Suitable with Semi-rigid Ducting
Flexible Installation
Ceiling, Wall and Floor Mounting Options
Product Overview
Max Airflow (l/s)
75
Ducting / Connection Size (mm)
100, 90
Warranty
2
IP Rating
IPX2
SAP PCDB Listed
Yes
Passivhaus Certified
No
Key Features
Low Specific Fan Power (SFP)
Low Specific Fan Power (SFP) down to 0.19W/l/s showing high levels of efficiency with less energy being consumed during use.
High Airflow Performance
Max airflow of up to 75l/s with up to 6 spigot connections on the unit make it a great solutions for a variety of different sized properties.
Intellitrac Relative Humidity Control
Intellitrac is a unique intelligent vapour tracking control that constantly monitors the humidity levels within the wet room. As humidity rises and falls, the motor speed rises and falls in direct correlation, this ensures humidity levels do not increase. This feature runs constantly in the background meaning the end user does not need to interact with the fan.
Different Control Options Available

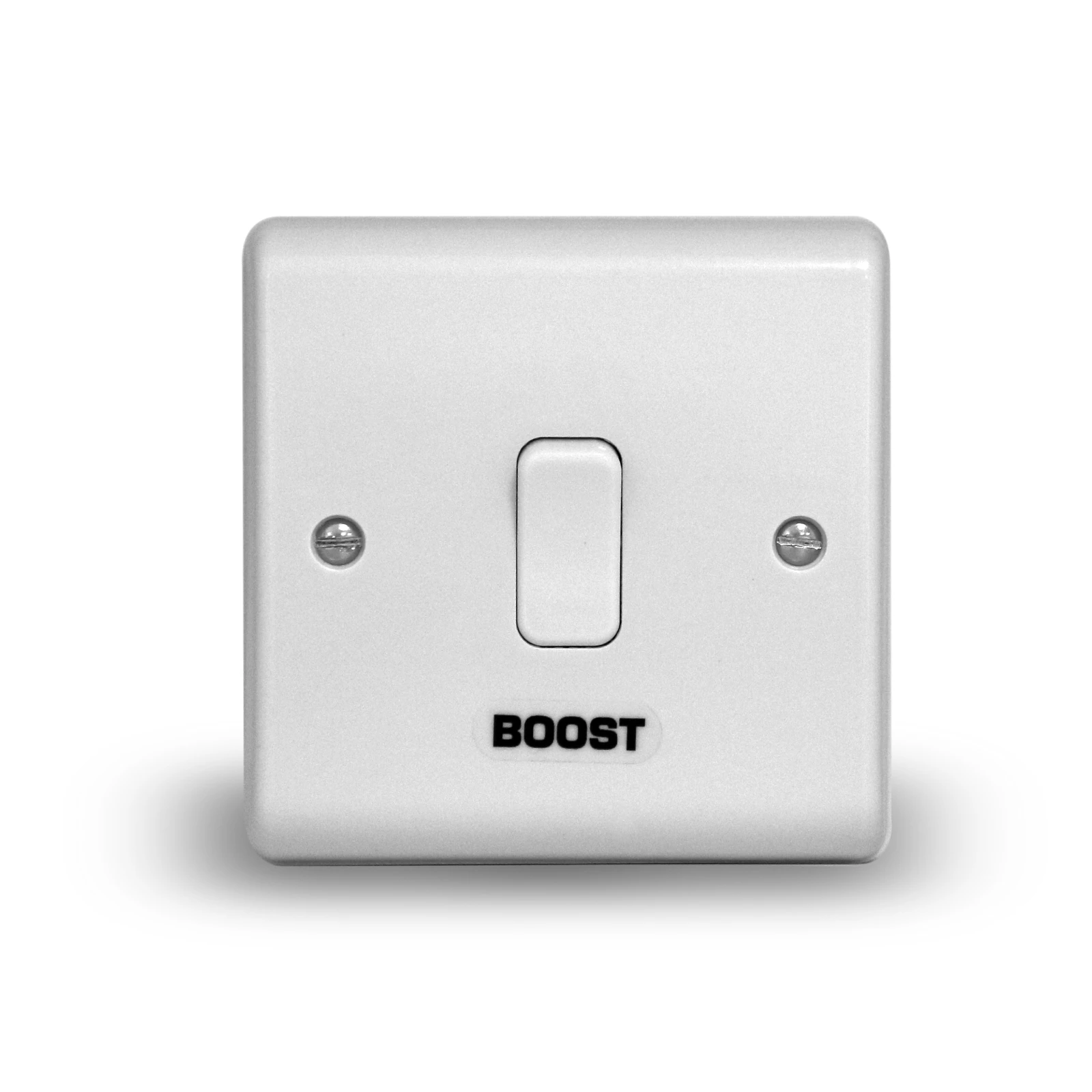

MEV units can be supplied with either a hardwired control or wireless control depending on your preference.
0-10V Input on Wireless Units
0-10V variable control input on wireless units for use with external sensors such as the AirSens® range of products.
Quiet Running
Exceptionally quiet running units with breakout sound levels below 22 dB(A) at 3m under free field condition.
Fast Track® Model (FT)
MEV has been designed with semi-rigid ducting in mind, with a specific model making compatibility with semi-rigid ducting as simple as possible. This will save you both time and money when it comes to installation.
Flexible Installation
Flexible installation and mounting options including wall, floor and ceiling.

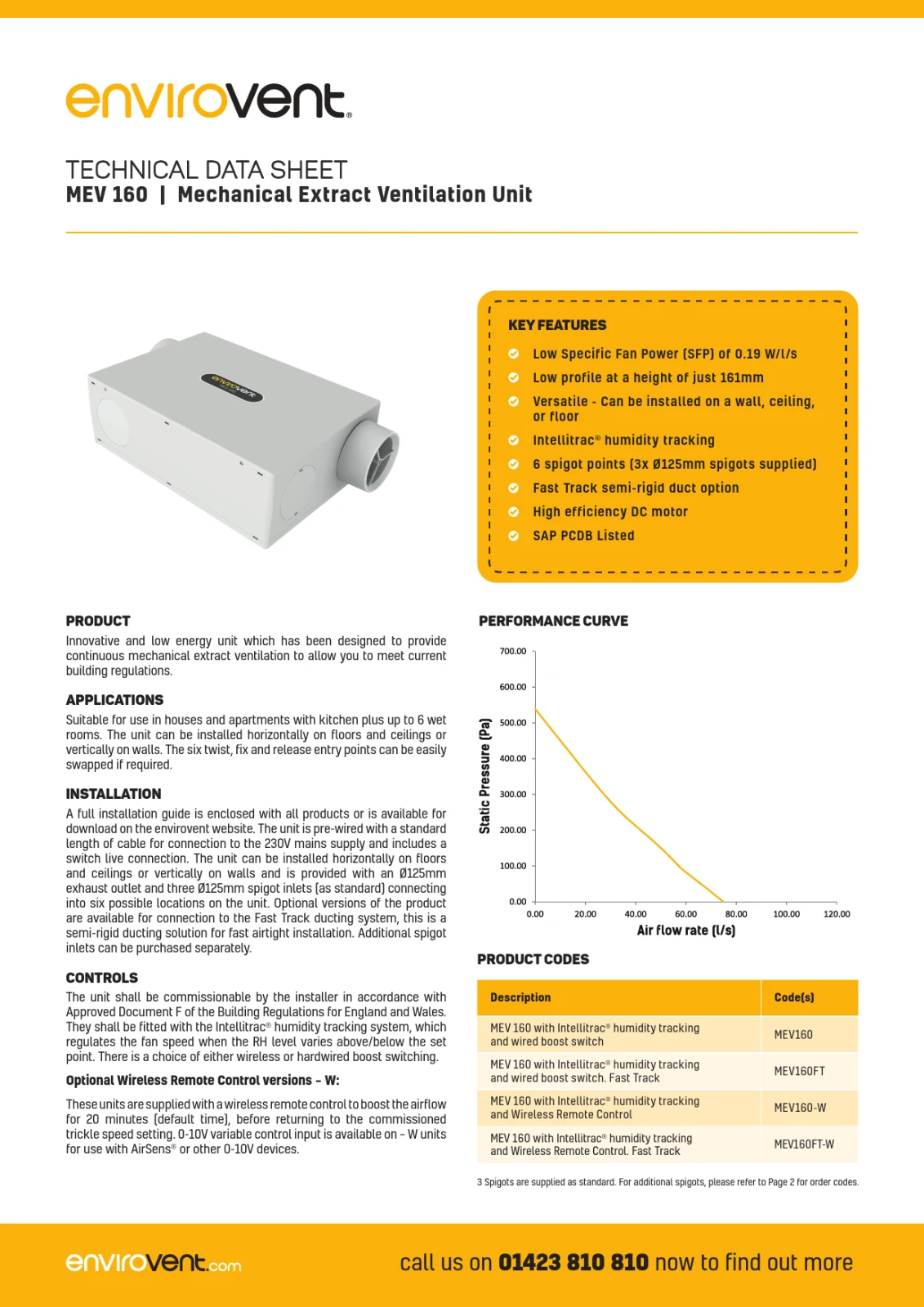

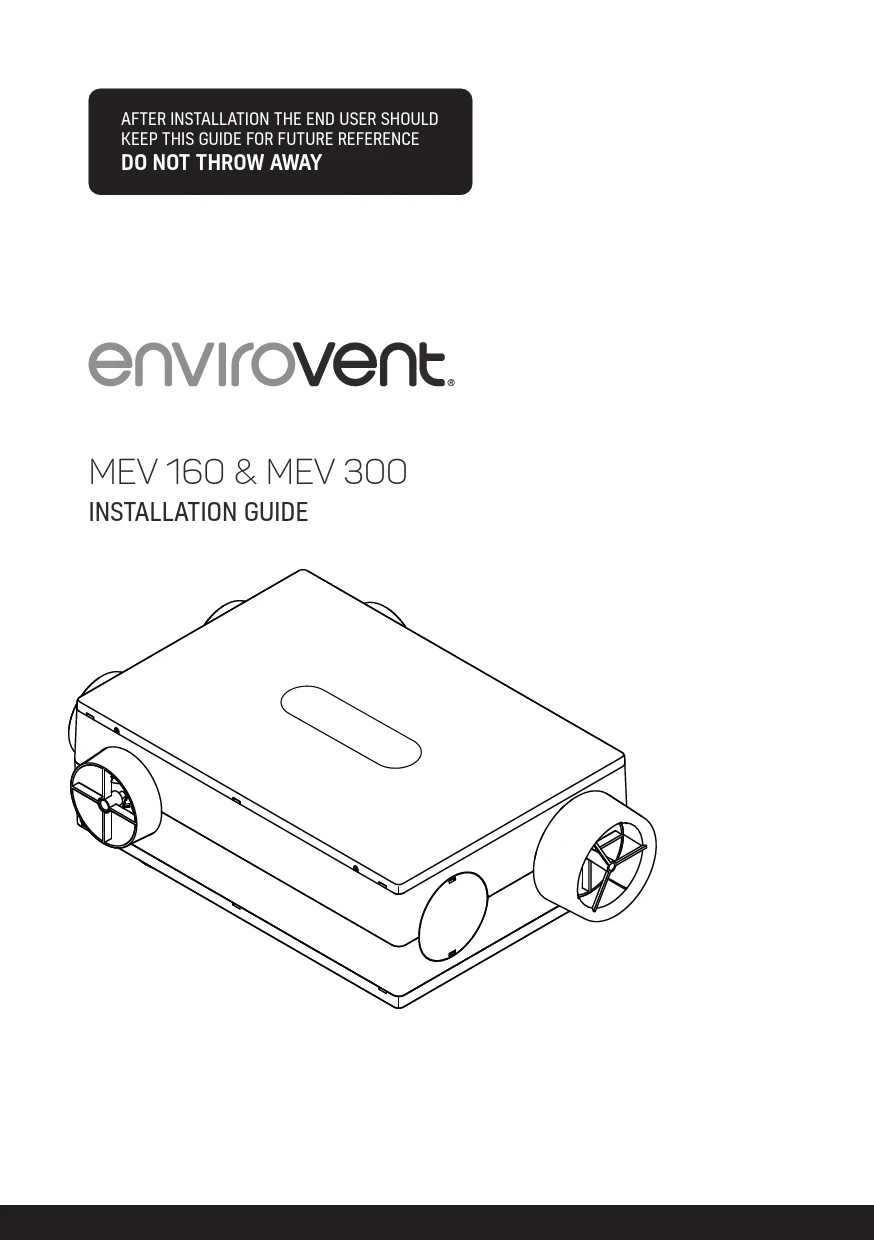

Product Documents
Product Codes
| Product Code | Product Description |
|---|---|
| MEV160 | Standard |
| MEV160FT | Standard, Suitable for Fast Track Ducting (Comes with 3 x 100mm-90mm Connectors) |
| MEV160-W | Wireless Control |
| MEV160FT-W | Wireless, Suitable for Fast Track Ducting (Comes with 3 x 100mm-90mm Connectors) |
MEV160
Frequently Asked Questions
The MEV160 is suitable for use with rigid circular ducting or Fast Track semi-rigid ducting, depending upon the model of the unit that's selected.
The MEV160 comes with Intellitrac humidity tracking as standard. This allows the unit to increase or decrease in speed based upon the humidity level in the air.
The MEV160 comes with a 0-10V sensor port as standard. This can provide a connection to the AirSens range of sensors, including CO₂ or VOC.
The MEV300 is suitable for use with rigid circular ducting or Fast Track semi-rigid ducting depending upon the model of the unit that's selected.
The MEV300 comes with Intellitrac humidity tracking as standard. This allows the unit to increase or decrease in speed based upon the humidity level in the air.
The MEV300 comes with a 0-10V sensor port as standard. This can provide a connection to the AirSens range of sensors including CO₂ or VOC.
