SILENT DESIGN 125

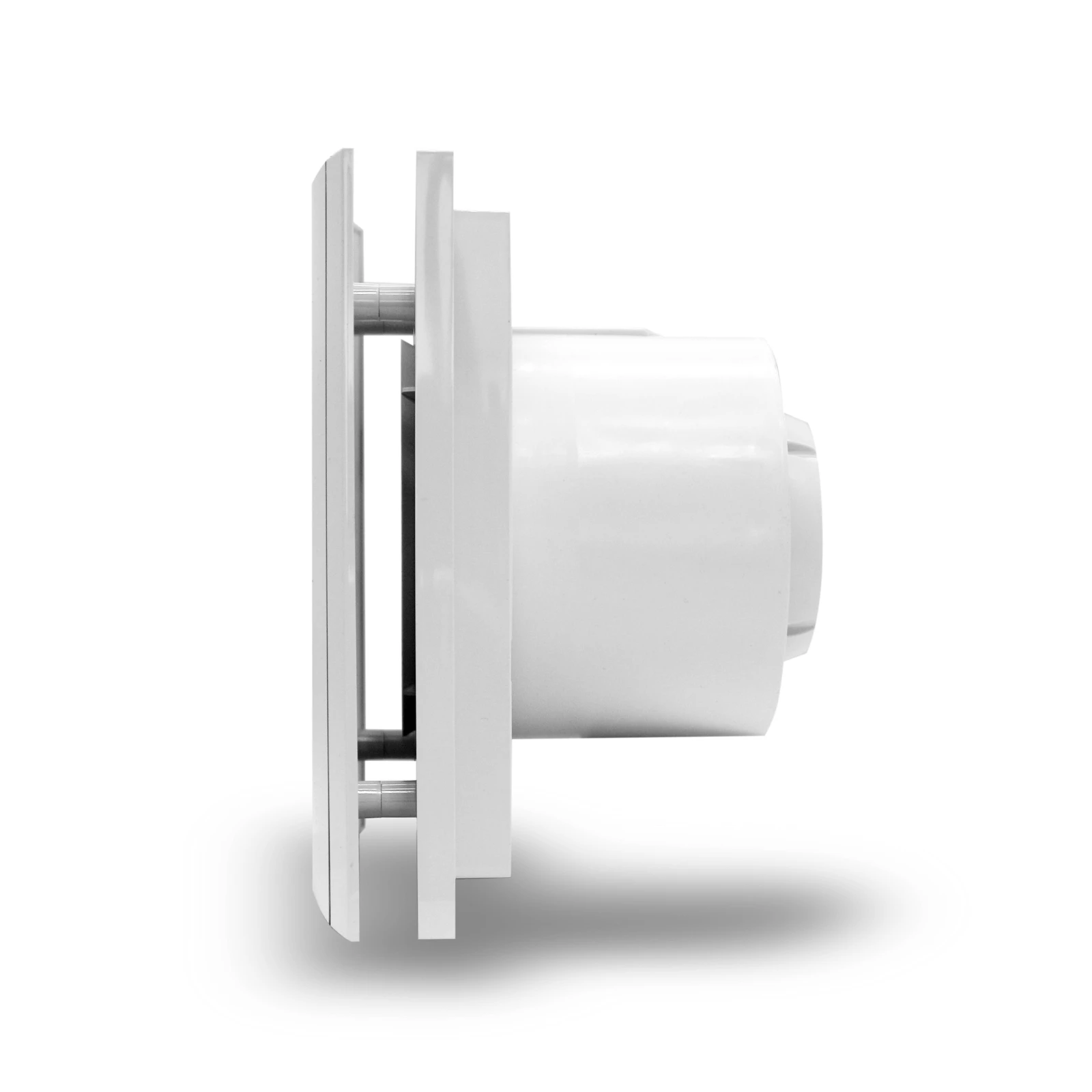

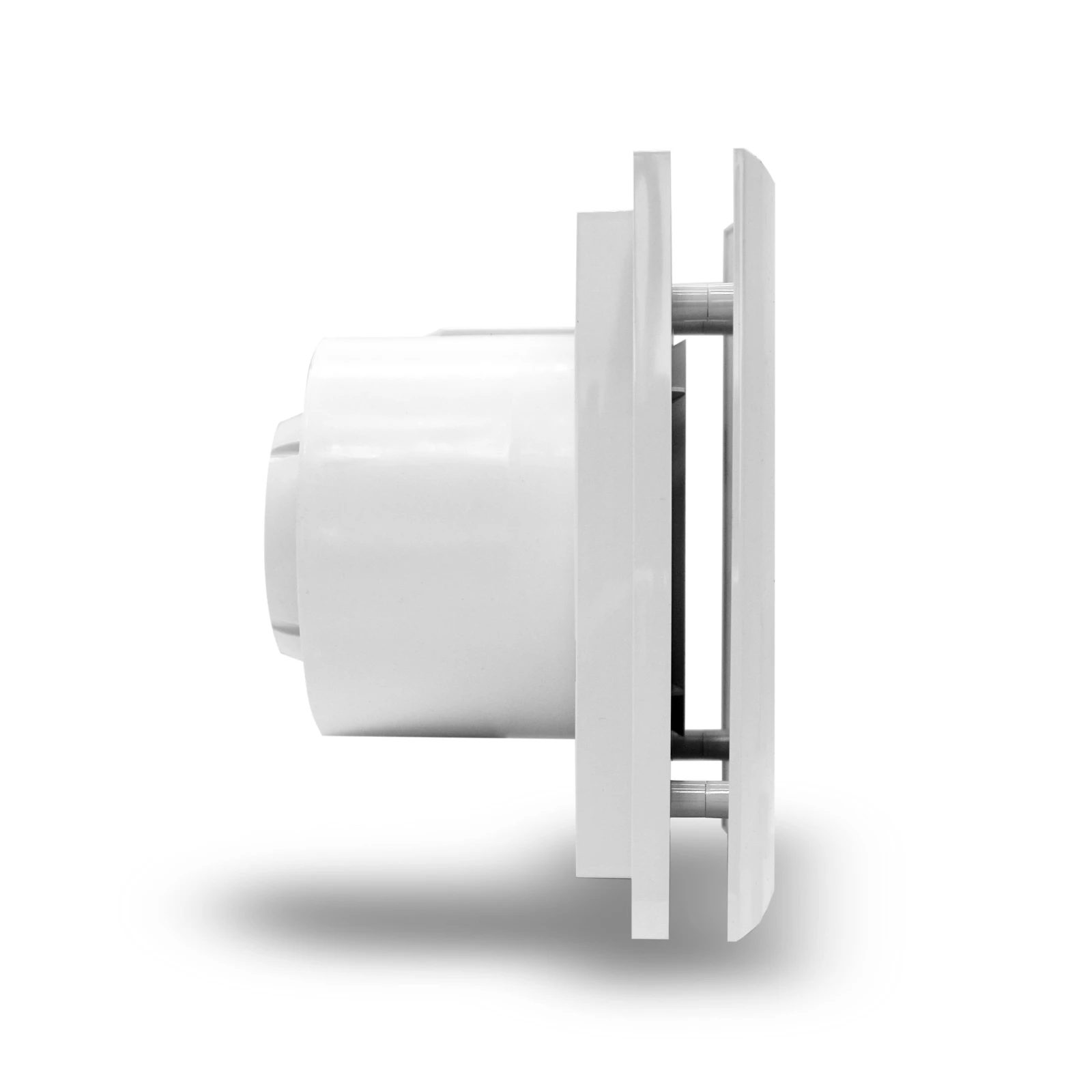

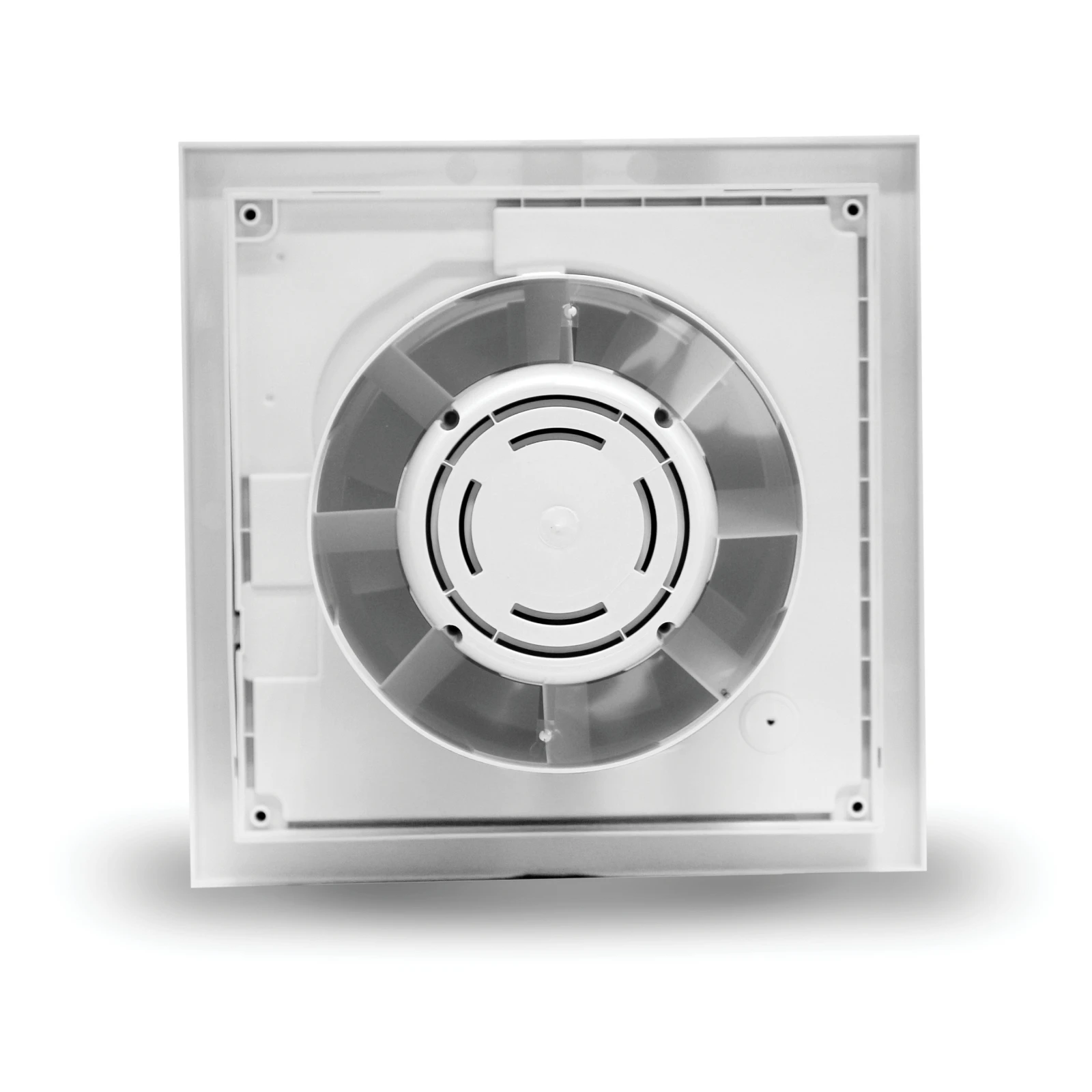

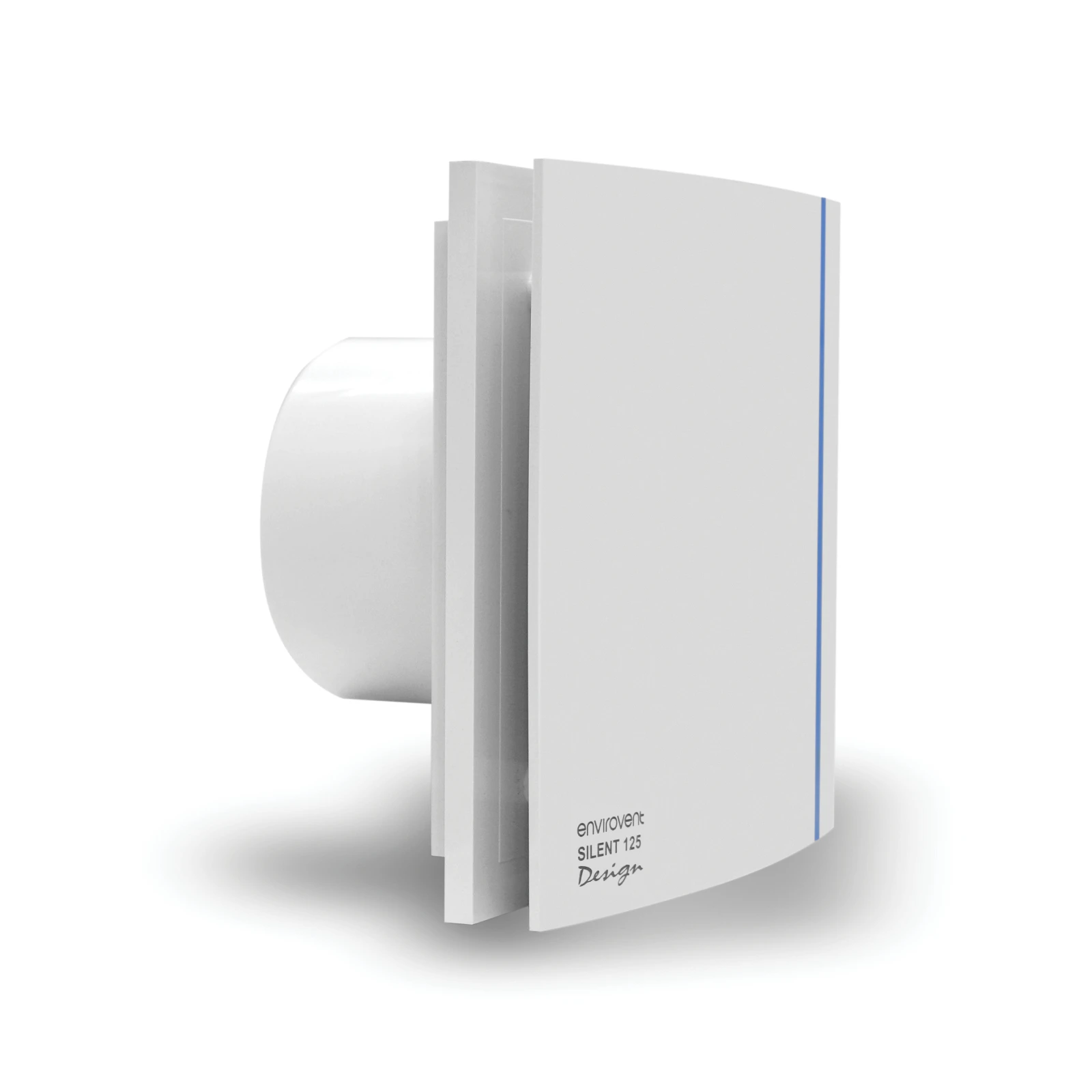

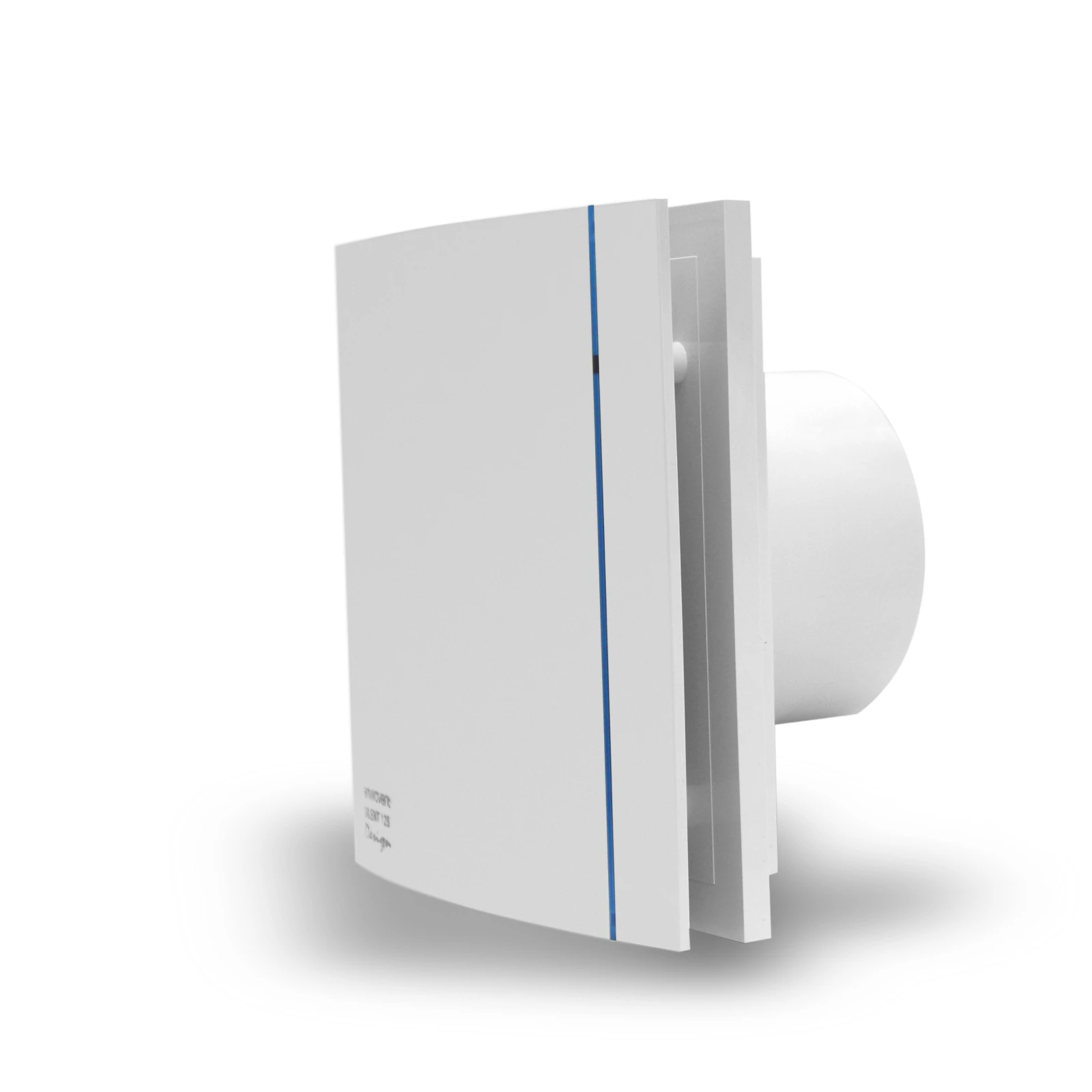

The SILENT DESIGN 125 is a 125mm domestic axial extractor fan that comes with a stylish solid facia that is suitable for wall or ceiling installations, designed to solve ventilation problems in small rooms such as a utility room. The extractor fans are fitted with motors mounted on silent elastic blocks; the range is incredibly quiet running and delivers exceptional airflow performance. Fitted with a pilot light, backdraught shutter and airflow guide vanes as standard to improve pressure development and performance. The SILENT DESIGN 125 extractor fan is available with optional features including an adjustable over-run timer and adjustable humidity sensor.

Key Features

High Airflow Performance

Max Airflow 49 l/s

Quiet Running

Only 35 dB(A) @ 3m

Adjustable Humidity Sensor

Adjustable Between 60% - 90%

Adjustable Over-run Timer

Adjustable Between 1 - 30 Minutes

Backdraught Shutter

Prevents Air Entry and Reduces Heat Leakage

Interchangeable Colour Bars

Blue, Red, Green and Yellow

Product Overview

Max Airflow (l/s)

49

Ducting / Connection Size (mm)

125

Warranty

5

IP Rating

IP45

Request a Quote Find a Stockist
Request a Design Service
CONFIG ON EasyVent

Key Features

  • High Airflow Performance

    This range of fans delivers higher airflow performance making it suitable for more applications such as utility rooms.

  • Quiet Running

    This range of fans delivers exceptionally low noise levels with only 35 dB(A) @ 3m.

  • Adjustable Humidity Sensor

    Adjustable humidity sensor that can be adjusted between 60 - 90% relative humidity. The extract fan will continue to run until the selected level of relative humidity has been reached.

  • Adjustable Over-run Timer

    Over-run timer that can be adjusted between 1 - 30 minutes. This means the fan will continue to run after being switched off to ensure humidity is reduced.

  • Backdraught Shutter

    Backdraught shutter comes as standard, this prevents air entry and limits heat leakage when the fan is not operating.

  • Interchangeable Colour Bars

    Each fan comes with 4 interchangeable colour bars, so it can be modified to to suit your preference.

Product Documents

Product Codes

Product CodeProduct Description
SILDES125SStandard
SILDES125TAdjustable Over-run Timer
SILDES125HTAdjustable Humidity Sensor, Adjustable Over-run Timer
