SILENT DESIGN 150

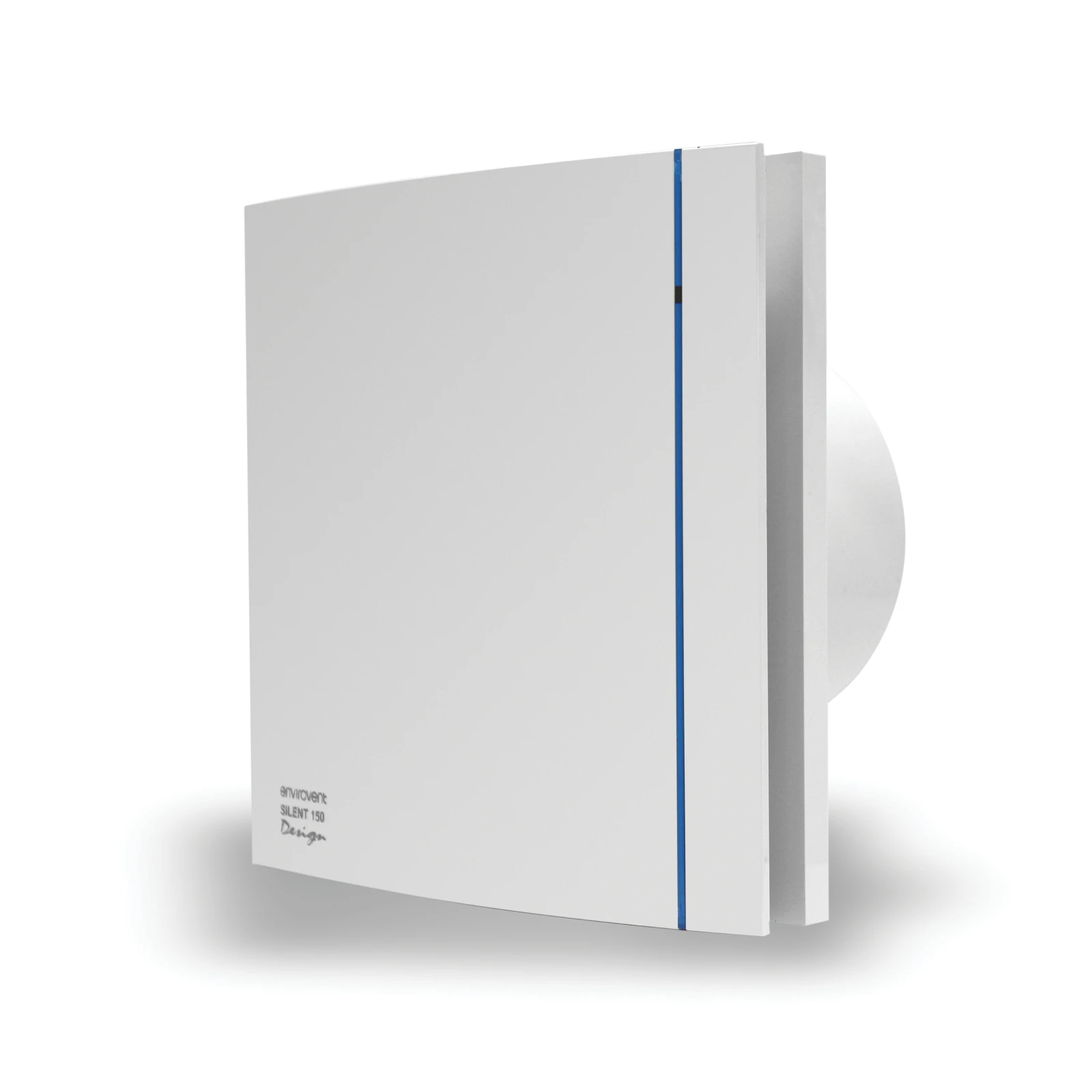

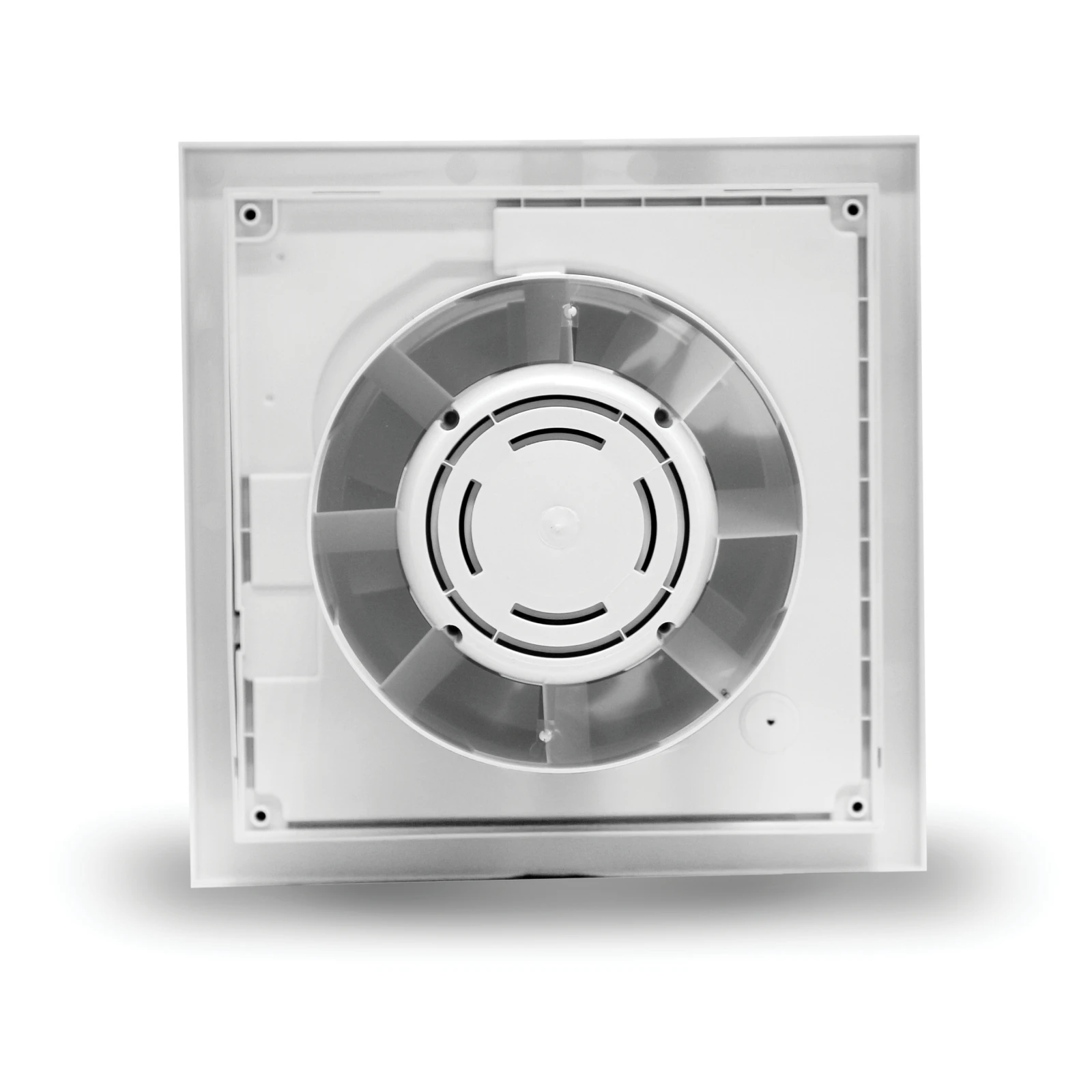

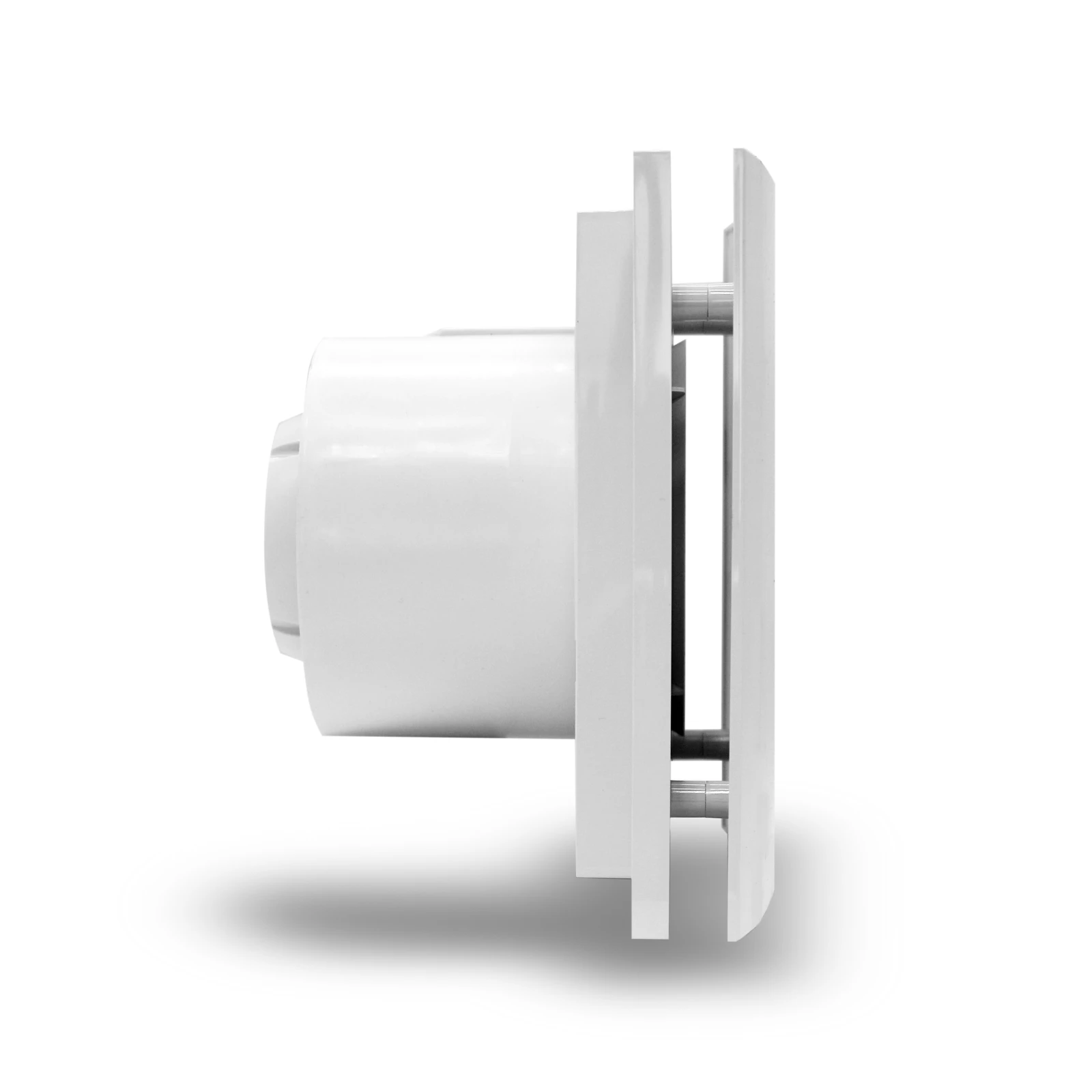

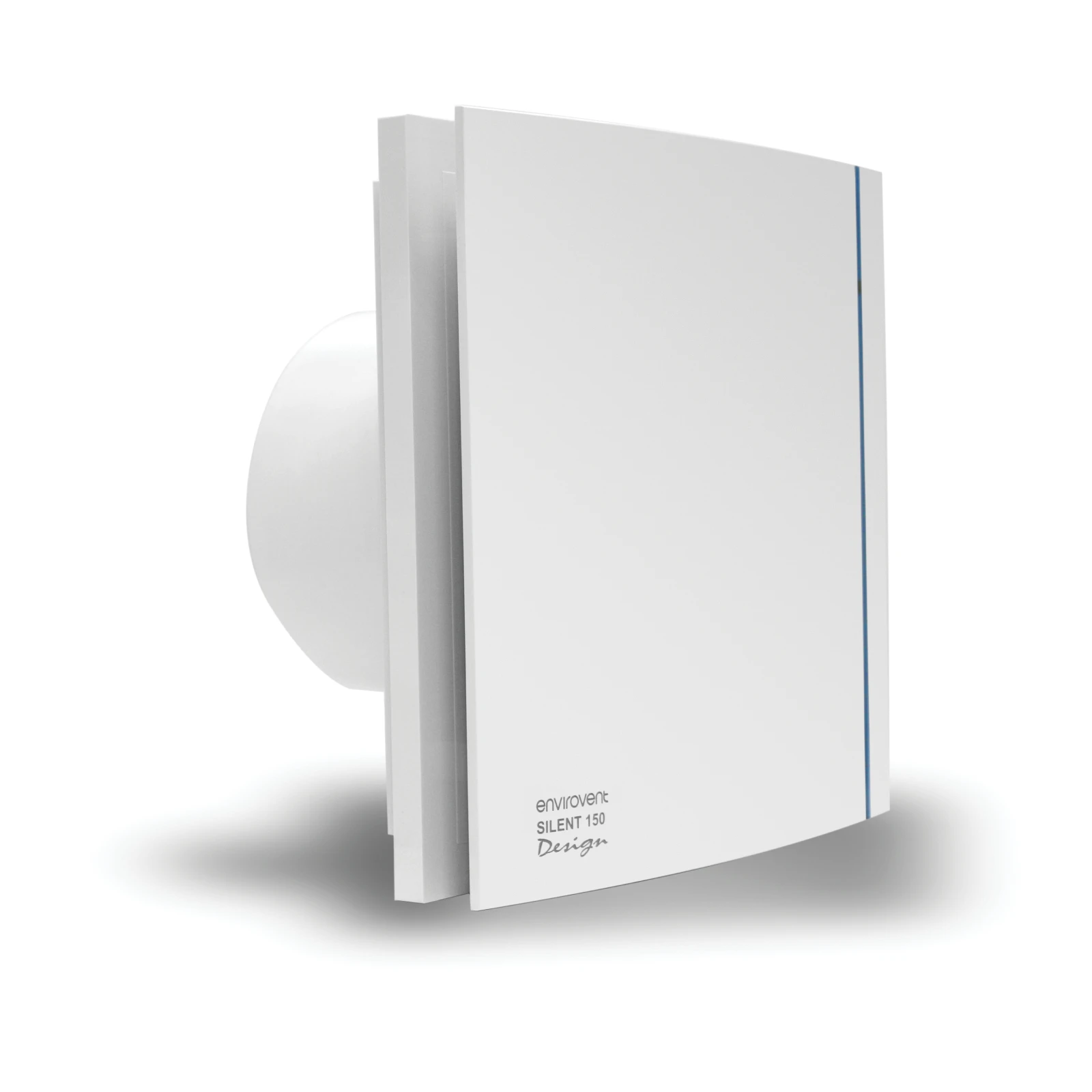

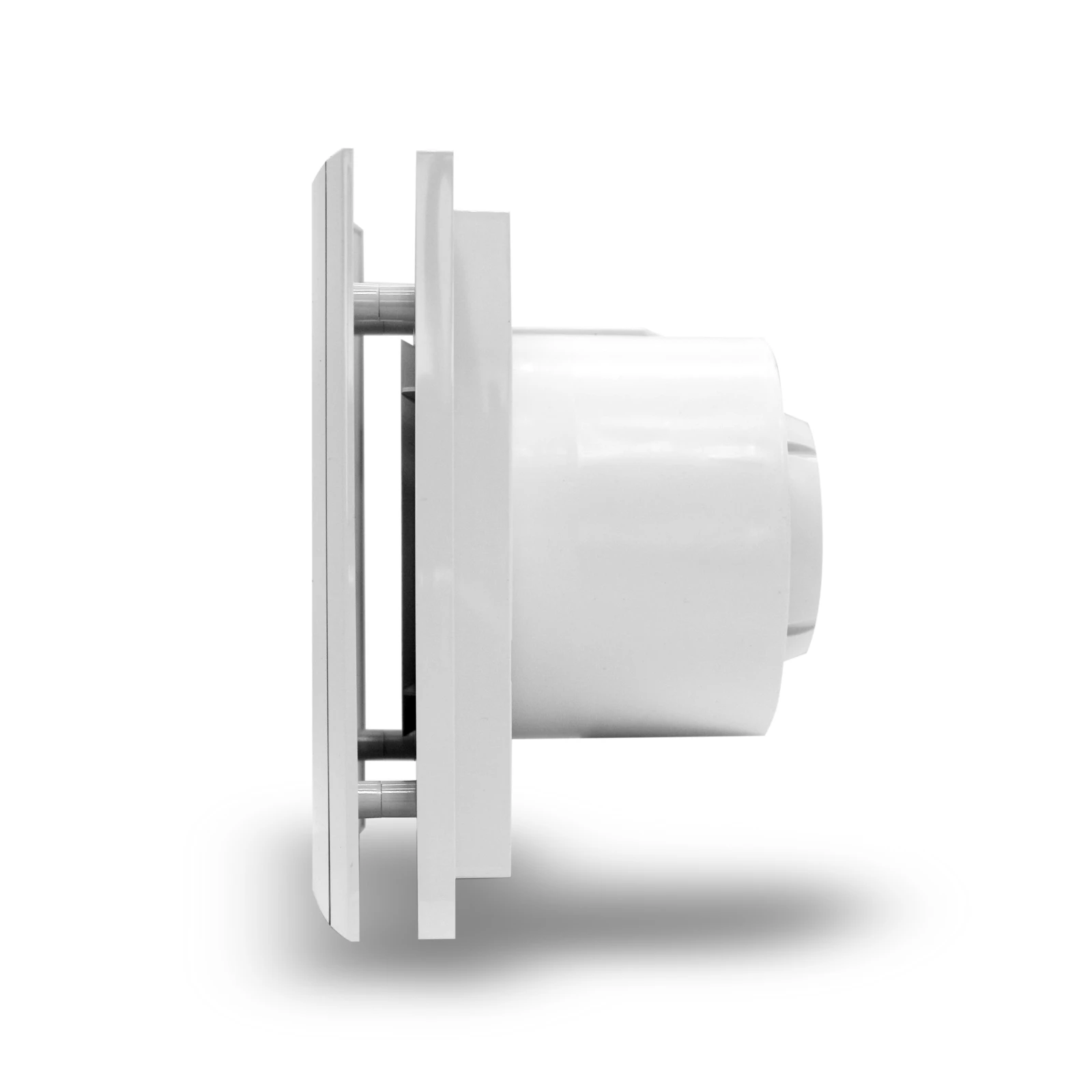

The SILENT DESIGN 150 is a stylish 150mm domestic axial extractor fan that comes with a stylish solid facia that is suitable for wall or ceiling installations, designed to solve ventilation problems in kitchens and utility rooms. The extractor fans are fitted with motors mounted on silent elastic blocks; the range is incredibly quiet running and delivers exceptional airflow performance. Fitted with a pilot light, backdraught shutter and airflow guide vanes as standard to improve pressure development and performance. This range is available with optional features including adjustable over-run timer, adjustable humidity sensor, pullcord. This range also has the SILDES150X which boasts an even higher airflow performance for where longer ducting may be required.

Key Features

High Airflow Performance

Max Airflow 69 l/s

Adjustable Humidity Sensor

Adjustable Between 60% - 90%

Adjustable Over-run Timer

Adjustable Between 1 - 30 Minutes.

Pullcord Models Available

Backdraught Shutter

Prevents Air Entry and Reduces Heat Leakage

Interchangeable Colour Bars

Blue, Red, Green and Yellow

The 'X' Model

Higher Max Airflow 83 l/s

Product Overview

Max Airflow (l/s)

69 or 83

Ducting / Connection Size (mm)

150

Warranty

5

IP Rating

IP45

Request a Quote Find a Stockist
Request a Design Service
CONFIG ON EasyVent

Key Features

  • High Airflow Performance

    This range of fans delivers higher airflow performance making it suitable for more applications such as utility rooms.

  • Adjustable Humidity Sensor

    Adjustable humidity sensor that can be adjusted between 60 - 90% relative humidity. The extract fan will continue to run until the selected level of relative humidity has been reached.

  • Adjustable Over-run Timer

    Over-run timer that can be adjusted between 1 - 30 minutes. This means the fan will continue to run after being switched off to ensure humidity is reduced.

  • Pullcord Models Available

    Pullcord model available for customers that cannot connect the unit to a switch. The pullcord is used to turn the fan on and off as and when required.

  • Backdraught Shutter

    Backdraught shutter comes as standard, this prevents air entry and limits heat leakage when the fan is not operating.

  • Interchangeable Colour Bars

    Each fan comes with 4 interchangeable colour bars, so it can be modified to to suit your preference.

  • The 'X' Model

    The 'X' model has an increased airflow rate making it perfect for those scenarios where more air is required, such as longer duct runs.

Product Documents

Product Codes

Product CodeProduct Description
SILDES150SStandard
SILDES150PPullcord
SILDES150TAdjustable Over-run Timer
SILDES150HTAdjustable Humidity Sensor, Adjustable Over-run Timer
SILDES150HTPAdjustable Over-run Timer, Adjustable Humidity Sensor, Pullcord
SILDES150XStandard with Increased Airflow Performance
