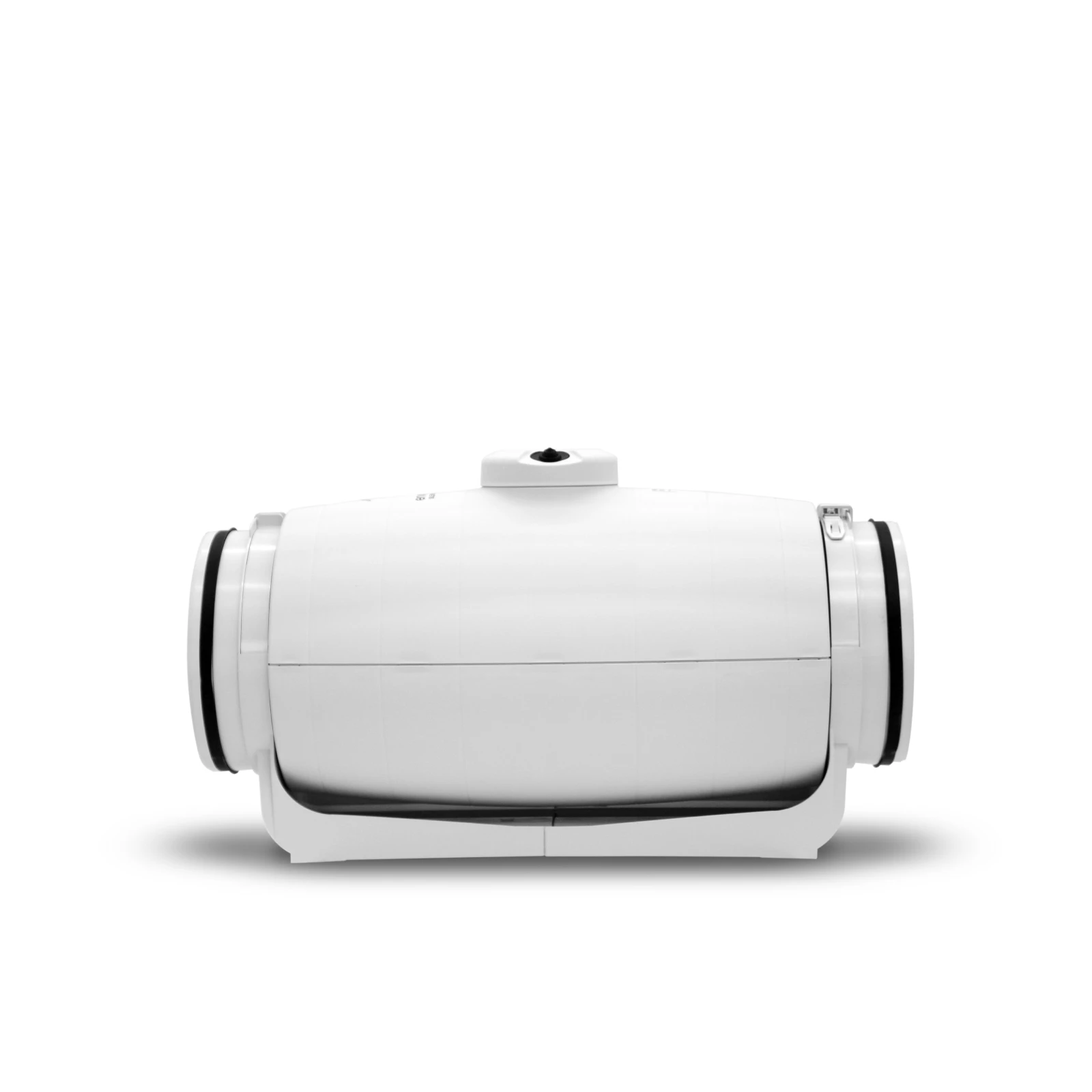

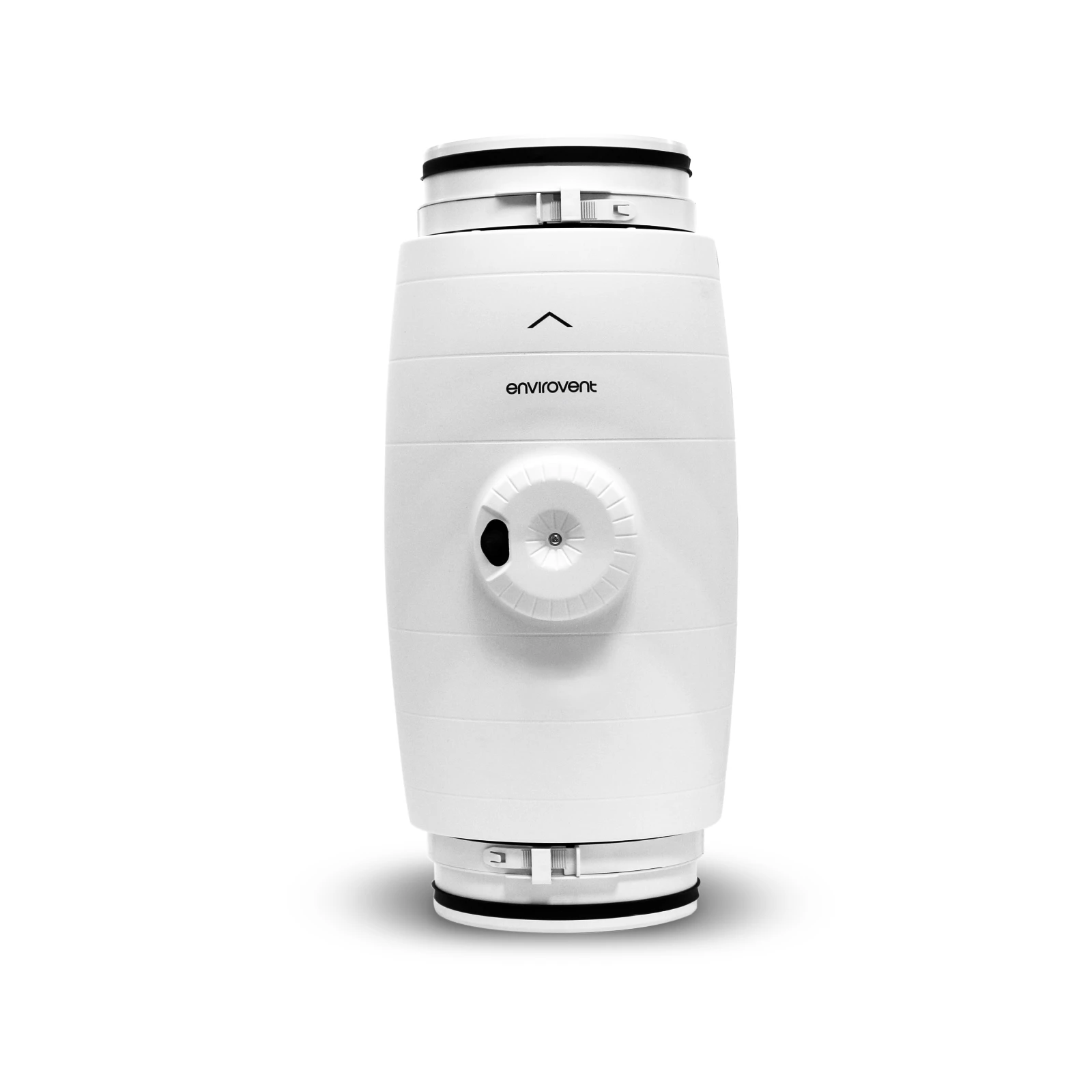

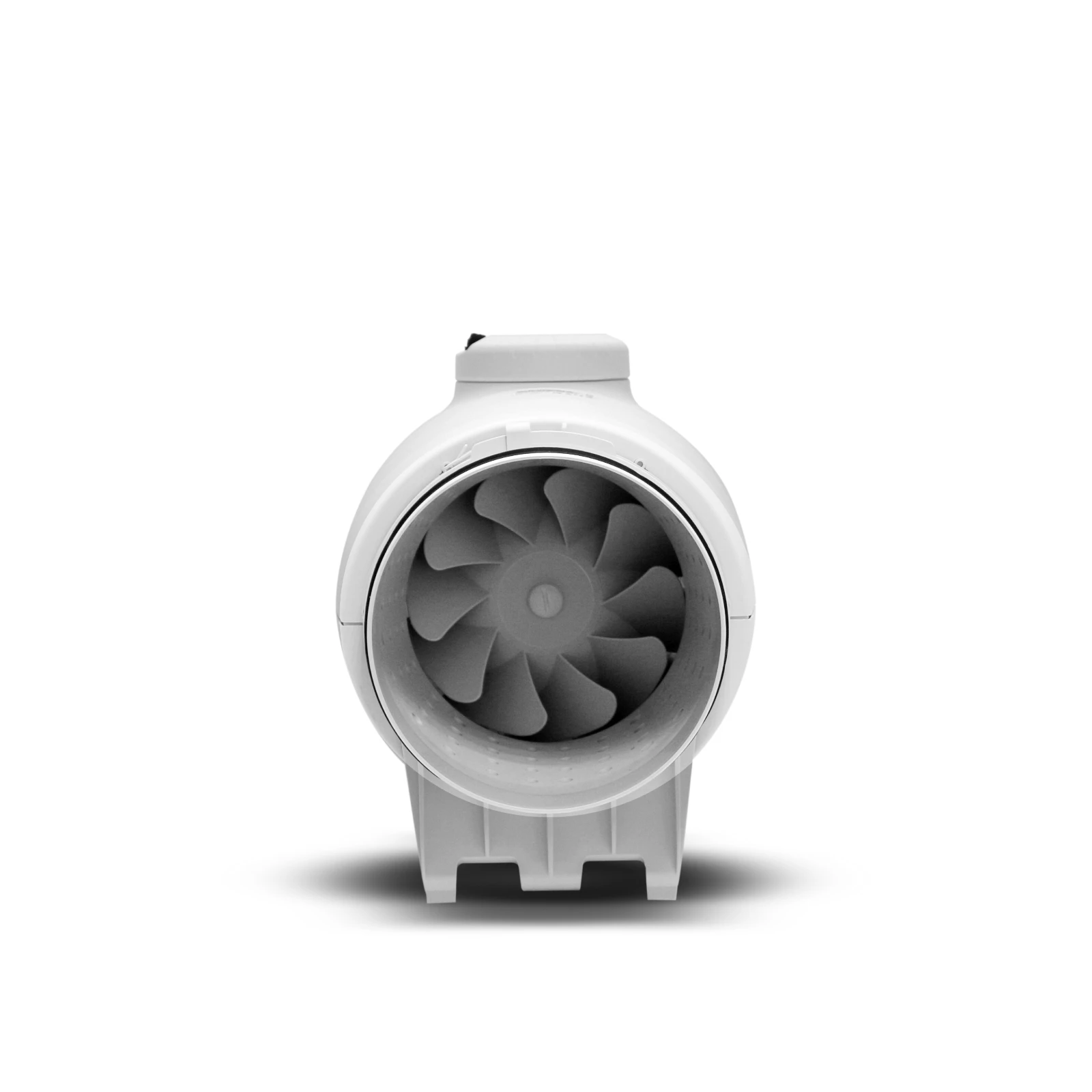

SILENT MV ECOWATT

SILENT MV ECOWATT are silent continuous running mixed flow inline fans designed to extract or supply air and solve ventilation problems for ducted systems. The range comprises of 6 diameters and covers a wide airflow range from 97 - 461 l/s. They are a low profile Mixed-flow fan that provide high airflows and extremely low noise levels. Each fan has been carefully constructed to keep sound to a minimum; they have a specifically designed internal skin that directs sound waves at a right angle so they can be captured by a sound absorbent material. As well as being extremely quiet SILENT MV ECOWATT can also provide extremely high airflows, making them the perfect solution for any scenario ranging from bathroom extraction, overheating and commercial jobs.

Key Features

Silent Running

Constructed with Sound Absorbent Material

Continuous Running

Energy Efficient

Easy Maintenance

Removable Fan Body

100% Adjustable Airflow

Low Profile

0-10V Input

Connect Environmental Sensors and Speed Controllers

Flexible Installation

Extract or Supply

Easy Wiring and Installation

Rotating Connection Box

Product Overview

Max Airflow (l/s)

97 - 461

Ducting / Connection Size (mm)

100, 125, 150, 200, 250, 315

Warranty

5

IP Rating

IP44

Request a Quote Find a Stockist
Request a Design Service

Key Features

  • Silent Running

    The unique perforated design of the casing directs sound waves into the high density sound absorbent material to prevent air leakage and minimise noise.

  • Continuous Running

    As well as providing ventilation non-stop the continuous function of the fan also provides a significant energy saving compared to intermittent counterparts.

  • Easy Maintenance

    The unique design of the support bracket allows the main fan body assembly to be fitted and removed without dismantling the adjacent ducting.

  • 100% Adjustable Airflow

    Fan speed is 100% adjustable via the potentiometer in the connection box or via external controller such as REB-ECOWATT.

  • Low Profile

    Compact design makes the SILENT MV ECOWATT suitable for a variety of installations especially where space is limited.

  • 0-10V Input

    All SILENT MV ECOWATT units have a 0-10V input allowing additonal controls and sensors such as AirSens® to be connected.

  • Flexible Installation

    SILENT MV ECOWATT can be used for a variety of applications, they can be used to either extract or supply air, by simply swapping the fan body around. This makes this range particularly useful for residential or commercial applications.

  • Easy Wiring and Installation

    Connection box can be rotated 360° to enable the power cable to be easily connected to the unit.

Product Documents

Product Codes

Product CodeProduct Description
SILMV350/100-125 ECOContinuous Running, Inline, Ø125mm
SILMV500/150 ECOContinuous Running, Inline, Ø150mm
SILMV1000/200 ECOContinuous Running, Inline, Ø200mm
SILMV1300/250ECOContinuous Running, Inline, Ø250mm
SILMV2000/315 ECOContinuous Running, Inline, Ø315mm
