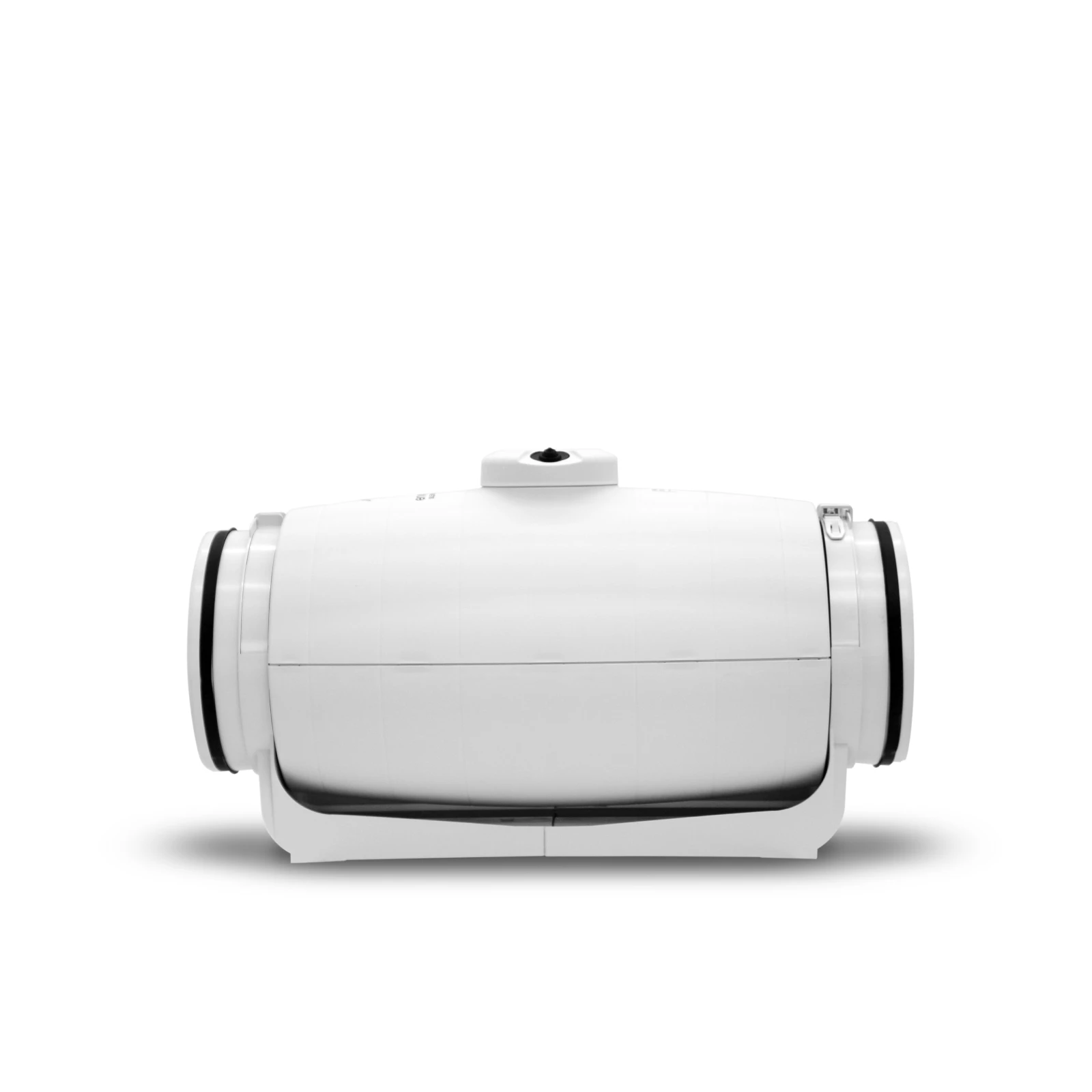

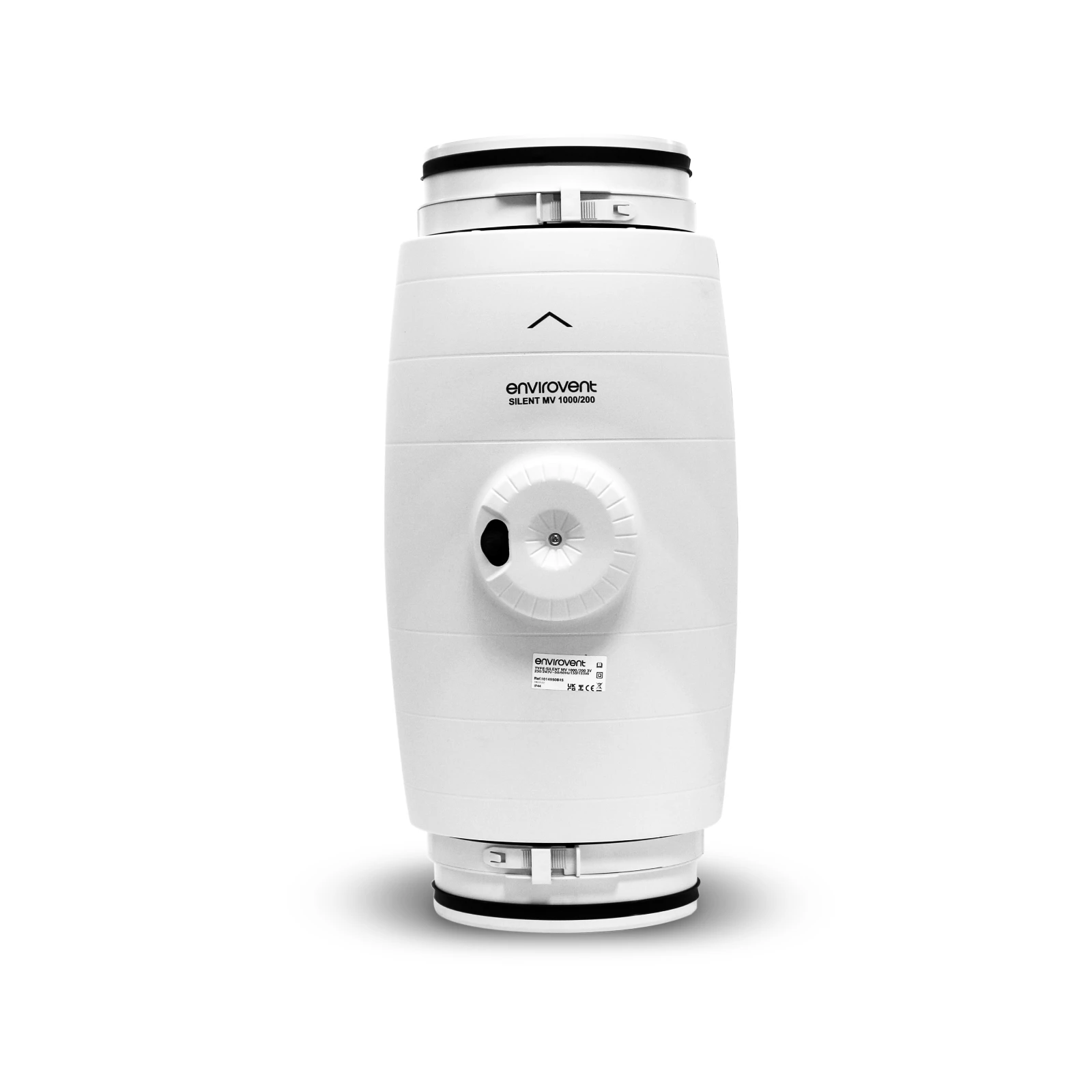

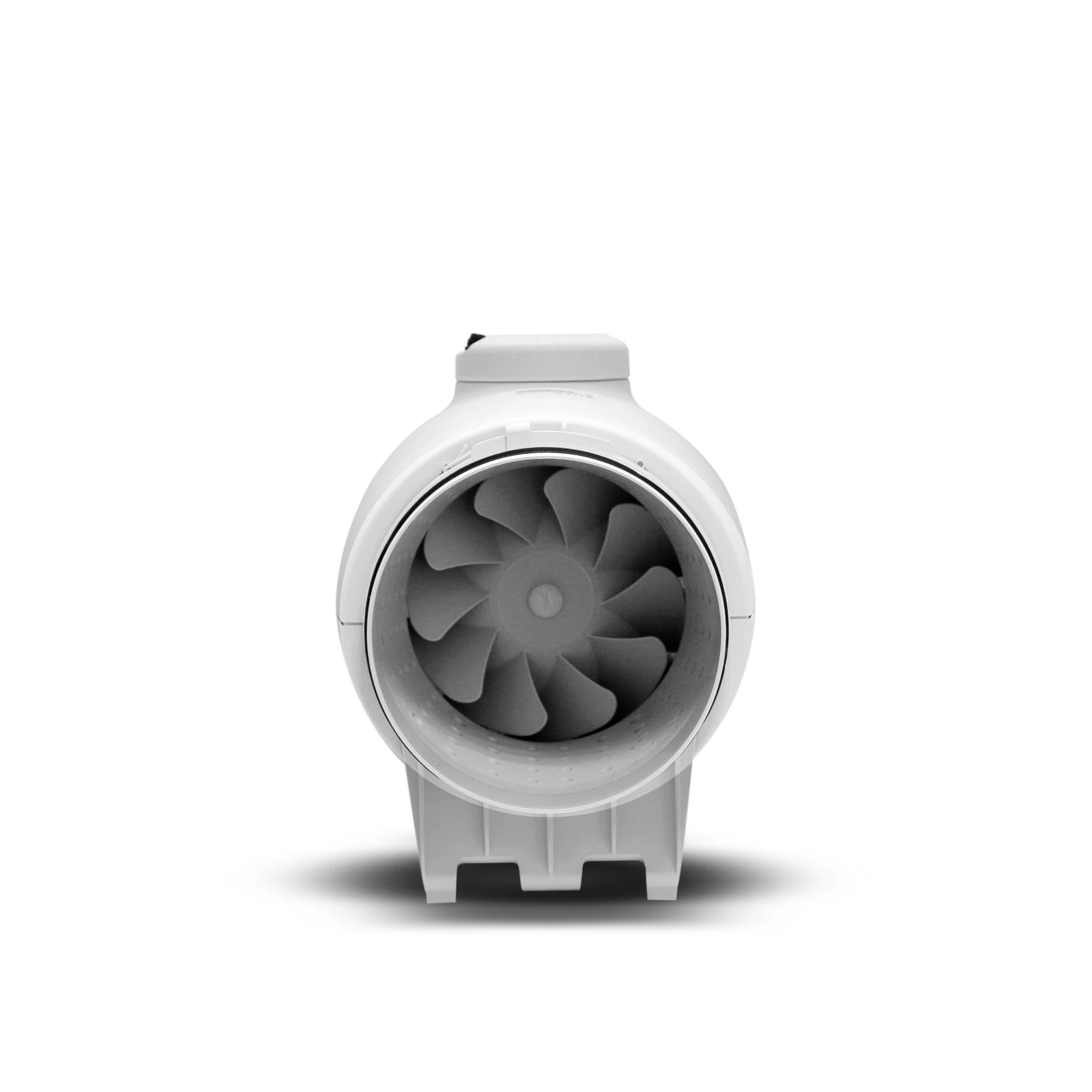

SILENT MV

SILENT MV are silent running mixed flow inline fans designed to extract or supply air and solve ventilation problems for ducted systems. The range comprises of 6 diameters and covers a wide airflow range from 42 - 492 l/s. They are a low profile “Mixed-flow” fan that provide high airflows and extremely low noise levels. Each fan has been carefully constructed to keep sound to a minimum; they have a specifically designed internal skin that directs sound waves at a right angle so they can be captured by a sound absorbent material. As well as being extremely quiet SILENT MV can also provide extremely high airflows, making them the perfect solution for any scenario ranging from bathroom extraction, overheating and commercial jobs.

Key Features

Silent Running

Constructed with Sound Absorbent Material

Overheating Solution

Approved Document O

Easy Maintenance

Removable Fan Body

Over-run Timer Models Available

Adjustable Between 1 - 30 minutes

Low Profile

0-10V Input

Connect Environmental Sensors and Speed Controllers

Flexible Installation

Extract or Supply

Easy Wiring and Installation

Rotating Connection Box

Product Overview

Max Airflow (l/s)

42 - 492

Ducting / Connection Size (mm)

100, 125, 150, 160, 200, 250

Warranty

5

IP Rating

IP44

Request a Quote Find a Stockist
Request a Design Service
CONFIG ON EasyVent

Key Features

  • Silent Running

    The unique perforated design of the casing directs sound waves into the high density sound absorbent material to prevent air leakage and minimise noise.

  • Overheating Solution

    SILENT MV are a great option to combat overheating, they combine high airflow performance with extremely low sound levels which is ideal for issues in individual habitable rooms. As well as the performance they are low compact and can fit in ceiling voids meaning wall extract fans are not required. Many sizes in this range make it easier to find the right one for the application.

  • Easy Maintenance

    The unique design of the support bracket allows the main fan body assembly to be fitted and removed without dismantling the adjacent ducting.

  • Over-run Timer Models Available

    Over-run timer that can be adjusted between 1 - 30 minutes. This means the fan will continue to run after being switched off. Particularly helpful when extracting from wet rooms. Timer versions are 1 or 3 speed model depending.

  • Low Profile

    Compact design makes the SILENT MV suitable for a variety of installations especially where space is limited.

  • 0-10V Input

    All SILENT MV units have a 0-10V input allowing additonal speed controls and environmental sensors such as AirSens® to be connected.

  • Flexible Installation

    SILENT MV can be used for a variety of applications, they can be used to either extract or supply air, by simply swapping the fan body around. This makes this range particularly useful for residential or commercial applications.

  • Easy Wiring and Installation

    Connection box can be rotated 360° to enable the power cable to be easily connected to the unit.

Product Documents

Product Codes

Product CodeProduct Description
SILMV160/100SStandard, Inline, Ø100mm, Two Speed
SILMV160/100TAdjustable Timer, Inline, Ø100mm, Single Speed
SILMV250/100Standard, Inline, Ø100mm, Two Speed
SILMV250/100TAdjustable Timer, Inline, Ø100mm, Single Speed
SILMV350/125Standard, Inline, Ø125mm
SILMV350/125TAdjustable Timer, Inline, Ø125mm
SILMV500/150-160Standard, Inline, Ø150-160mm
SILMV500/150TAdjustable Timer, Inline, Ø150mm
SILMV800/200Standard, Inline, Ø200mm
SILMV800/200TAdjustable Timer, Inline, Ø200mm
SILMV1000/200Standard, Inline, Ø200mm
SILMV1000/200TAdjustable Timer, Inline, Ø200mm
SILMV1300/250Standard, Inline, Ø250mm
