energiSava® 200

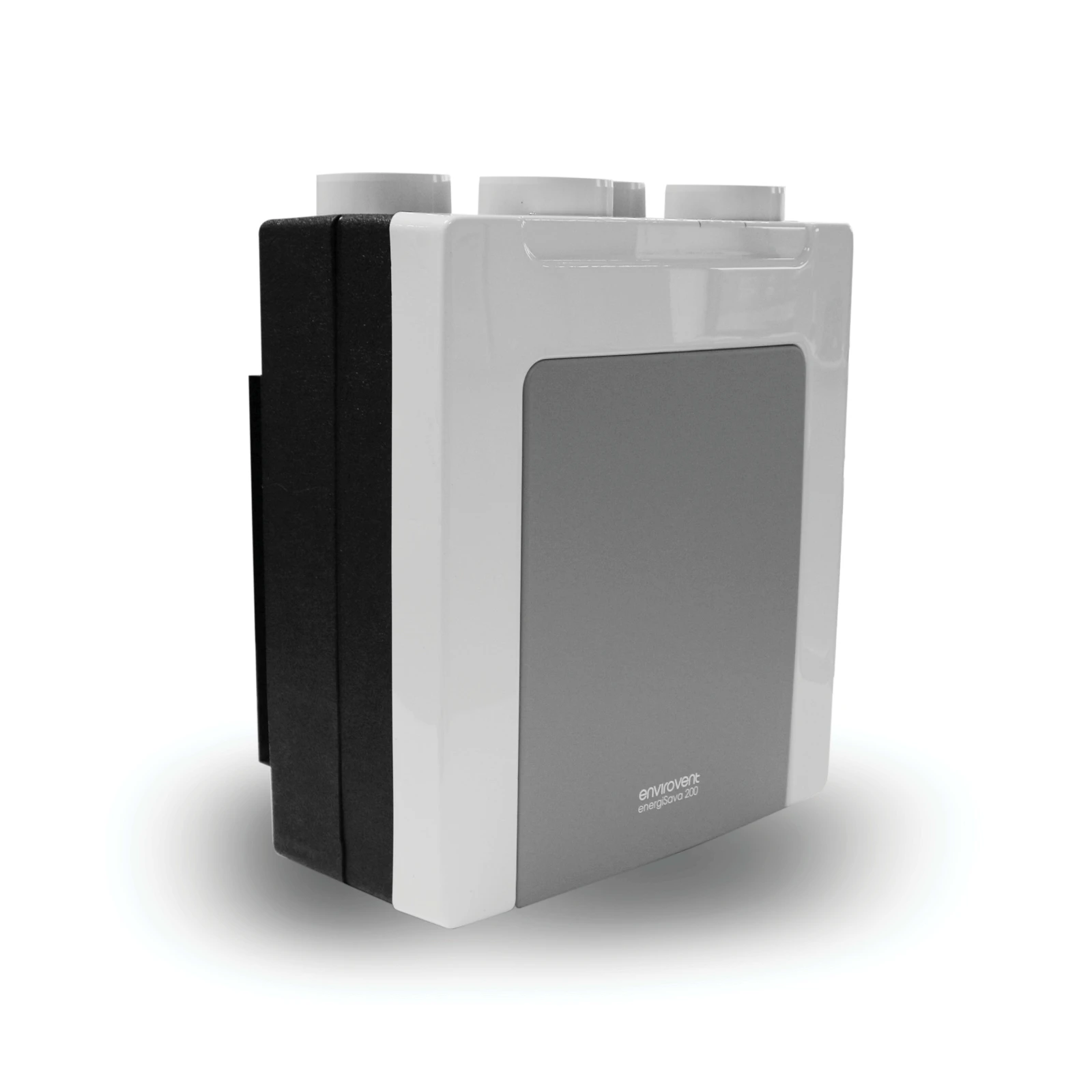

The energiSava® 200, a mechanical ventilation with heat recovery unit, incorporates a powerful backward curved EC motor, mechanical summer bypass and delivers exceptional performance within a compact unit. Ideal for medium to larger sized houses with kitchen plus 7 additional wet rooms the stylish little energiSava® 200 achieves a maximum airflow of 241m3/h (67l/s) and a high maximum system pressure in excess of 500Pa.
Key Features
Low Specific Fan Power (SFP)
Down to 0.75 W/l/s
High Airflow Performance
Max Airflow 67 l/s
High Thermal Efficiency
Up to 90%
Easy Installation
Compact and Lightweight Unit - Only 14kg
Wireless Three Speed Controller
Intellitrac Relative Humidity Control
No User Interaction Required
Manufactured in the UK
Easy commissioning
Product Overview
Max Airflow (l/s)
67
Ducting / Connection Size (mm)
125
Warranty
2
IP Rating
IPX2
SAP PCDB Listed
Yes
Passivhaus Certified
No
Key Features
Low Specific Fan Power (SFP)
Low Specific Fan Power (SFP) down to 0.75W/l/s showing high levels of efficiency with less energy being consumed during use.
High Airflow Performance
67l/s maximum airflow, ideal for small-medium sized properties.
High Thermal Efficiency
High efficiency counter flow heat cell capable of achieving up to 90%, helping ensure heating costs are kept to a minimum.
Easy Installation
Compact and lightweight unit weighing only 14kg, designed for single person installation and protruding from a wall no more than 360mm.
Wireless Three Speed Controller

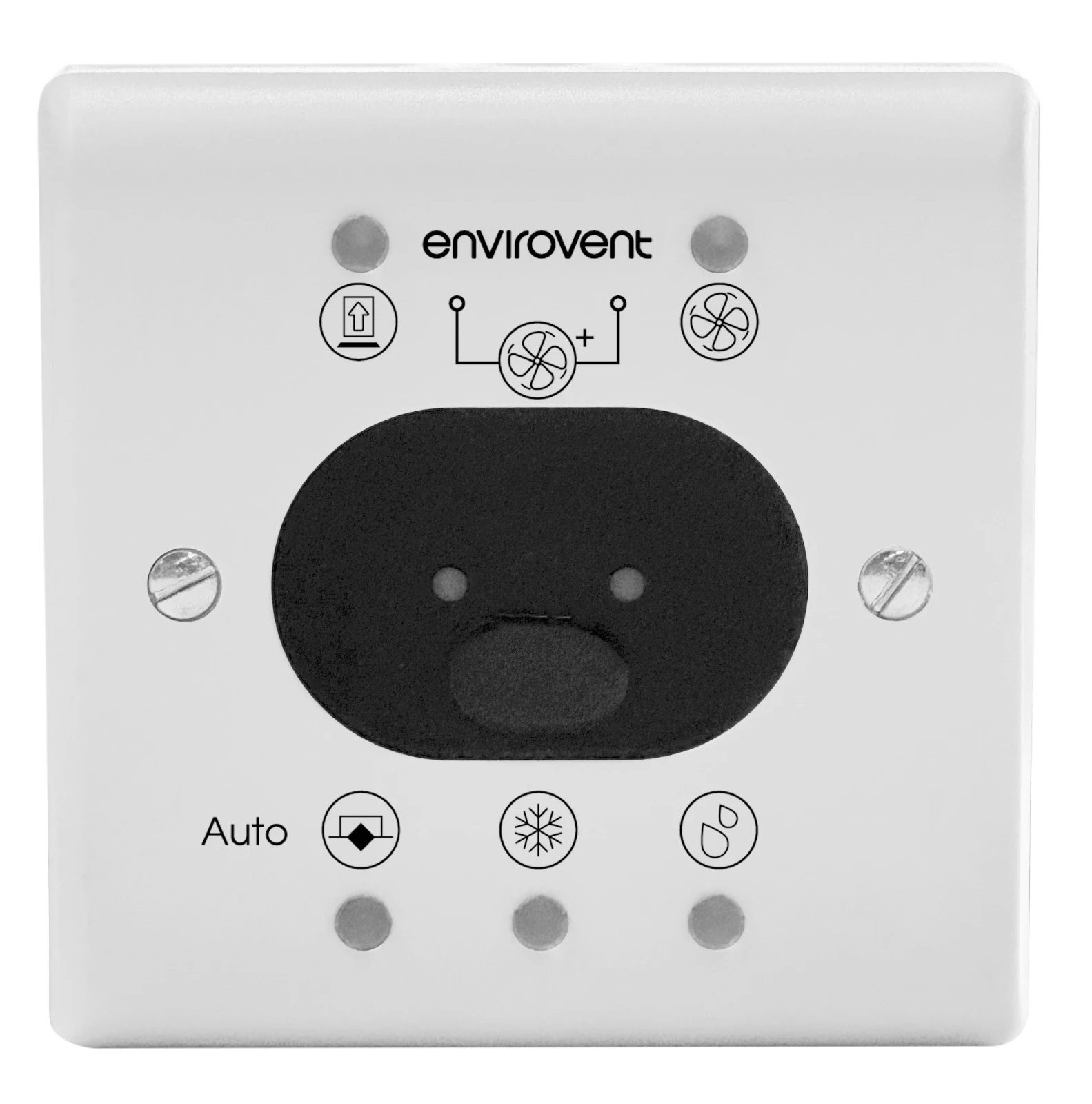

Three speed wireless controller as standard to adjust airflow speeds, display the mode of operation and filter change/fault indicator.
Intellitrac Relative Humidity Control
Intellitrac is a unique intelligent vapour tracking control that constantly monitors the humidity levels within the wet room. As humidity rises and falls, the motor speed rises and falls in direct correlation, this ensures humidity levels do not increase. This feature runs constantly in the background meaning the end user does not need to interact with the unit.
Manufactured in the UK
Manufactured in envirovent's® on-site factory in Harrogate, North Yorkshire
Easy commissioning
Easy commissioning via push button control pad or via the Myenvirovent app (model depending).
Product Documents
Product Codes
| Product Code | Product Description |
|---|---|
| ESAVA200 | Wall Mounted, Right-hand Configuration |
| ESAVA200-L | Wall Mounted, Left-hand Configuration |
| ESAVA200C | Ceiling Mounted, Right-hand Configuration |
| ESAVA200C-L | Ceiling Mounted, Left-hand Configuration |
| ESAVA200A | Wall Mounted, App Enabled, Right-hand Configuration |
| ESAVA200A-L | Wall Mounted, App Enabled, Left-hand Configuration |
| ESAVA200CA | Ceiling Mounted, App Enabled, Right-hand Configuration |
| ESAVA200CA-L | Ceiling Mounted, App Enabled, Left-hand Configuration |
energiSava® 200
Frequently Asked Questions
The energiSava® 200 can either be controlled via a wireless three-speed controller or via the app version of the unit which can work with the myenviroventapp. The order codes show the different control options available.
The energiSava® 200 can be wall or ceiling mounted depending upon the requirements of the installation.

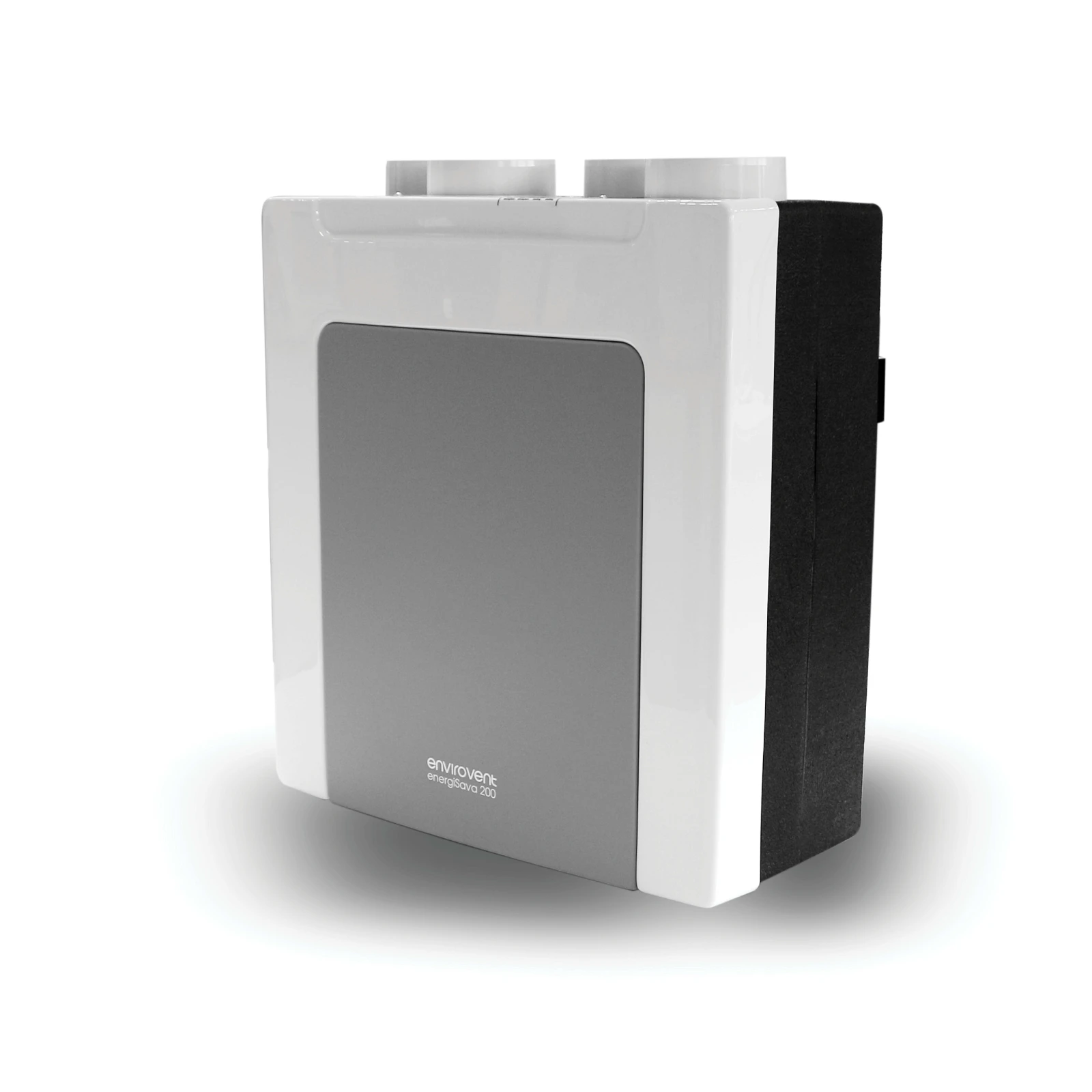

The energiSava® 200 is available as both right and left handed giving ultimate flexibility for unit placement, drainage and airflow direction. Diagrams and further information can be found within the installation guide.
The energiSava® 200 has a mechanical summer bypass as standard, ensuring that during periods of warm weather that the airflow is able to bypass the heat cell, keeping the property comfortable.
The energiSava® 200 comes as standard with Intellitrac humidity tracking, a unique feature that continuously monitors the humidity levels in the property and automatically adjusts the extract airflow to suit.
The energiSava® 200 comes as standard with frost protection via airflow imbalance.
In periods of extremely cold weather, the supply airflow will switch off to both protect the internal workings of the unit and provide a comfortable environment before switching back on when temperatures increase.
The energiSava® 200 comes with a 2-year warranty as standard for peace of mind, saving time, money and hassle.
The energiSava® 200 comes with two ISO Coarse 45% filters as standard.
The energiSava® 200 is up to 90% energy efficient and is suitable for kitchens plus four additional wet rooms.
